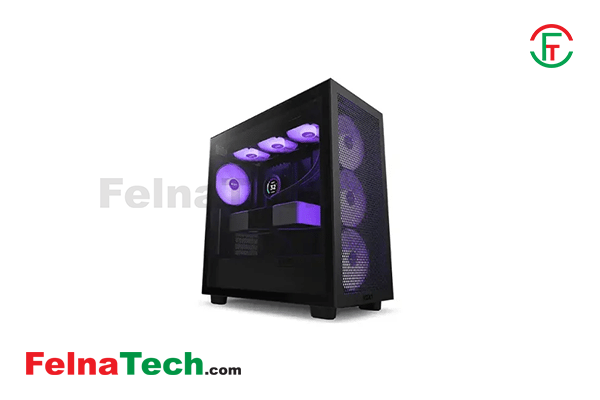

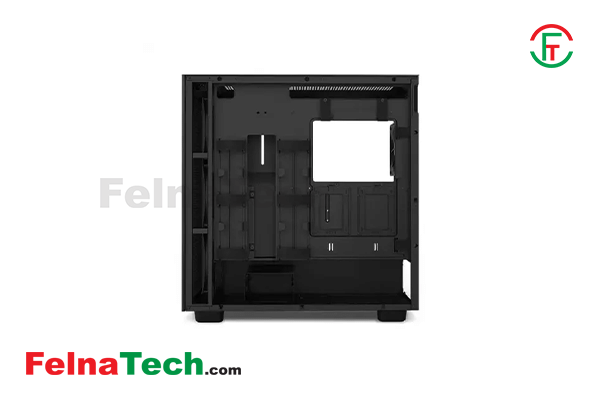

NZXT H7 Flow RGB ATX Mid-Tower Casing - Black

Brand: NZXT

Title: NZXT H7 Flow RGB ATX Mid-Tower Casing - Black

Model: H7-FLOW-RGB

Code: 127820019

Category: Component

Sub Category: Casing

Sub-Sub Category: NZXT

Price: 17499

Offer Status: 0

Description:

General

Model: H7 Flow RGB
Model Number: CM-H71FB-R1
Type: Mid-Tower
Color: Black

Key Specs

Motherboard Support: Mini-ITX, Micro-ATX, ATX
Enclosure Type: Mid-Tower
Case Material (Black): SGCC Steel, Dark Tinted Tempered Glass

Compatibility & Clearance

Max CPU Cooler Clearance: Up to 185mm
Max GPU Clearance: Up to 400mm
Front Radiator Clearance: 60mm
Top Radiator Clearance: 30mm
Cable Management: 18-22mm
PSU Clearance: Up to 200mm

Expansion Slots

Standard: 7
Vertical: 0

Drive Bays

2.5": 4+2
3.5": 2

Fan Support

Front: 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included)
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included)
Filters: All Air Intakes

Fan Specs

Model: F140 RGB Core Fan (Case Version)
Speed: 1200 ± 120 RPM
Airflow: 61.74 CFM
Static: 2.06mm-H2O
Noise: 29.05 dBA
Fan Connector: 3-pin

Model: F120Q (Case Version)
Speed: 1200 ± 240RPM
Airflow: 62.18 CFM
Static: 1.05 mm - H2O
Noise: 25.1 dBA
Fan Connector: 3-pin


Fans Included

Includes 3x pre-installed F140 RGB Core fans & 1x F120Q Quiet Airflow fan

Radiator Support

Front: Up to 360mm with Push/Pull
Top: Up to 360mm
Rear: Up to 140mm

Front I/O Ports

USB 3.2 Gen 1 Type-A: 2
USB 3.2 Gen 2 Type-C: 1
Headset Audio Jack: 1

Inside the Box

H7 Flow Case with fans (see specs): 1
F140 RGB Core Fan (pre-installed): 3
F120Q Airflow Fan (pre-installed): 1
Installation Accessories: 1
Manual: 1

Weight & Dimensions

Height (With Feet): 505mm
Height (Without Feet): 480mm
Width: 230mm
Depth: 480mm
Weight: 10.57kg
