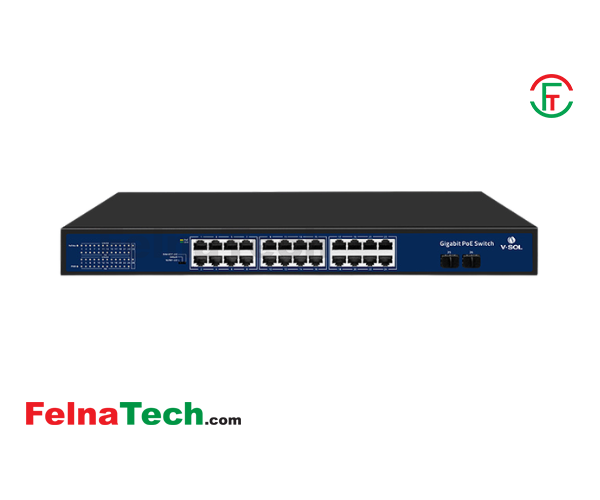

V-SOL V1124-2S-P1 24-Port Unmanaged Gigabit PoE Switch

Brand: Switch / VSOL

Title: V-SOL V1124-2S-P1 24-Port Unmanaged Gigabit PoE Switch

Model: V1124-2S-P1

Code: 216446906

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 20300

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1124-2S-P1 24-Port Unmanaged Gigabit PoE Switch

Technical Specifications:

Model: V1124-2S-P1

Type: Unmanaged Gigabit PoE Switch
Network Interfaces: 24 × 10/100/1000 Mbps Gigabit PoE Ports (RJ45) + 2 × Gigabit SFP Uplink Ports
PoE Capabilities: Intelligent PoE Power Supply | Total PoE Budget up to 400W
Switching Capacity: 52 Gbps
Throughput: 38.68 Mpps
Packet Buffer: 4M
MAC Address Table: 8K
Transfer Mode: Store and Forward
LED Status Indicators: Power (PWR), Link/Activity (ACT), 1000M Speed Link, PoE Status

Physical Specs: Heavy-duty Metal Chassis | 1U 19-Inch Rackmount Standard Design | Weight: ~3.55 kg | Dim: 440 × 280 × 44 mm

Power Supply: Internal Power Supply | Machine Power Consumption: 400W (Max)

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

24 Full Gigabit PoE Ports: Equipped with 24× 10/100/1000 Mbps auto-adaptive RJ45 ports that support high-power PoE devices, ensuring blazing-fast data transfer and power delivery simultaneously.

Dual Gigabit SFP Uplinks: Features 2 dedicated Gigabit SFP slots for long-distance, high-bandwidth fiber optic uplinks to connect seamlessly with backbone networks or OLTs.

Massive 400W PoE Budget: Delivers a robust 400W overall power supply, intelligently distributing power to connected IP cameras, wireless access points, and VoIP devices.

True Plug-and-Play Setup: As an unmanaged switch, it requires absolutely zero configuration or technical setup. Simply plug in your network cables and devices for instant operation.

Enterprise-Grade Performance: Boasts a 52 Gbps switching capacity and 38.68 Mpps packet forwarding rate, completely eliminating network bottlenecks during heavy data workloads.

Super Cache & Smart Buffering: Packed with a generous 4M packet buffer to ensure smooth, lag-free transmission of high-definition 4K surveillance video streams and live multimedia feeds.

Ultra-Long Distance Transmission: Supports intelligent long-distance mode to extend data and power transmission, making it perfect for sprawling surveillance networks.

Rugged 1U Rackmount Chassis: Housed in a durable, standard 1U 19-inch metal casing that easily fits into network server racks, providing efficient heat dissipation and prolonged lifecycle stability.

The V-SOL V1124-2S-P1 is a high-performance, high-capacity 24-Port Unmanaged Gigabit PoE Switch engineered specifically for enterprise networks, SMBs, and professional IP security surveillance deployments across Bangladesh. Built to deliver rock-solid reliability without the hassle of complex management, this switch combines 24 full-speed Gigabit PoE ports with 2 dedicated SFP fiber uplinks, allowing system integrators and local ISPs to deploy high-bandwidth network expansions effortlessly.

With an impressive 400W total PoE budget and standard 1U rackmount architecture, the V1124-2S-P1 is a definitive "set-and-forget" hardware solution. Whether you are powering a massive network of high-definition IP cameras, deploying centralized Wi-Fi access points across an office building, or expanding a corporate network backbone, this switch offers the ideal balance of ultra-fast throughput, heavy-duty durability, and plug-and-play simplicity.
