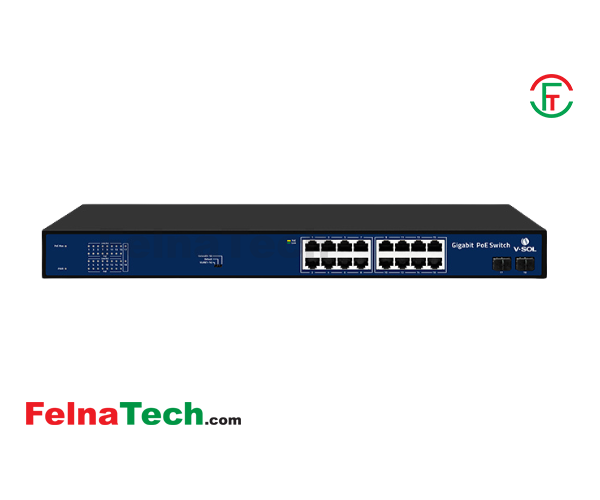

V-SOL V1116-2S-P1 16-Port Unmanaged PoE Switch

Brand: Switch / VSOL

Title: V-SOL V1116-2S-P1 16-Port Unmanaged PoE Switch

Model: V1116-2S-P1

Code: 216446905

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 17000

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1116-2S-P1 16-Port Unmanaged PoE Switch

Technical Specifications:

Model: V1116-2S-P1

Interface: 16 × 10/100 Mbps RJ45 Ports (PoE) + 2 × 10/100/1000 Mbps SFP Uplink Slots
PoE Standard: IEEE 802.3af / IEEE 802.3at (Auto-sensing)
PoE Budget: Total 200W Maximum Power Supply (Up to 30W per PoE port)
Transmission Distance: Standard Mode: Up to 100m | Extend Mode: Up to 250m (at 10 Mbps)
Switching Capacity: 7.2 Gbps Line-rate Forwarding Architecture
Packet Forwarding Rate: 5.36 Mpps
MAC Address Table: 4K Entries with Auto-Learning and Auto-Aging
Lightning Protection: 4KV Common Mode Protection per Port
LED Status Indicators: Power, Link/Act, PoE Status, SFP Uplink Activity

Physical Specs: Durable Metal Enclosure | Desktop & Rack-mountable Design | Internal Power Supply

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

High-Density PoE Powering: Features 16 dedicated 10/100 Mbps Ethernet ports supporting IEEE 802.3af/at standards, delivering up to 30W per port with a generous 200W total power budget.

Dual Gigabit SFP Uplinks: Equipped with 2 dedicated 1000 Mbps SFP slots, providing high-bandwidth backbone connectivity to core networks, NVRs, or servers without creating data bottlenecks.

Ultra-Extended Range Mode: Built-in hardware switch supports an 'Extend Mode' that allows data and power transmission over standard Cat5e/Cat6 cables up to a distance of 250 meters—perfect for expansive IP camera deployments.

Zero-Configuration Plug & Play: As an unmanaged switch, it requires absolutely no software, setup, or technical configuration. Simply plug it in, connect your devices, and it’s ready to operate.

Intelligent Power Management: Automatically detects the power requirements of connected Powered Devices (PDs) to prevent damage to non-PoE network equipment.

One-Key VLAN Isolation: Includes an isolation toggle switch that isolates the 16 downstream PoE ports from each other, effectively eliminating broadcast storms and enhancing network security.

Industrial-Grade Reliability: Encased in a rugged, heat-dissipating metal chassis with professional 4KV lightning/surge protection to ensure stable operation even in harsh environmental conditions.

Fanless Silent Operation: Engineered with an efficient cooling design that eliminates noisy internal fans, making it ideal for quiet office settings or smart home setups.

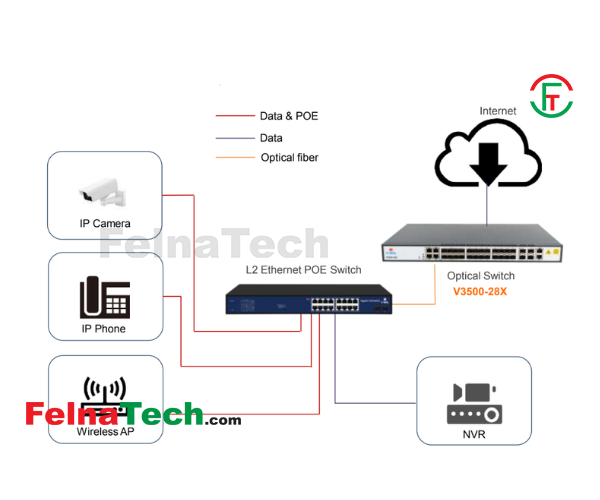

The V-SOL V1116-2S-P1 is a high-performance, cost-effective, and highly reliable 16-Port Unmanaged PoE Switch designed specifically for modern surveillance networks and smart office environments across Bangladesh.
Engineered to streamline IP camera and VoIP phone deployments, this robust network switch removes the need for extra power cables at device locations, drastically reducing overall installation costs for local system integrators and IT admins.

With its robust 200W PoE power budget and 2 Gigabit SFP uplink slots, the V1116-2S-P1 ensures seamless, lag-free data transmission for high-definition security setups. Whether you are expanding a corporate office network, setting up a retail CCTV network,
or managing a residential infrastructure, this plug-and-play solution offers the perfect balance of massive capacity, long-distance transmission capability, and carrier-grade durability.
