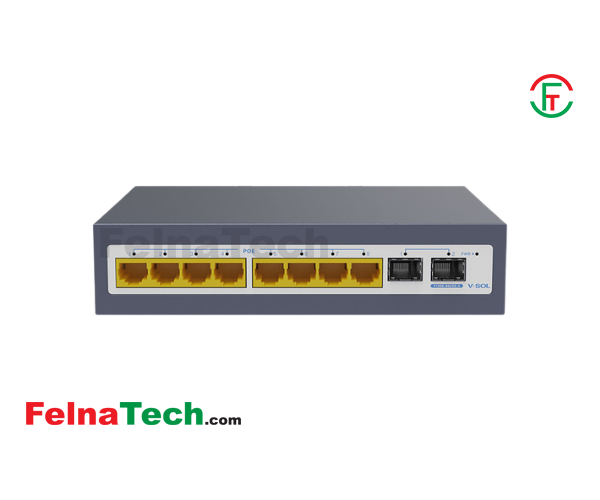

V-SOL V1500-8G2XS-A 8-Port Gigabit Unmanaged PoE Switch with 2 SFP Uplink

Brand: Switch / VSOL

Title: V-SOL V1500-8G2XS-A 8-Port Gigabit Unmanaged PoE Switch with 2 SFP Uplink

Model: V1500-8G2XS-A

Code: 216446903

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 6600

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1500-8G2XS-A 8-Port Gigabit Unmanaged PoE Switch with 2 SFP Uplink

Technical Specifications:

Model: V1500-8G2XS-A

Switch Type: Layer 2 Unmanaged PoE Ethernet Switch
PoE Ports: 8 × 10/100/1000 Mbps Gigabit PoE RJ45 Ports (Downlink)
Uplink Ports: 2 × Gigabit SFP Ports (Uplink)
PoE Protocol: IEEE 802.3af (15.4W) / IEEE 802.3at (30W) Standards
Switching Capacity: 20 Gbps
Packet Forwarding Rate (Throughput): 14.88 Mpps
MAC Address Table: 8K Entries
Transfer Mode: Store-and-Forward
DIP Switch Modes: NORMAL Mode & VLAN Mode (Port Isolation)
LED Status Indicators: PWR (Power), Link/Act (Per Port), Uplink Status
Power Supply: External AC-DC Power Adapter (52V / 1.93A)
Total Power Consumption: 100W Max

Physical Specs: Durable Metal Body | Net Weight: 1.03 kg | Dimensions: 186 × 155 × 44 mm

Operating Temperature: -30°C to 60°C (Wide-temperature Design)

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

Full Gigabit PoE Downlinks: Equipped with 8× 10/100/1000 Mbps auto-adaptive RJ45 ports that support PoE, delivering high-speed data and power simultaneously to connected devices.

High-Speed SFP Uplinks: Includes 2× Gigabit SFP uplink ports, allowing seamless long-distance fiber connectivity to core switches, routers, or OLTs without bottlenecking.

Intelligent PoE+ Supply: Fully complies with IEEE 802.3af/at standards, supporting up to 30W per port with a robust total power budget of 100W for IP cameras, Access Points, and VoIP phones.

One-Click VLAN Port Isolation: Features a physical DIP switch supporting VLAN Mode. When enabled, downlink ports (1-8) are isolated from each other to prevent broadcast storms and network sniffing, enhancing security.

Plug and Play Simplicity: Completely unmanaged setup that requires zero configuration or software installation—just plug in your cables and it intelligently establishes the local network.

Fanless Silent Operation: Designed with a fanless passive cooling architecture that ensures completely quiet operation, making it ideal for noise-sensitive office and home environments.

Industrial-Grade Temperature Endurance: Built to withstand harsh environmental conditions, operating reliably in extreme temperatures ranging from freezing -30°C to scorching 60°C.

Efficient Traffic Management: Utilizes Store-and-Forward architecture combined with IEEE 802.3x full-duplex flow control to ensure stable data transmission and minimize packet loss under heavy loads.

Product Description:

The V-SOL V1500-8G2XS-A is a high-performance, robust, and budget-friendly Layer 2 Unmanaged Gigabit PoE Switch designed specifically for security surveillance, enterprise networking, and smart home automation across Bangladesh.
Engineered to streamline modern IP-based deployments, this box-style switch provides a seamless, centralized solution for delivering both high-speed data and stable electrical power over a single Ethernet cable.

Equipped with 8x Full Gigabit (1GE) PoE downlink ports and 2x Dedicated Gigabit SFP uplink ports, the V1500-8G2XS-A offers exceptional throughput with a 20 Gbps switching capacity. Its dual SFP uplinks provide ISPs and network administrators with maximum operational
flexibility, allowing smooth long-distance fiber integration into core networks. With a generous 100W total power budget and native compliance with IEEE 802.3af/at standards, it is an ideal choice for powering high-definition IP cameras, wireless access points,
and IP phones without needing standalone power adapters.

Designed for ultimate convenience and dependability, it features a physical DIP switch for easy one-click VLAN port isolation, protecting your network from broadcast storms and maximizing security. Housed in a durable metal chassis with a fanless design for
whisper-quiet performance, and capable of enduring extreme temperatures (-30°C to 60°C), the VSOL V1500-8G2XS-A is a true plug-and-play powerhouse built to deliver uncompromised reliability for small-to-medium businesses (SMBs) and corporate setups.
