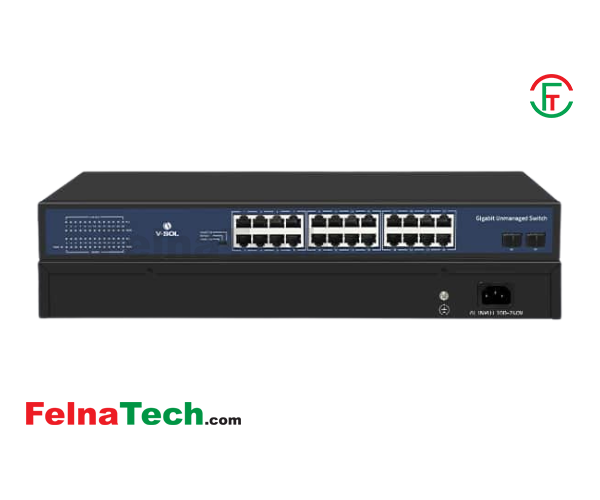

V-SOL V1124-2S-P2 24-Port 100M PoE + 2-Port Gigabit Combo SFP Unmanaged Switch

Brand: Switch / VSOL

Title: V-SOL V1124-2S-P2 24-Port 100M PoE + 2-Port Gigabit Combo SFP Unmanaged Switch

Model: V1124-2S-P2

Code: 216446907

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 17000

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1124-2S-P2 24-Port 100M PoE + 2-Port Gigabit Combo SFP Unmanaged Switch

Technical Specifications:

Model: V1124-2S-P2

Switch Type: Unmanaged PoE Switch
PoE Ports: 24 × 10/100 Mbps RJ45 Ports (Supports IEEE 802.3af/at)
Uplink Ports: 2 × Gigabit Combo Ports (10/100/1000 Mbps RJ45 or 1000 Mbps SFP Slot)
PoE Power Budget: Total 250W Max Power Budget (Up to 30W per PoE port)
Switching Capacity: 8.8 Gbps
MAC Address Table: 4K entries with auto-learning and auto-aging
Working Modes: Standard Mode, CCTV/Extend Mode (Up to 250m)
LED Status Indicators: Power, Link/Act, PoE Status

Physical Specs: Heavy-duty Metal Chassis | 1U Rack-mountable | Built-in Cooling Fans

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

High-Density PoE Delivery: Features 24 Fast Ethernet ports equipped with IEEE 802.3af/at Power over Ethernet (PoE), delivering up to 30W per port to power IP cameras, VoIP phones, and wireless access points without extra power cables.

Gigabit Combo Uplinks: Equipped with 2 Gigabit Combo ports (RJ45/SFP) that provide high-speed uplink connectivity to core switches, NVRs, or servers, eliminating network bottlenecks.

Massive 250W Power Budget: A robust internal power supply supports a total PoE budget of 250W, ensuring stable and reliable power delivery to multiple high-draw PD (Powered Devices) simultaneously.

One-Key CCTV/Extend Mode: Supports an ultra-long-distance transmission mode that extends the PoE and data signal up to 250 meters at 10 Mbps—ideal for large-area IP surveillance deployments.

Zero-Configuration Plug & Play: As an unmanaged switch, it requires absolutely no software setup, IP configuration, or technical expertise. Just plug it in, connect your devices, and it works instantly.

Intelligent Power Allocation: Built-in smart power management automatically prioritizes ports to protect the system from overloading, ensuring critical devices stay online.

Durable & Rack-Mountable Design: Housed in a rugged, industrial-grade metal casing. It includes standard rack-mounting ears for easy installation in 19-inch network racks or cabinets.

Advanced Heat Dissipation: Designed with integrated cooling fans and optimized airflow ventilation to prevent overheating, guaranteeing 24/7 continuous operation.

The V-SOL V1124-2S-P2 is a high-performance, enterprise-grade, and cost-effective 24-port unmanaged PoE switch tailored for modern IP surveillance networks, SMBs, and enterprise infrastructure across Bangladesh. Engineered to simplify network deployment,
this robust switch combines high-density PoE delivery with flexible Gigabit Combo uplinks, making it an excellent backbone solution for mid-to-large scale security camera setups and network expansions.

Featuring a dedicated CCTV/Extend mode, the V1124-2S-P2 effortlessly bypasses the standard 100-meter Ethernet limitation, safely pushing power and data up to 250 meters. This plug-and-play device eliminates the need for complex configurations,
allowing local system integrators and IT administrators to deploy IP cameras, access control systems, and wireless access points quickly, reliably, and efficiently.
