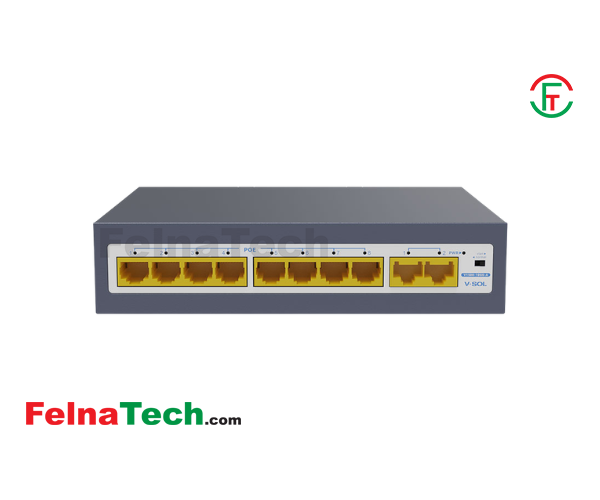

V-SOL V1500-10GS-A 10-Port Gigabit Unmanaged PoE Switch

Brand: Switch / VSOL

Title: V-SOL V1500-10GS-A 10-Port Gigabit Unmanaged PoE Switch

Model: V1500-10GS-A

Code: 216446904

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 5600

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1500-10GS-A 10-Port Gigabit Unmanaged PoE Switch

Technical Specifications:

Model: V1500-10GS-A

Switch Type: Layer 2 Box-style Unmanaged PoE Switch
PoE Interfaces: 8 × 10/100/1000 Mbps Gigabit PoE RJ45 Ports
Uplink Interfaces: 2 × 10/100/1000 Mbps Gigabit RJ45 Uplink Ports
PoE Protocols: IEEE 802.3af (15.4W per port) & IEEE 802.3at (30W per port)
Switching Capacity: 20 Gbps
Packet Throughput: 14.88 Mpps
MAC Address Table: 2K entries (Store and Forward transfer mode)
Total PoE Power Budget: 100W Max (Power Supply: 52V / 1.93A)
DIP Switch Modes: NORMAL Mode & VLAN Mode (Port Isolation)
LED Status Indicators: PWR (Power Status), LAN1–LAN8 (PoE Link/Activity), Uplink1–Uplink2
Cooling System: Fanless Passive Cooling Design (Zero Noise)

Physical Specs: Premium Metal Chassis | Weight: ~1.01 kg | Dimensions: 186 × 155 × 44 mm

Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x (Flow Control), IEEE 802.1p (QoS)

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

Full Gigabit Performance: Equipped with 8 Gigabit PoE ports and 2 Gigabit Uplink ports to deliver massive bandwidth and eliminate data bottlenecks for high-speed devices.

Dual-Mode DIP Switch (VLAN Support): Features a hardware DIP switch. In VLAN Mode, it enables port isolation for ports 1–8, preventing broadcast storms and enhancing security, while NORMAL Mode allows full communication across all ports.

Intelligent Power Over Ethernet (PoE/PoE+): Supports both IEEE 802.3af and 802.3at standards, supplying up to 30W per port. It automatically detects and delivers the exact power needed for connected IP devices.

Plug-and-Play Simplicity: Requires zero configuration or software setup. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables—simply plug in and build your network instantly.

Completely Silent Operation: Designed with a fanless passive cooling architecture. This ensures a 100% noise-free environment, making it perfect for office cabins, conference rooms, and quiet workspaces.

Robust Packet Flow Control: Implements IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control to prevent packet loss during intense network congestion.

Industrial-Grade Weather Resistance: Engineered to work seamlessly under extreme conditions, maintaining reliable operation in wide temperature ranges from -30°C to 60°C.

Smart LED Monitoring: Dedicated LED lights for power, PoE link connectivity, and data transmission speed allow network administrators to diagnose network issues at a single glance.

Description:

The V-SOL V1500-10GS-A is a premium, high-performance, and heavy-duty 10-Port Gigabit Unmanaged PoE Switch, engineered to meet the growing network demands of modern businesses, IP surveillance systems, and smart home networks in Bangladesh.
Featuring 8 full Gigabit PoE ports and 2 dedicated Gigabit RJ45 Uplink ports, this box-style Layer 2 switch offers an optimal balance of fast data delivery and massive power delivery through a single Ethernet cable.

Equipped with a total PoE power budget of 100W, the V1500-10GS-A seamlessly powers high-bandwidth devices like HD IP cameras, wireless Access Points (APs), and VoIP phones without requiring any extra power adapters.
It features a smart hardware DIP switch that allows users to instantly toggle into VLAN (Port Isolation) Mode, separating individual downlink ports to maximize security and prevent local network errors.

Encased in a durable metal chassis with a rugged industrial design, it can withstand extreme temperatures from -30°C to 60°C, ensuring round-the-clock reliability. Its Plug-and-Play philosophy and Fanless silent design mean you can deploy it effortlessly in
any noise-sensitive workspace or server rack without bothering about complex configurations. Whether you are expanding an enterprise network or setting up a high-definition CCTV security network, the VSOL V1500-10GS-A provides a highly stable, carrier-grade,
and cost-effective foundation.
