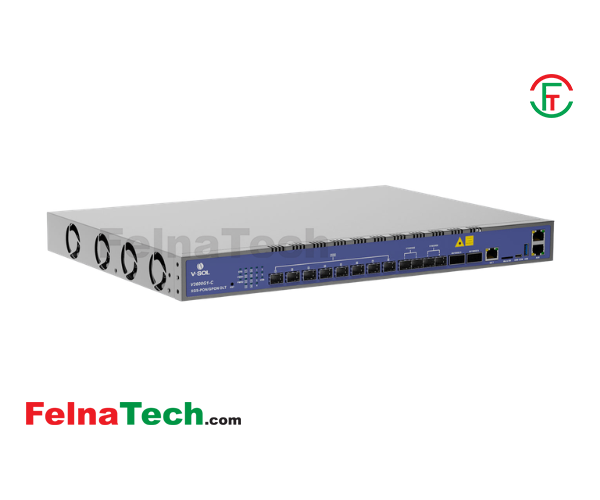

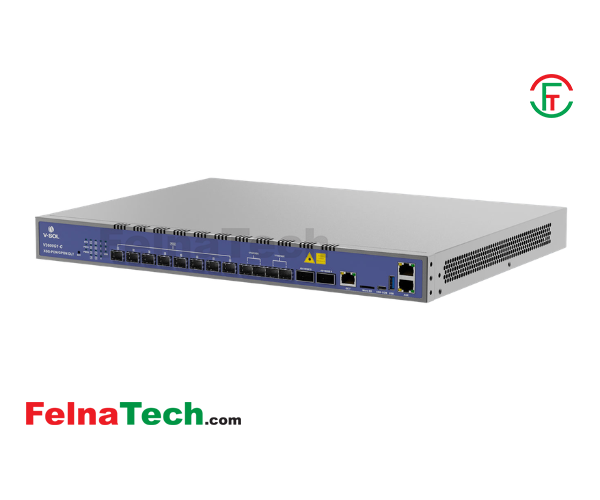

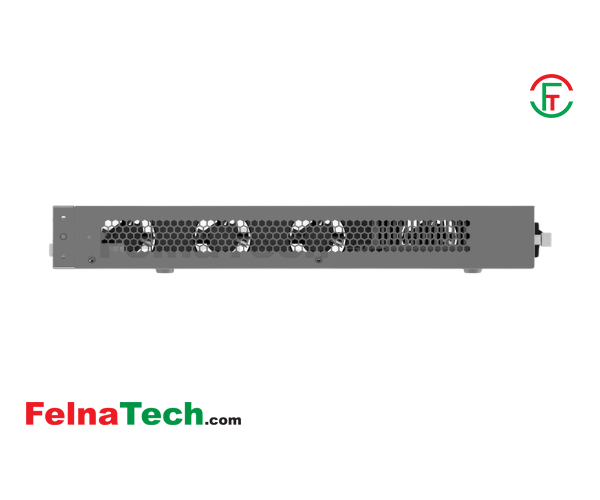

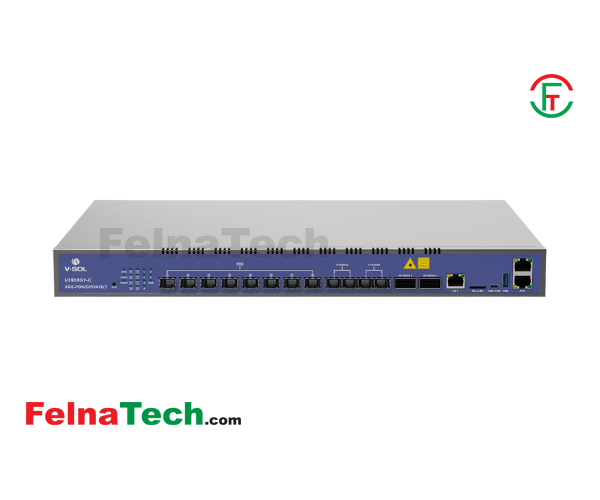

V-SOL V3600G1-C 8-Port XGS Combo PON OLT

V-SOL V3600G1-C 8-Port XGS Combo PON OLT

Technical Specifications:

Model: V3600G1-C
Form Factor: 1U 19-Inch Standard Rackmount Box
PON Interface: 8 × XG(S)-PON/GPON Combo Ports (SFP+ Slots)
Uplink Interface: 2 × 100GE (QSFP28) + 4 × 25GE (SFP28) + 1 × 1GE (RJ45) Ports
Connector Type: N2_C+ Module (Combo Mode) / Class B+ to C++++ Modules (Single GPON Mode)
Max Optical Splitting Ratio: 1:256 (Maximum) | 1:128 (Recommended)
Backplane Bandwidth: 1960 Gbps (High-performance switching capacity)
Port Forwarding Rate: 566.928 Mpps
Transmission Distance: Up to 20 KM
Management Ports: 1× Out-band Management Port, 1× CONSOLE port, 1× USB 3.0, 1× Type-C USB Console, 1× MicroSD port
Layer 2 Features: 32K MAC Address, 4096 VLANs, QinQ, Static/Dynamic LACP, QoS, RSTP
Layer 3 Features: Static Route, Dynamic Route (RIP v1/v2, RIPng, OSPF v2/v3), ARP Proxy, DHCP Server/Relay/Snooping
Lightning Protection: Power: 6KV | Interface: 4KV

Physical Specs: Net Weight: 4.8 KG | Dimensions: 442 × 330 × 43.6 mm

Power Supply: Dual Power Slots (Supports AC 100~240V / DC configurations) with 4 built-in cooling fans

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

Triple Mode & Future-Proof Combo PON: Seamlessly integrates GPON, XG-PON, and XGS-PON onto the same physical ports. This allows ISPs to run standard GPON now and upgrade to symmetrical 10G speeds later without replacing hardware.

Ultra-High Speed 100Gbps Uplinks: Features 2× 100GE QSFP28 and 4× 25GE SFP28 high-speed uplink ports, eliminating network bottlenecks and ensuring full line-speed data forwarding for massive traffic.

Massive Client Capacity: Supports up to 256 ONTs per PON port (1:256 splitting ratio), meaning a single 8-port OLT can efficiently manage up to 2,048 end-user connections.

Enterprise-Grade Layer 3 Routing: Equipped with advanced hardware routing capabilities supporting RIP, OSPF, and IPv6 protocols, eliminating the need for heavy external layer 3 switches.

Carrier-Grade Redundancy & Safety: Features hot-swappable dual power configurations and 6KV lightning protection to guarantee 24/7 continuous network operation and prevent unexpected system downtime.

Flexible Bandwidth Management: Fully supports dynamic bandwidth allocation (T-CONT DBA) and port rate limitation to help operators customize internet packages seamlessly.

Advanced Security & Storm Control: Protects the network with Access Control Lists (ACL), Radius/Tacacs+ authentication, IP Source Guard, and robust broadcast storm suppression.

Comprehensive Remote Management: Network administrators can fully monitor and configure the device via SNMP, Telnet, SSH v2, CLI, and Web UI for effortless remote software upgrades and ONT auto-discovery.

Product Overview:

The V-SOL V3600G1-C is an innovative, high-density 10G Combo PON OLT designed specifically for next-generation FTTH (Fiber to the Home), FTTx, and enterprise network deployments across Bangladesh. Built with a high-performance chipset in a compact 1U rackmount chassis,
this cutting-edge device provides a smooth and highly economical migration path from legacy GPON systems to ultra-fast XG-PON and XGS-PON technologies without any messy engineering difficulties.

For local Internet Service Providers (ISPs), the V3600G1-C offers ultimate flexibility. Operators can initially run the 8 PON ports in single GPON mode to minimize investment costs, and then hot-switch them to 10G-GPON mode as customer demand grows.
Backed by 100Gbps QSFP28 uplinks and full Layer 3 routing capabilities, it delivers a lag-free, high-bandwidth user experience, making it the perfect core solution for scaling internet networks efficiently and reliably.


V-SOL V3600G1-C 8 Port XG(S) Combo PON OLT in Bangladesh – high-performance 10G GPON/XGS-PON solution for ISP and FTTH networks. Supports GPON, XG-PON and XGS-PON with 8 PON ports, 25GE/100GE uplink, and ultra-high bandwidth for scalable fiber broadband deployment in Bangladesh. Ideal for telecom operators and ISP backbone networks.
