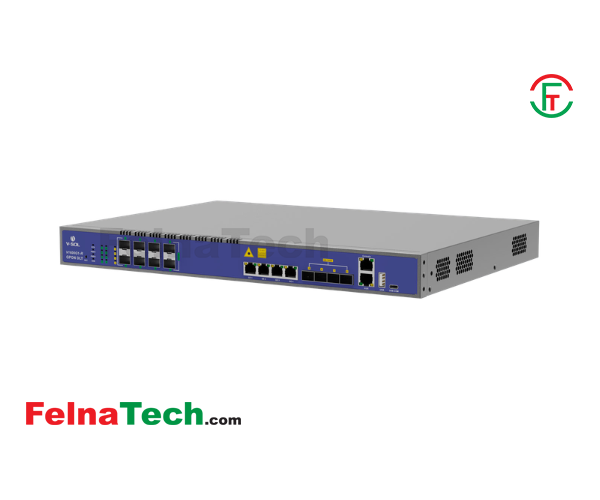

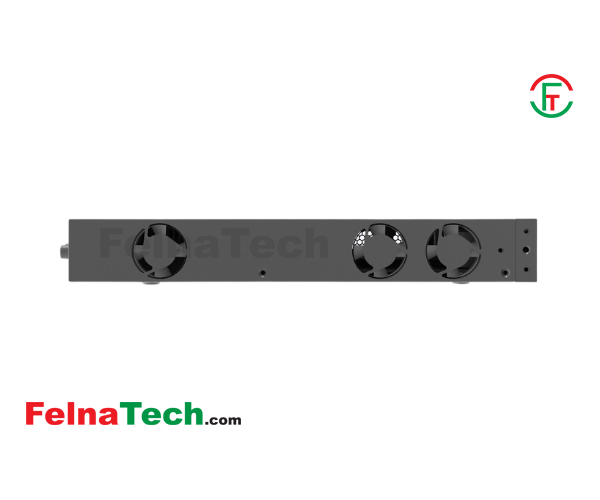

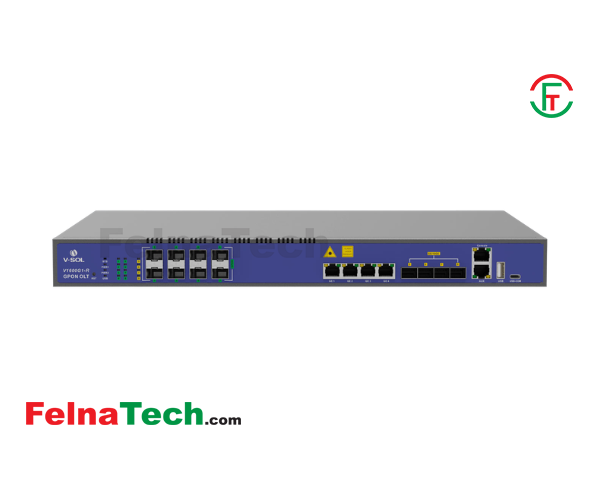

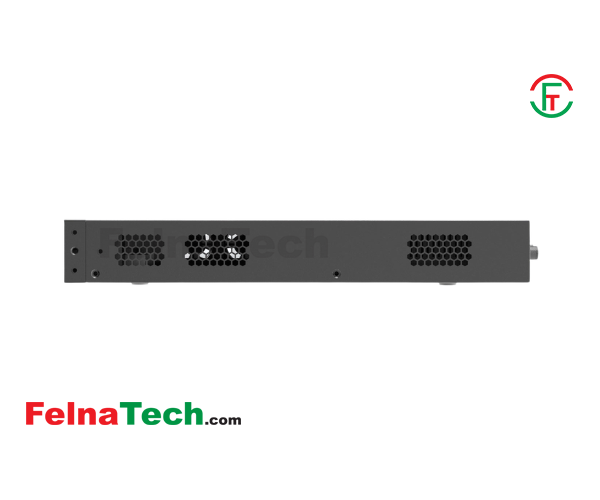

V-SOL V1600G1-R 8 Port Layer 3 GPON OLT

Brand: OLT / VSOL

Title: V-SOL V1600G1-R 8 Port Layer 3 GPON OLT

Model: V1600G1-R

Code: 2110929631

Category: Networking / ISP / OLT

Product Type: OLT

Price: 121000

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1600G1-R 8 Port Layer 3 GPON OLT

Technical Specifications:

Model: V1600G1-R
Chassis / Design: 1U 19-Inch Standard Box (Compact & Rack-Mountable)
GPON Ports: 8 × GPON Ports (SFP Slots)
Max Splitting Ratio: 1:128 (Supports up to 1024 ONUs/ONTs per OLT)
Uplink Ports: 8 Ports Total [4 × 10/100/1000Mbps RJ45 Ethernet Ports + 4 × SFP(GE) / SFP+(10GE) Slots]
Management Ports: 1× 10/100/1000BASE-T Out-band Port, 1× Console Port, 1× USB 2.0, 1× Type-C USB (for console)
Backplane Bandwidth: 240 Gbps
Port Forwarding Rate: 124.992 Mpps
GPON Speed: Upstream: 1.244 Gbps | Downstream: 2.488 Gbps
Transmission Distance: Up to 20 KM
Supported PON Modules: Class B+, C, C+, C++, C+++, C++++
Power Supply: Dual Hot-Swap Power Options (AC: 100~240V, 50/60Hz | DC: -36V~-75V)
Management Modes: EMS, WEB, SNMP, Telnet, CLI

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

High Density & Massive User Capacity: Features 8 GPON ports with a 1:128 splitting ratio, allowing ISPs to easily connect and manage up to 1024 end-user ONUs/ONTs from a single unit.

Blazing-Fast 10G Uplink: Equipped with 4 Gigabit Ethernet ports and 4 dual-rate SFP+/SFP ports supporting up to 10Gbps uplink speeds to eliminate network bottlenecks.

Dual Hot-Swap Power Redundancy: Supports flexible AC and DC dual power options with hot-swap capability, ensuring uninterrupted uptime and network reliability during maintenance or power failure.

Advanced Layer 3 Routing: Built-in Layer 3 enterprise-grade routing features provide intelligent traffic management, efficient data packet forwarding, and dynamic routing capabilities.

Carrier-Grade Security & Protection: Offers strong firewall mechanisms, secure access controls, and DDoS protection to keep the entire network infrastructure safe from malicious attacks.

Versatile Deployment & Compact Design: The 1U standard rack-mountable, lightweight design saves server room space and reduces transport costs. Ideal for FTTx, FTTM (Mobile backhaul), and corporate enterprise networks.

Flexible Management Options: Network administrators can easily configure, monitor, and upgrade firmware remotely using EMS, Web UI, SNMP, Telnet, or CLI commands.

Product Description:

The V-SOL V1600G1-R is a high-performance, cost-effective, and carrier-grade 8-Port Layer 3 GPON OLT designed to meet the growing demands of modern FTTH (Fiber to the Home) and FTTx networks across Bangladesh.
Housed in a compact 1U standard 19-inch rack-mountable chassis, this OLT is a perfect blend of high density, energy efficiency, and superior reliability, making it an excellent choice for local Internet Service Providers (ISPs) and corporate networking environments.

With 8 dedicated GPON ports supporting a 1:128 split ratio, the V1600G1-R can seamlessly connect up to 1024 ONUs/ONTs. To ensure ultra-fast data transfer and eliminate network congestion, it features 4 Gigabit RJ45 copper ports alongside 4 high-speed 10G SFP+
uplink slots.

What sets this model apart is its dual hot-swappable power supply configuration (supporting both AC and DC options), guaranteeing continuous, 24/7 non-stop network performance. Backed by a powerful 240Gbps backplane bandwidth and comprehensive remote management
options like Web UI, EMS, and SNMP, the VSOL V1600G1-R provides a scalable, secure, and hassle-free solution for building next-generation broadband infrastructures.
