V-SOL V1600G2-B 16-Port GPON OLT

V-SOL V1600G2-B 16-Port GPON OLT

Technical Specifications:

Model: V1600G2-B
Chassis: 1U 19-inch Standard Rackmount Box
GPON Interface: 16 × GPON Ports
Uplink Interface: 4 × GE (RJ45) + 4 × 10GE (SFP+) Ports
Splitting Ratio: 1:128 Max Splitting Ratio per Port
ONU Capacity: Supports up to 2,048 ONUs/ONTs simultaneously
Backplane Bandwidth: 208 Gbps Switching Capacity
Layer 2/3 Features: VLAN, QinQ, QoS, IGMP Snooping, Static Route, RIP/OSPF
LED Status Indicators: Power, RUN, SYS, Link/Act, PON Status
Power Supply: Dual Redundant Power Supplies (AC 100~240V / DC 48V)

Physical Specs: Heavy-duty Metal Body | Weight: ~4.5 kg | Dim: 442 × 320 × 43.6 mm

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

High-Density Carrier-Grade Capacity: Equipped with 16 GPON ports supporting a 1:128 split ratio, allowing ISPs to connect up to 2,048 subscribers from a single 1U compact unit.

Ultra-Fast 10G Uplink Ports: Features 4x Gigabit copper ports alongside 4x 10G SFP+ uplink slots to prevent network bottlenecks and ensure massive bandwidth flow to the core network.

Dual Redundant Power Supply: Built with hot-swappable dual power slots (supporting AC+DC or AC+AC) to ensure 24/7 uninterrupted uptime and carrier-grade reliability.

Advanced Layer 3 Routing: Supports corporate-level routing protocols including Static Route, RIP, and OSPF, allowing efficient data packet management directly from the OLT.

IPTV & Triple-Play Optimized: Features robust IGMP Snooping, Proxy, and advanced QoS (Quality of Service) control to deliver crystal-clear, buffer-free IPTV, VoIP, and high-speed data services.

Comprehensive Security & Access Control: Enhanced with Access Control Lists (ACL), anti-ARP spoofing, broadcast storm control, and MAC/IP binding to prevent cyber threats and unauthorized access.

Flexible Remote Management: Fully compatible with EMS/Web UI, CLI (Telnet/SSH), SNMP, and TR-069, giving network administrators seamless remote control and automated firmware provisioning.

Standard 1U Space-Saving Design: Fits perfectly into any standard 19-inch server rack, cutting down on space, cooling costs, and power consumption in local POP stations.

Product Overview:

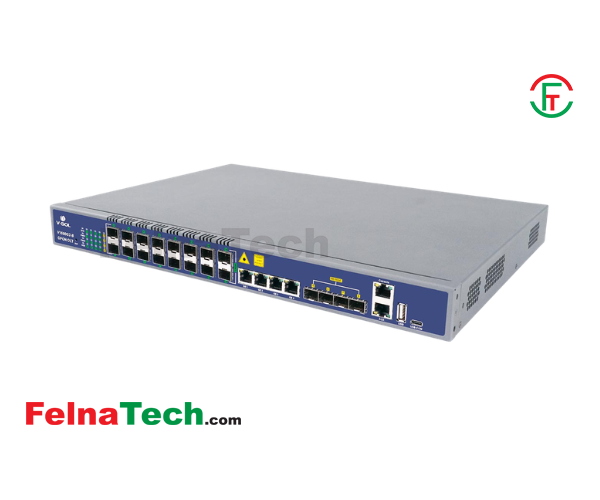

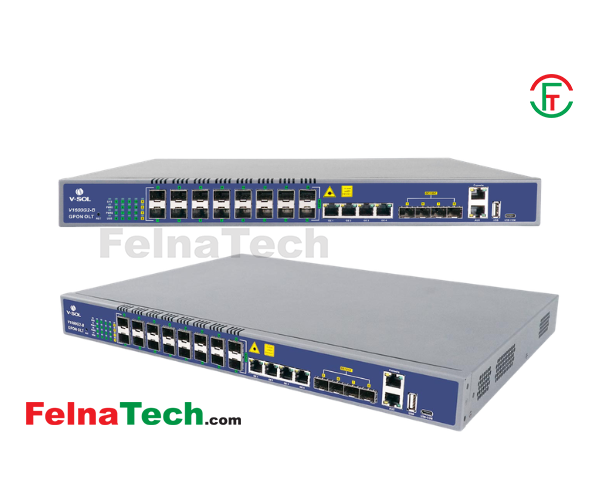

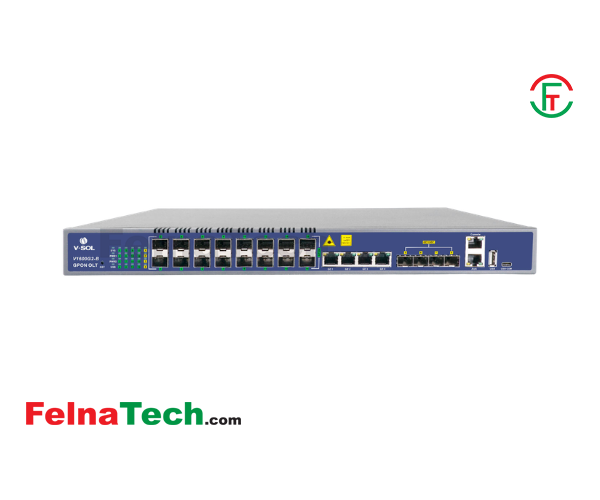

The V-SOL V1600G2-B is a high-performance, carrier-grade 16-Port GPON OLT (Optical Line Terminal) engineered specifically for medium-to-large scale FTTH (Fiber to the Home) and FTTB (Fiber to the Building) network deployments across Bangladesh.
Packing massive switching power into a compact 1U rackmount chassis, this OLT is the perfect choice for regional Internet Service Providers (ISPs) looking to scale up their subscriber base effortlessly without breaking the bank.

With a massive backplane capacity and full 10G SFP+ uplink ports, the V1600G2B ensures zero-lag, high-bandwidth data transmission to up to 2,048 ONUs. Its enterprise-grade Layer 3 routing capabilities combined with strict security protocols make it a robust and
dependable core unit for modern ISPs. Whether you are delivering high-speed internet, digital IPTV, or VoIP services, the VSOL V1600G2B provides the ultimate balance of stability, scalability, and cost-efficiency.


Buy VSOL V1600G2-B 16 Port GPON OLT in Bangladesh for high-performance FTTH and ISP fiber networks. Supports 16 GPON ports, 4GE + 4x10GE uplink, and up to 1:128 splitting ratio. Ideal for scalable broadband, enterprise, and telecom solutions with stable, high-speed fiber connectivity.
