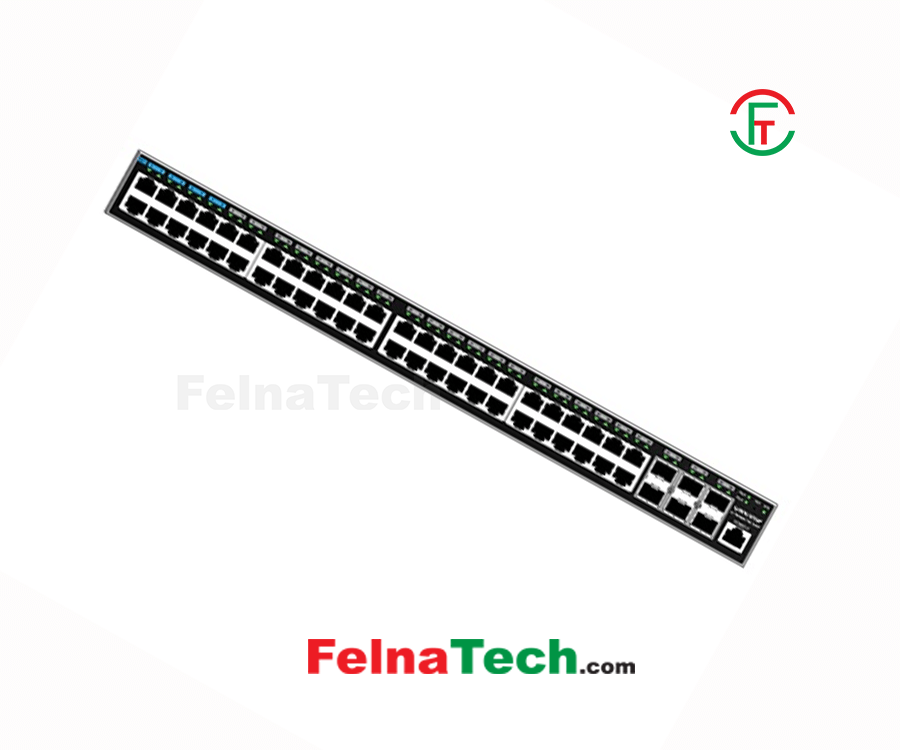

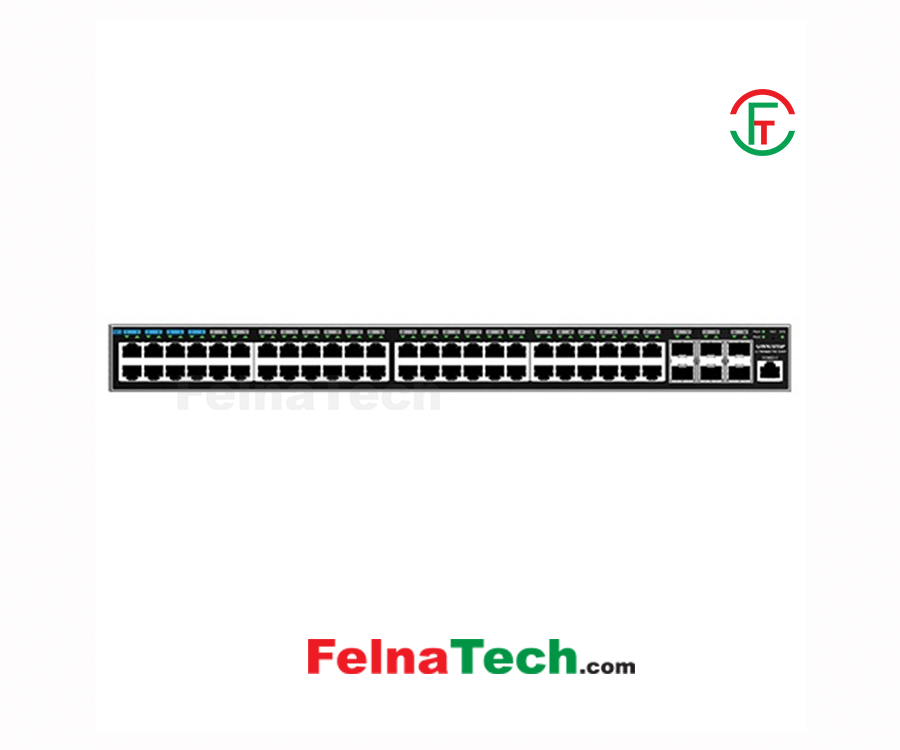

Grandstream GWN7816 48 Port Layer 3 Managed Network Switch

Brand: Grandstream

Title: Grandstream GWN7816 48 Port Layer 3 Managed Network Switch

Model: GWN7816

Code: 216338504

Category: Networking / Switch / Grandstream

Product Type: Switch

Price: 0

Warranty: 1

Availability: Upcoming

Description:

Main Feature

Type

Layer 3 Managed Switch

Port

48x Gigabit Ethernet Ports
6x 10Gigabit SFP+ Ports

Network Standard

IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x

Advanced Functions

Built-in QoS allows for prioritization of network traffic
Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping

Transmission Method

Forwarding Mode: Store-and-forward

Data Transmission Rate

Switching Capability: 216Gbps
Total non-blocking throughput: 108Gbps
Forwarding Rate: 160.704Mpps
Packet Buffer: 16Mb
Network Latency: <4µs

MAC Address Table

16K MAC addresses, including static, dynamic and filtering MAC address
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP(pending)
27 link aggregation
Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)

Environment

Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)

Hardware Features

LED

1x tri-color LED for device tracking and status indication
2x bi-color LEDs for per power supply PSU1/2
54x green-color LEDs for data transferring
48x yellow-color LEDs for PoE powered

Power Supply

1 PSU of 70W by default, support 1 Hot swap PSU(Purchased Separately)

Dimensions (L x W x H)

440mm(L)x380mm(W)x44mm(H)

Weight

4.7Kg

Manufacture Warranty

Warranty

1 Year
