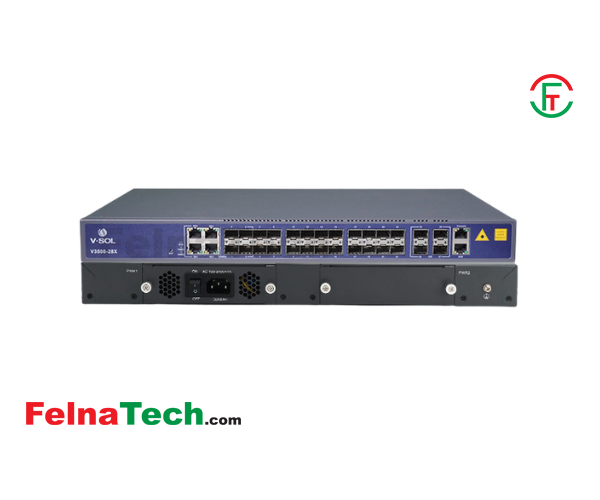

V-SOL V3500-28X 24-Port Layer 3 Managed Ethernet Switch

Brand: VSOL

Title: V-SOL V3500-28X 24-Port Layer 3 Managed Ethernet Switch

Model: V3500-28X

Code: 216346711

Category: Networking / Switch / VSOL

Product Type: Switch

Price: 53000

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V3500-28X 24-Port Layer 3 Managed Ethernet Switch

Technical Specifications:

Model: V3500-28X

Form Factor: 1U 19-Inch Standard Rackmount Design
Fixed Ports: * 24 × 10/100/1000Base-T Gigabit RJ45 Ports
4 × 10G SFP+ Optical Uplink Slots
Management Port: 1 × Console Port (RJ45)
Switching Capacity: Up to 128 Gbps
Packet Forwarding Rate: 95.232 Mpps
MAC Address Table: 16K MAC Address entries (Supports automatic learning and aging)
VLAN Support: 4K Active VLANs, IEEE 802.1Q VLAN, Voice VLAN, Protocol VLAN, QinQ / Selective QinQ, VLAN Derivation
Layer 3 Routing Features: Static Routing, Dynamic Routing (RIP v1/v2, OSPF v2), ARP Proxy, DHCP Server, DHCP Relay
IPv6 Support: Dual-Stack IPv4/IPv6, IPv6 Static Route, RIPng, OSPFv3, ICMPv6, Path MTU Discovery, MLD Snooping
Multicast Features: IGMP v1/v2/v3 Snooping, IGMP Fast Leave, Multicast VLAN Replication (MVR)
Quality of Service (QoS): 8 queues per port, SP (Strict Priority), WRR (Weighted Round Robin), Bidirectional port rate limiting, Traffic shaping
Reliability & Ring Protocols: STP (802.1D), RSTP (802.1W), MSTP (802.1S), ERPS (Ethernet Ring Protection Switching, recovery time < 50ms), LACP (Link Aggregation)
Security & Access Control: ACL (Layer 2/3/4), IEEE 802.1X Port Authentication, AAA/RADIUS/TACACS+, Port Isolation, Broadcast Storm Control, Anti-DDoS attack, IP-MAC-Port Binding
Management Modes: CLI (Console/Telnet/SSH v2), WEB UI (HTTP/HTTPS), SNMP v1/v2c/v3, RMON, Syslog, LLDP

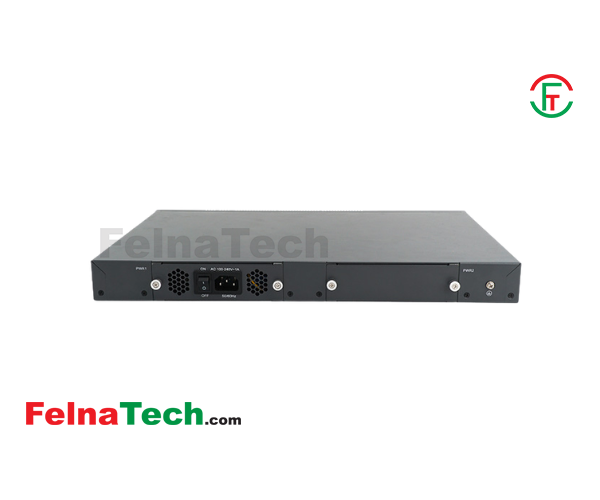

Power Supply: Single AC Power Input | Working Voltage: 100V~240V AC, 50/60Hz

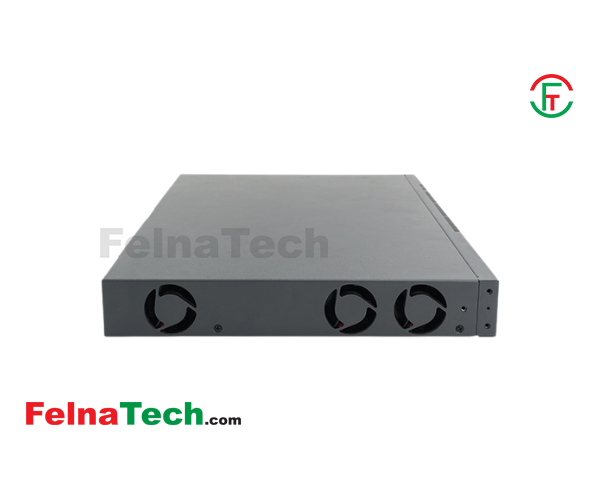

Physical Specs: Standard 1U Rack Chassis | Efficient Cooling Fan Design | Lightning Protection: 4KV/6KV

Key Features:

Blazing-Fast 10G SFP+ Uplinks for High-Bandwidth Networks:
The V-SOL V3500-28X is engineered to eliminate data congestion with its 4 dedicated 10G SFP+ optical slots. Combined with 24 Gigabit Ethernet ports, it provides ultra-high-speed uplink connectivity to core switches or server rooms, making it ideal for high-capacity corporate infrastructures and enterprise networks in Bangladesh.

Advanced Layer 3 Routing (Static, RIP, & OSPF):
Take full control over your network topology without needing a standalone router. This Layer 3 managed switch supports robust enterprise routing protocols, including Static Routing, RIP v1/v2, and OSPF v2. It ensures intelligent packet forwarding, lightning-fast inter-VLAN routing, and efficient traffic management across large local networks.

Carrier-Grade Enterprise Security & ACL:
Protect your network infrastructure against malicious cyber threats. Armed with advanced Layer 2/3/4 Access Control Lists (ACLs), IEEE 802.1X port authentication, and AAA (RADIUS/TACACS+) integration, the V3500-28X stops unauthorized access in its tracks. Features like Anti-DDoS protection and IP-MAC-Port binding guarantee ironclad security.

Ultra-Reliable ERPS Ring Topology (<50ms Recovery):
Ensure zero network downtime with industrial-grade redundancy protocols. The switch supports Ethernet Ring Protection Switching (ERPS), delivering self-healing network loop protection with a recovery time of less than 50 milliseconds. It also features standard STP/RSTP/MSTP and LACP link aggregation to keep your business online 24/7.

Seamless IPTV & Multicast Delivery:
Deliver buffer-free digital entertainment and streaming services effortlessly. With comprehensive support for IGMP v1/v2/v3 Snooping and Multicast VLAN Replication (MVR), the V3500-28X optimizes bandwidth distribution, ensuring smooth and lag-free IPTV deployment for modern residential apartments and internet service providers.

Future-Proof Dual-Stack IPv4/IPv6 Implementation:
Transition to next-generation internet protocols with total confidence. The V-SOL V3500-28X features native hardware support for dual-stack IPv4/IPv6 networking. It includes advanced IPv6 routing capabilities like RIPng and OSPFv3, allowing ISPs and corporate offices to scale their networks smoothly without requiring costly hardware upgrades.

Intuitive Web GUI & Comprehensive Remote Management:
Simplify network administration with versatile management tools. Network engineers can manage, configure, and monitor the switch using a user-friendly Web Interface (HTTPS), advanced Command Line Interface (CLI via Console/Telnet/SSH), or industry-standard SNMP v1/v2/v3 protocols for seamless automated monitoring.

The V-SOL V3500-28X is a premium, high-performance 24-Port Layer 3 Managed Gigabit Switch meticulously designed to power next-generation corporate networks, data centers, and internet service providers (ISPs) across Bangladesh.
Built inside a standard 1U rackmount chassis, this versatile switch is the perfect core or aggregation solution for modern offices, smart commercial complexes, and high-density residential networks looking to maximize performance and
bandwidth efficiency.

Equipped with 24 high-speed Gigabit RJ45 ports and a powerhouse matrix of 4 dedicated 10G SFP+ uplinks, the V3500-28X boasts an impressive 128 Gbps switching capacity and a packet forwarding rate of 95.232 Mpps.
Moving far beyond basic Layer 2 switches, it features advanced Layer 3 dynamic routing (RIP/OSPF), ironclad enterprise security controls (ACL/802.1X), and ultra-fast ERPS ring protection with sub-50ms network recovery.
Backed by full IPv4/IPv6 dual-stack compatibility and intuitive Web/CLI management, the VSOL V3500-28X stands out as the ultimate future-proof network investment for Bangladeshi enterprise operators demanding elite speed,
rock-solid stability, and premium management features.

Buy the V-SOL V3500-28X 24-Port Layer 3 Managed Ethernet Switch in Bangladesh for high-performance enterprise and campus networking. Features 24 SFP ports, 4 GE Combo ports, 4x10G SFP+ uplinks, OSPF, BGP, IPv6 support, and reliable Gigabit connectivity for scalable network infrastructure.
