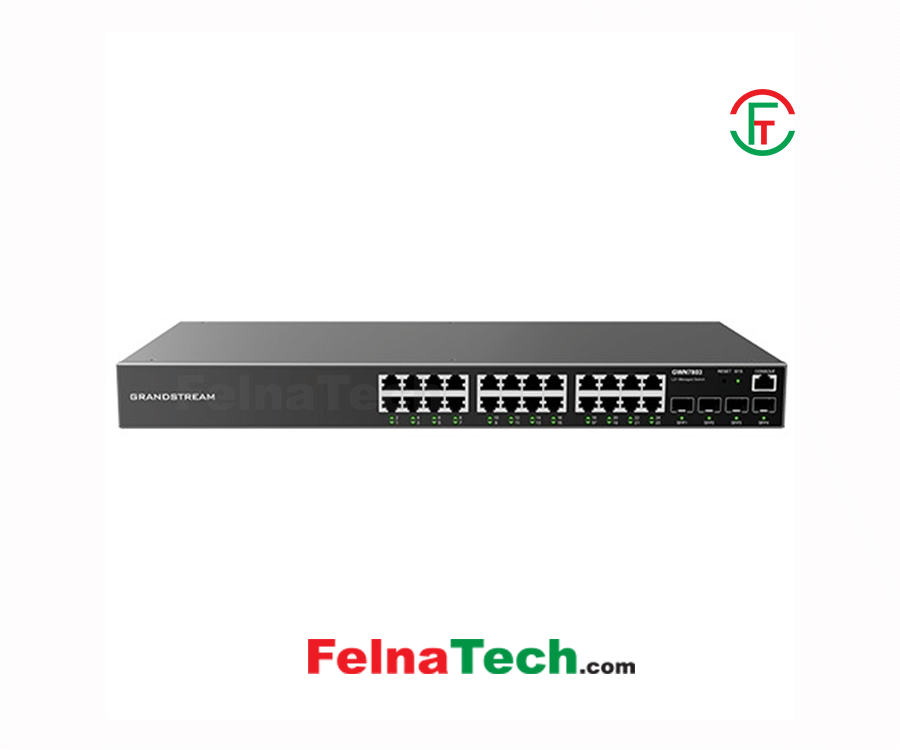

Grandstream GWN7803 24 Port Gigabit Layer 2+ Managed Network Switch
Model: GWN7803
Brand: Grandstream
Code: 216338508
| Main Feature | |
|---|---|
| Type | Gigabit Layer 2+ Managed Non-PoE Network Switch |
| Port | 24x Gigabit Ethernet Ports 4x Gigabit SFP Ports |
| Network Standard | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| Advanced Functions | Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models Supports deployment in IPv6 and IPv4 networks Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform Built-in QoS allows for prioritization of network traffic |
| Transmission Method | Forwarding Mode: Store-and-forward |
| Data Transmission Rate | Switching Capability: 56Gbps Total non-blocking throughput: 28Gbps Forwarding Rate: 41.66Mpps Packet Buffer: 4.1Mb Network Latency: Avg<4µs |
| MAC Address Table | 8K static, dynamic and filtering MAC addresses 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP (pending) 8 link aggregation groups Spanning tree, 16 instances for STP/RSTP/MSTP |
| Environment | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing) |
| Hardware Features | |
| LED | 1x tri-color LED for device tracking and status indication, 28x green LEDs for data ports |
| Power Supply | 30W Integrated Power Supply |
| Dimensions (L x W x H) | 440mm(L)x200mm(W)x44mm(H) |
| Weight | 2.7Kg |
| Manufacture Warranty | |
| Warranty | 1 Year |
Brand: Switch / Grandstream
Title: Grandstream GWN7803 24 Port Gigabit Layer 2+ Managed Network Switch
Model: GWN7803
Code: 216338508
Category: Networking / Switch / Grandstream
Product Type: Switch
Price: 0
Warranty: 1
Availability: Available/In Stock
Description:
Main Feature
Type
Gigabit Layer 2+ Managed Non-PoE Network Switch
Port
24x Gigabit Ethernet Ports
4x Gigabit SFP Ports
Network Standard
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
Advanced Functions
Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
Supports deployment in IPv6 and IPv4 networks
Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
Built-in QoS allows for prioritization of network traffic
Transmission Method
Forwarding Mode: Store-and-forward
Data Transmission Rate
Switching Capability: 56Gbps
Total non-blocking throughput: 28Gbps
Forwarding Rate: 41.66Mpps
Packet Buffer: 4.1Mb
Network Latency: Avg<4µs
MAC Address Table
8K static, dynamic and filtering MAC addresses
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP (pending)
8 link aggregation groups
Spanning tree, 16 instances for STP/RSTP/MSTP
Environment
Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)
Hardware Features
LED
1x tri-color LED for device tracking and status indication,
28x green LEDs for data ports
Power Supply
30W Integrated Power Supply
Dimensions (L x W x H)
440mm(L)x200mm(W)x44mm(H)
Weight
2.7Kg
Manufacture Warranty
Warranty
1 Year
