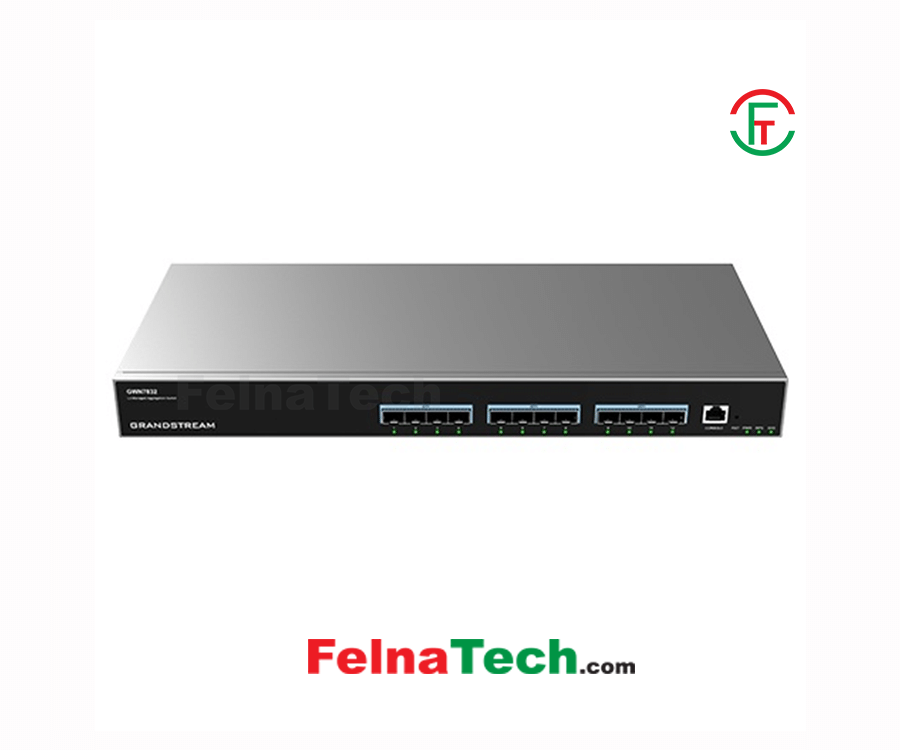

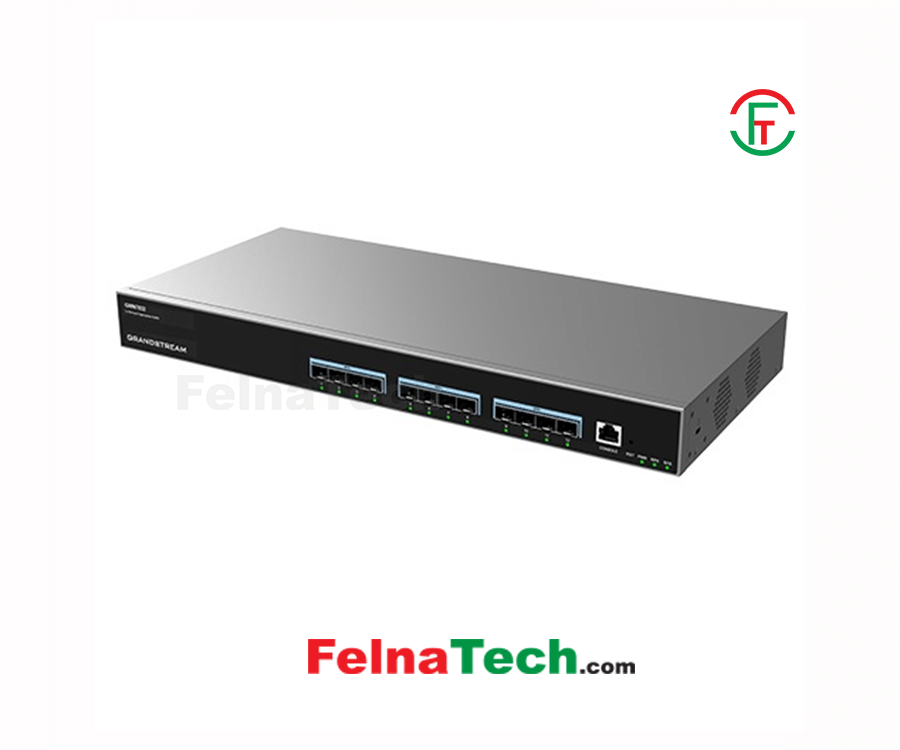

Grandstream GWN7832 12 SFP+ Port Layer 3 Managed Switch

Brand: Switch / Grandstream

Title: Grandstream GWN7832 12 SFP+ Port Layer 3 Managed Switch

Model: GWN7832

Code: 216338506

Category: Networking / Switch / Grandstream

Product Type: Switch

Price: 0

Warranty: 1

Availability: Available/In Stock

Description:

Main Feature

Type

Layer 3 Managed Switch

Port

12x Gigabit SFP+ Ports

Network Standard

IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

Advanced Functions

Built-in QoS allows for prioritization of network traffic
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping

Transmission Method

Forwarding Mode: Store-and-forward

Data Transmission Rate

Switching Capability: 240Gbps
Total non-blocking throughput: 120Gbps
Forwarding Rate: 80.352Mpps
Packet Buffer: 16Mb
Network Latency: <2µs


MAC Address Table

16K MAC addresses, including static, dynamic and filtering MAC address

Environment

Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)

Hardware Features

LED

1x tri-color LED for device tracking and status indication

Power Supply

60W Integrated Power Supply

Dimensions (L x W x H)

440mm(L)x200mm(W)x44mm(H)

Weight

2.67Kg

Manufacture Warranty

Warranty

1 Year
