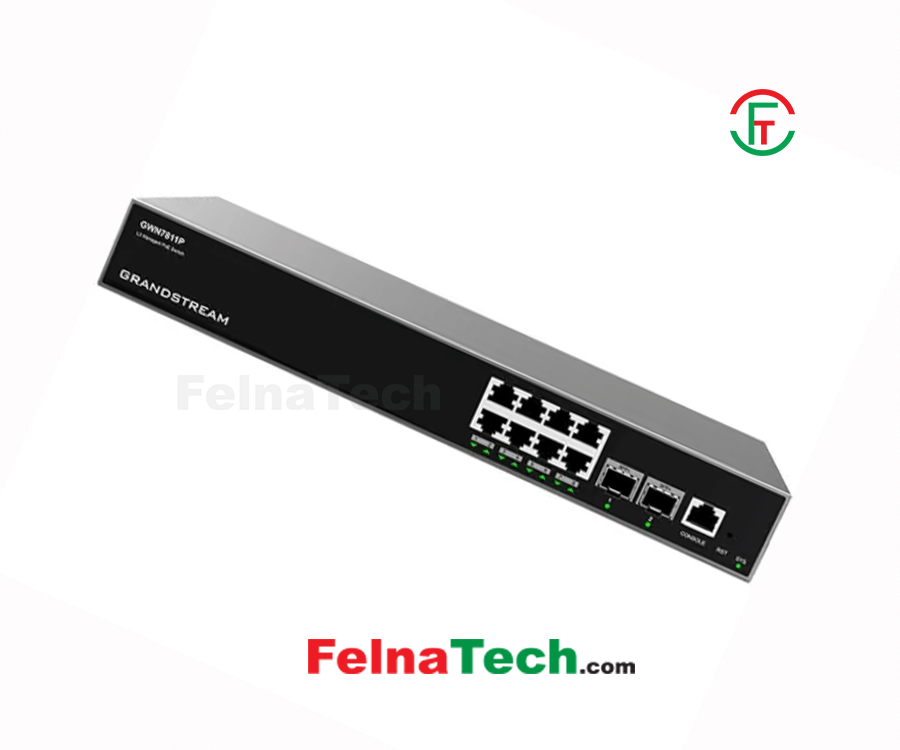

Grandstream GWN7811 8 Port Layer 3 Managed Network Switch
Model: GWN7811
Brand: Grandstream
Code: 216338509
Product Coming Soon| Main Feature | |
|---|---|
| Type | Layer 3 Managed Switch |
| Port | 8x Gigabit Ethernet Ports 2x 10Gigabit SFP+ Ports |
| Network Standard | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x |
| Advanced Functions | Built-in QoS allows for prioritization of network traffic Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping |
| Transmission Method | Forwarding Mode: Store-and-forward |
| Data Transmission Rate | Switching Capability: 56Gbps Total non-blocking throughput: 28Gbps Forwarding Rate: 41.644Mpps Packet Buffer: 12Mb Network Latency: <4µs |
| MAC Address Table | 16K static, dynamic and filtering MAC addresses 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP (pending) Spanning tree, 32 instances for STP/RSTP/MSTP |
| Environment | Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing) |
| Hardware Features | |
| LED | 1x tri-color LED for device tracking and status indication 8x yellow-color LEDs |
| Dimensions (L x W x H) | 330mm(L)x176mm(W)x44mm(H) |
| Weight | 1.45Kg |
| Manufacture Warranty | |
| Warranty | 1 Year |
Brand: Switch / Grandstream
Title: Grandstream GWN7811 8 Port Layer 3 Managed Network Switch
Model: GWN7811
Code: 216338509
Category: Networking / Switch / Grandstream
Product Type: Switch
Price: 0
Warranty: 1
Availability: Upcoming
Description:
Main Feature
Type
Layer 3 Managed Switch
Port
8x Gigabit Ethernet Ports
2x 10Gigabit SFP+ Ports
Network Standard
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
Advanced Functions
Built-in QoS allows for prioritization of network traffic
Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Transmission Method
Forwarding Mode: Store-and-forward
Data Transmission Rate
Switching Capability: 56Gbps
Total non-blocking throughput: 28Gbps
Forwarding Rate: 41.644Mpps
Packet Buffer: 12Mb
Network Latency: <4µs
MAC Address Table
16K static, dynamic and filtering MAC addresses
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP (pending)
Spanning tree, 32 instances for STP/RSTP/MSTP
Environment
Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
Hardware Features
LED
1x tri-color LED for device tracking and status indication
8x yellow-color LEDs
Dimensions (L x W x H)
330mm(L)x176mm(W)x44mm(H)
Weight
1.45Kg
Manufacture Warranty
Warranty
1 Year
