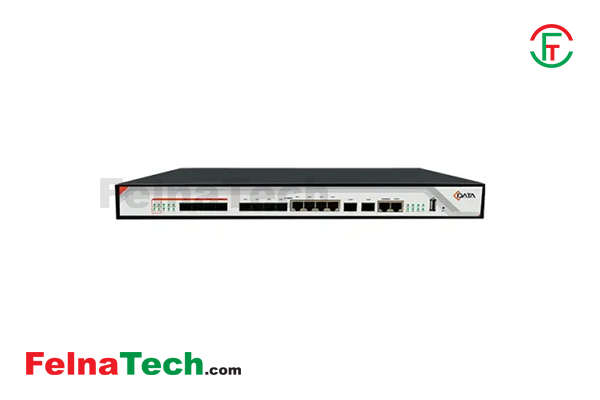

C-Data FD1608S-B0 GPON 8 PORT OLT
Model: FD1608S-B0
Brand: C-Data
Code: 2110929619
| Management Rack | |
|---|---|
| Type | 1U 19-inch standard box |
| Uplink Port | |
|---|---|
| COMBO port | 4*10/100/1000M auto-negotiation Ethernet ports, 4 SFP interfaces |
| 10-Gigabit | 2 SFP+ interfaces |
| PON Port | |
|---|---|
| Quantity | 8 |
| Physical interface | SFP slot |
| Interface type | GPON ITU-TG.984.2 Class B+/Class C+ |
| Max splitting ratio | GPON 1:128 |
| Backplane Bandwidth | 78G |
| Power supply | |
|---|---|
| 220VAC | AC: 100V～240V，47/63Hz |
| -48DC | DC:-40V～-72V |
| Working environment | |
|---|---|
| Working temperature | -15～50℃ |
| Storage temperature | -40～85℃ |
| Relative humidity | 5～90% (Non-condensing) |
| Others | |
|---|---|
| USB Port | 1 USB interface (It’s used to backup configuration, upgrade program, and record log information) |
| Network management method | Support CLI、SNMP、TELNET、SSH、WEB |
| Business capabilities | Ø Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Ø Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on. Ø PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Ø Layer 3 function: support static routing, dhcp-relay and vlanif configuration |
| Backplane Bandwidth | 78G |
| Size | 440mm(L)*240mm(W)*44mm(H) |
| Weight | 4.5kg |
| Maximum power | 78W |
Brand: C-Data
Title: C-Data FD1608S-B0 GPON 8 PORT OLT
Model: FD1608S-B0
Code: 2110904
Category: Networking
Sub Category: OLT
Sub-Sub Category:
Price: 135000
Offer Status: 0
Description:
Management Rack
Type1U 19-inch standard box
Uplink Port
COMBO port4*10/100/1000M auto-negotiation Ethernet ports, 4 SFP interfaces
10-Gigabit2 SFP+ interfaces
PON Port
Quantity8
Physical interfaceSFP slot
Interface typeGPON ITU-TG.984.2 Class B+/Class C+
Max splitting ratioGPON 1:128
Backplane Bandwidth78G
Power supply
220VACAC: 100V～240V，47/63Hz
-48DCDC:-40V～-72V
Working environment
Working temperature-15～50℃
Storage temperature-40～85℃
Relative humidity5～90% (Non-condensing)
Others
USB Port1 USB interface (It’s used to backup configuration, upgrade program, and record log information)
Network management methodSupport CLI、SNMP、TELNET、SSH、WEB
Business capabilitiesØ Support device log, device upgrade, device management, condition monitoring, configuration management, and user management.
Ø Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on.
Ø PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.
Ø Layer 3 function: support static routing, dhcp-relay and vlanif configuration
Backplane Bandwidth78G
Size440mm(L)*240mm(W)*44mm(H)
Weight4.5kg
Maximum power78W
