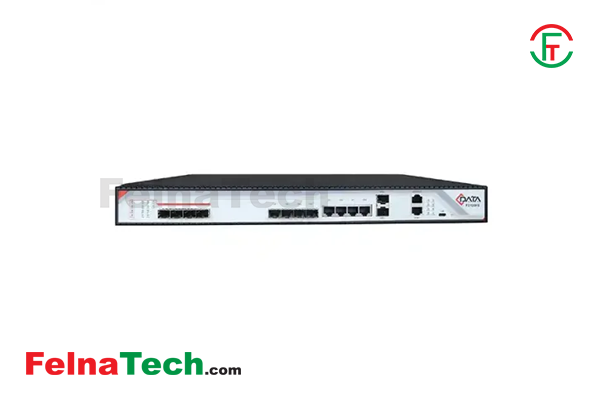

C-Data FD1204S-B0-NDA0 4 Port E-PON OLT
Model: FD1204S-B0-NDA0
Brand: C-Data
Code: 2110929621
| Uplink Port | |
|---|---|
| QTY | 10 |
| Copper | 10/100/1000M auto-negotiable,RJ45:4pcs |
| Optical interface | 4 GE |
| 10Gb uplink interface | 2*10Gb |
| PON Port | |
|---|---|
| QTY | 4 |
| Physical Interface | SFP Slots |
| Connector Type | 1000BASE-PX20+ |
| Max splitting ratio | 1:64 |
| USB Port | |
|---|---|
| QTY | 1 |
| Connector Type | Type-C |
| PON Port Specification | |
|---|---|
| Transmission Distance | 20KM |
| PON port speed | Symmetrical 1.25Gbps |
| Wavelength | 1490nm TX,1310nm RX |
| Connector | SC/PC |
| Fiber Type | 9/125μm SMF |
| TX Power | +2.5～+7dBm |
| Rx Sensitivity | -27dBm |
| Saturation Optical Power | -6dBm |
| 10Gb SFP+ Port Specification | |
|---|---|
| Transmission Distance | 10KM |
| PON port speed | 8.5-10.51875Gbps |
| Wavelength | 1310nmTX，1310nmRX |
| Connector | LC |
| Fiber Type | Single mode with dual fiber |
| TX Power | -8.2~+0.5 dBm |
| Rx Sensitivity | -12.6dBm |
| Power Supply | |
|---|---|
| 220VAC | AC: 100V～240V，50/60Hz |
| -48DC | DC：-40V~-72V |
| Operating Environment | |
|---|---|
| Working Temperature | -15～50℃ |
| Storage Temperature | -40～85℃ |
| Relative Humidity | 5～90%(non-condensing) |
| Others | |
|---|---|
| Power Consumption | 60W |
| Weight | 4kg |
| Size | 440mm(L)*230mm(W)*44mm(H) |
| Management Ports | 1 100/1000 BASE-Tx out-band Ethernet port 1 CONSOLE local management port |
| Management Mode | SNMP, Telnet, CLI management mode. |
| Management Function | Fan Group Detecting Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management Alarm management |
| Layer-two Switch | Support port VLan and protocol Vlan Support Vlan tag/Untag ,vlan transparent transmission; Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port ,VID,TOS and MAC address IGMP Snooping 802.x flow control Port stability statistic and monitoring |
| EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels. Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP,IGMP Proxy |
Brand: C-Data
Title: C-Data FD1204S-B0-NDA0 4 Port E-PON OLT
Model: FD1204S-B0-NDA0
Code: 2110902
Category: Networking
Sub Category: OLT
Sub-Sub Category:
Price: 52000
Offer Status: 0
Description:
Uplink Port
QTY10
Copper10/100/1000M auto-negotiable,RJ45:4pcs
Optical interface4 GE
10Gb uplink interface2*10Gb
PON Port
QTY4
Physical InterfaceSFP Slots
Connector Type1000BASE-PX20+
Max splitting ratio1:64
USB Port
QTY1
Connector TypeType-C
PON Port Specification
Transmission Distance20KM
PON port speedSymmetrical 1.25Gbps
Wavelength1490nm TX,1310nm RX
ConnectorSC/PC
Fiber Type9/125μm SMF
TX Power+2.5～+7dBm
Rx Sensitivity-27dBm
Saturation Optical Power-6dBm
10Gb SFP+ Port Specification
Transmission Distance10KM
PON port speed8.5-10.51875Gbps
Wavelength1310nmTX，1310nmRX
ConnectorLC
Fiber TypeSingle mode with dual fiber
TX Power-8.2~+0.5 dBm
Rx Sensitivity-12.6dBm
Power Supply
220VACAC: 100V～240V，50/60Hz
-48DCDC：-40V~-72V
Operating Environment
Working Temperature-15～50℃
Storage Temperature-40～85℃
Relative Humidity5～90%(non-condensing)
Others
Power Consumption60W
Weight4kg
Size440mm(L)*230mm(W)*44mm(H)
Management Ports1 100/1000 BASE-Tx out-band Ethernet port
1 CONSOLE local management port
Management ModeSNMP, Telnet, CLI management mode.
Management FunctionFan Group Detecting
Port Status monitoring and configuration management;
Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;
EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc;
Online ONU configuration and management
User management
Alarm management
Layer-two SwitchSupport port VLan and protocol Vlan
Support Vlan tag/Untag ,vlan transparent transmission;
Support 4096 VLAN
Support 802.3dd trunk
RSTP
QOS based on port ,VID,TOS and MAC address
IGMP Snooping
802.x flow control
Port stability statistic and monitoring
EPON FunctionSupport port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.
Support power-off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support dynamic distance calculation on EMS online
Support RSTP,IGMP Proxy
