V-SOl V1600G0-B 4 Port GPON OLT

Brand: VSOL

Title: V-SOl V1600G0-B 4 Port GPON OLT

Model: V1600G0-B

Code: 2110929602

Category: Networking / ISP / OLT

Product Type: OLT

Price: 84500

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1600G0-B 4-Port GPON OLT

Technical Specifications:

Model: V1600G0-B
PON Interface: 4 × GPON Ports (SFP Slots, Class B+/C+ module compatibility)
Uplink Interface: 4 × GE (Copper) + 2 × 1GE (SFP) + 2 × 10GE (SFP+) Uplink Ports
Management Ports: 1 × 10/100BASE-T out-of-band port, 1 × CONSOLE port
Splitting Ratio: 1:128 max splitting ratio per GPON port
ONU Capacity: Supports up to 512 ONUs/ONTs simultaneously (128 per port)
Backplane Bandwidth: 78 Gbps switching capacity for non-blocking wire-speed forwarding
Layer 2/3 Features: VLAN (802.1Q, QinQ), QoS, IGMP Snooping, Static Route, DHCP Server
LED Status Indicators: PWR, SYS, PON, LINK/ACT for easy status monitoring

Physical Specs: Standard 1U 19-inch Rack-mount | Weight: ~4.5kg | Dual AC/DC Power Supplies

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

High-Density Port Configuration: Equipped with 4 GPON ports, 4 Gigabit Copper uplinks, 2 Gigabit SFP, and 2 ultra-fast 10G SFP+ uplink ports for massive bandwidth backhaul.

Massive Client Capacity: Supports a 1:128 splitting ratio, allowing network administrators to connect and manage up to 512 ONUs/ONTs from a single, compact unit.

Dual Power Supply Redundancy: Features hot-swappable dual power inputs (AC+DC) to guarantee uninterrupted, 24/7 carrier-grade uptime and power backup resiliency.

Advanced Layer 3 Routing: Supports Layer 3 static routing, RIP, and OSPF protocols, reducing the load on core routers and optimizing local traffic distribution.

IPTV & Multicast Optimization: Fully integrated with IGMP Snooping and Multicast VLAN to ensure smooth, high-definition IPTV streaming and minimal network jitter.

Enterprise-Grade Security: Outfitted with Access Control Lists (ACL), packet filtering, broadcast storm control, and anti-DDoS protection to safeguard your network core.

Flexible QoS & Bandwidth Control: Allows ISPs to allocate bandwidth dynamically (DBA) and prioritize critical traffic (VoIP, Video) via SLA management.

Carrier-Grade Remote Management: Comprehensive management options including EMS (Element Management System), Web UI, Telnet, CLI, and SNMP for simplified provisioning and mass ONT firmware upgrades.

Product Overview:

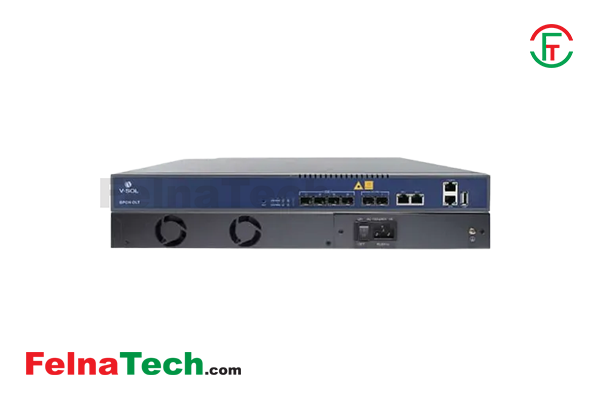

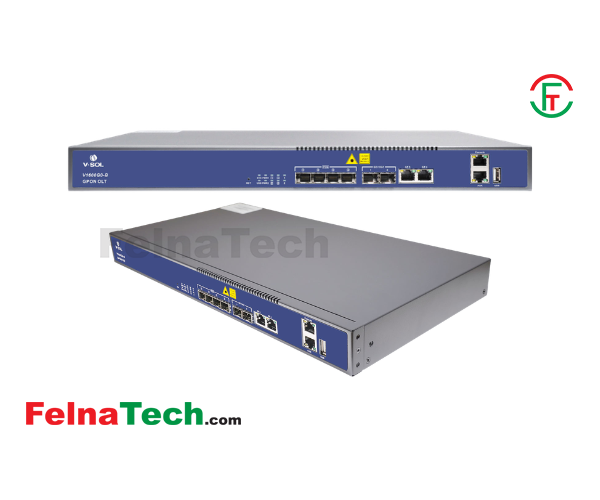

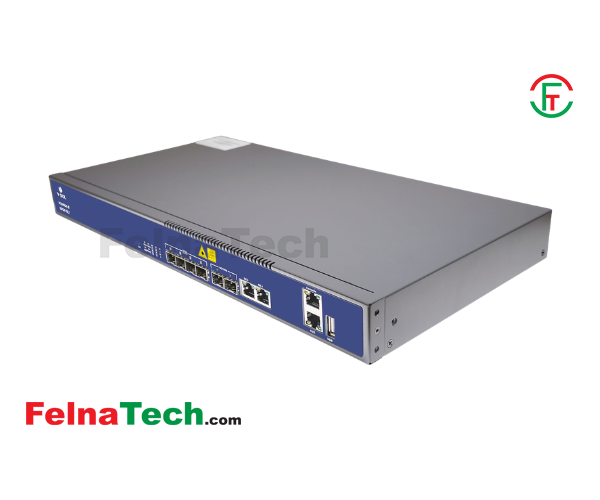

The V-SOL V1600G0-B is a high-performance, carrier-grade 4-Port GPON OLT (Optical Line Terminal) engineered to deliver robust, high-speed fiber broadband infrastructure for FTTH (Fiber to the Home) and FTTB (Fiber to the Building) networks across Bangladesh.
Housed in a compact, space-saving 1U standard rack-mount design, this OLT provides an exceptional balance of high port density, advanced Layer 3 routing functionality, and budget-friendly scalability for emerging and established Internet Service Providers (ISPs).

Equipped with 4 GPON ports capable of serving up to 512 subscribers, alongside dual 10G SFP+ uplink ports, the V1600G0B ensures completely bottleneck-free data transmission. Its dual-power redundancy (AC+DC) guarantees maximum operational uptime,
making it the perfect central office solution for residential broadband networks, corporate complexes, and localized campus deployments demanding high stability and low maintenance overhead.

Buy V-SOL V1600G0-B 4 Port GPON OLT in Bangladesh at the best price. High-performance FTTH solution with 4 GPON ports, 10GE uplink, 1:128 split ratio support, and reliable ISP-grade fiber network performance. Ideal for internet service providers and enterprise fiber networks. Available in Bangladesh with fast delivery and warranty support.
