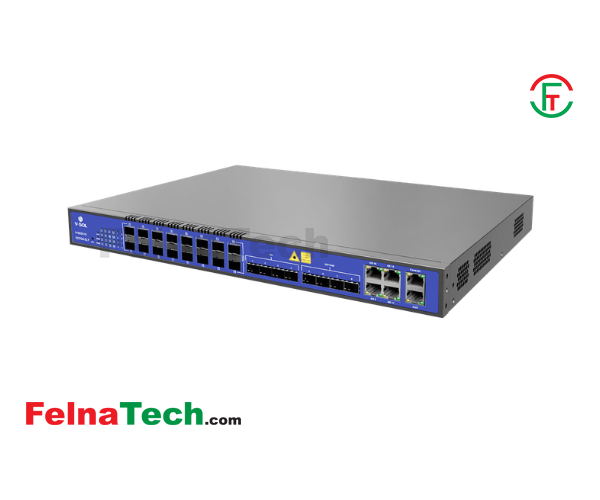

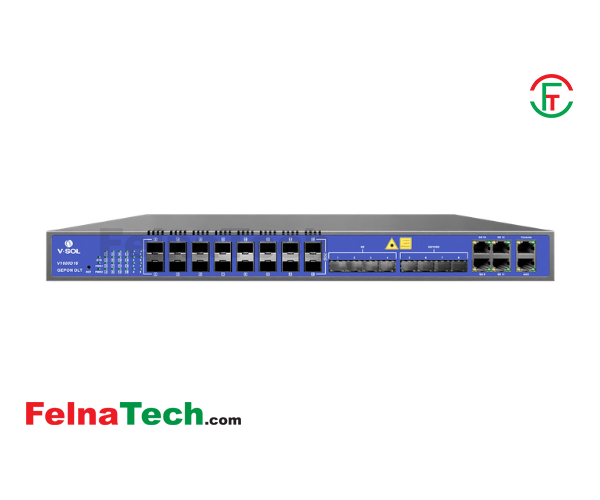

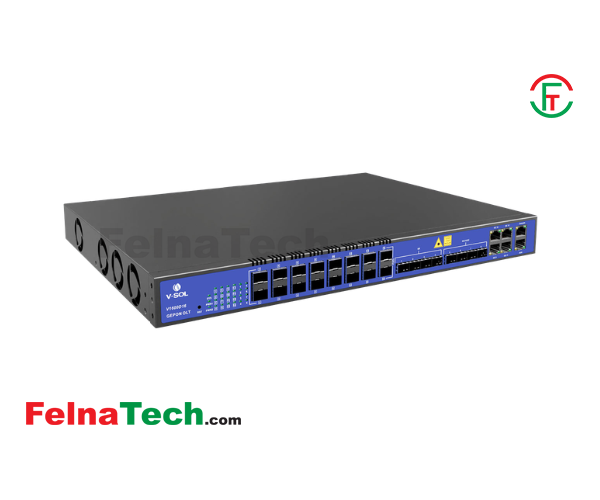

V-SOL V1600D16 16-Port EPON OLT with 10G Uplink (Dual Power)

Brand: VSOL

Title: V-SOL V1600D16 16-Port EPON OLT with 10G Uplink (Dual Power)

Model: V1600D16

Code: 2110929624

Category: Networking / ISP / OLT

Product Type: Networking

Price: 145000

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1600D16 16-Port EPON OLT with 10G Uplink (Dual Power)

Technical Specifications:

Model: V1600D16

Form Factor: 1U 19-Inch Standard Rackmount Box
EPON Ports: 16 × EPON Ports (SFP Slots)
Uplink Interfaces: * 4 × RJ45 Gigabit Ethernet (GE) Ports   4 × SFP (1GE) / SFP+ (10GE) Slots
Max Splitting Ratio: 1:64 (Supports up to 1,024 ONTs per OLT)
EPON Port Speed: Upstream: 1.25 Gbps | Downstream: 1.25 GbpsOptical Parameters: Wavelength: TX 1490nm, RX 1310nm  | Connector Type: SC/UPC  | Fiber Type: 9/125µm SMF (Single Mode Fiber)
Supported PON Modules: PX20, PX20+, PX20++, PX20+++
Transmission Distance: Up to 20 KM
Switching Performance: Backplane
Bandwidth: 240 Gbps  |
Port Forwarding Rate: 124.992 Mpps
Layer 2 Features: 32K MAC Address Table , 4096 VLANs , QinQ , LACP (Static/Dynamic) , Broadcast Storm Control , Port Isolation   Multicast & IPTV: IGMP Snooping , 16K IP Multicast Groups
Security Management: Access Control List (ACL) , Radius & Tacacs+ , IP Source Guard , Port Stability Statistics
Management Ports: 1 × 10/100/1000BASE-T out-band port , 1 × CONSOLE port , 1 × Type-C USB (for console) , 1 × USB 2.0
Management Modes: EMS, WEB, SNMP, Telnet, CLI, SSH v2
Power Supply Configuration: * Dual Power Slot Architecture (Supports 1*AC, 2*AC, 2*DC, or 1*AC + 1*DC)
AC Working Voltage: 100~240V  | DC Working Voltage: -36~-75V

Physical Specs: Dimensions: 442mm × 319mm × 43.6mm  | Net Weight (Single Power): 4.45kg  | Max Power Consumption: 85W

Key Features:

High-Density Pizza-Box Design for Flexible ISP Deployments:
The V-SOL V1600D16 features a highly compact, 1U rackmount pizza-box design engineered to save valuable server room space. This makes it an outstanding choice for low-density areas, remote rural expansions, smart industrial parks, commercial complexes, and FTTM (Fiber to the Mobile) deployment scenarios across Bangladesh.

Massively Scalable 16-Port EPON Capacity:
Equipped with 16 high-performance EPON slots, this OLT supports a splitting ratio of 1:64 per port, allowing internet service providers to seamlessly connect up to 1,024 user ONUs/ONTs from a single 1U device. This massive scalability drastically reduces initial capital expenditure (CapEx) and long-term operational expenses (OpEx).

Blazing-Fast 10G Uplinks to Eliminate Bottlenecks:
Keep your data traffic moving smoothly with a high-capacity uplink configuration. The V1600D16 features 4 Gigabit RJ45 ports alongside 4 ultra-fast SFP/SFP+ slots that support up to 10G uplinks. Backed by a massive 240 Gbps backplane bandwidth, it easily handles high-bandwidth data requirements for corporate and home internet users alike.

Advanced Layer 2 Switching & Link Protection:
Build a secure and lightning-fast local network infrastructure. This EPON OLT natively supports a 32K MAC address table , 4096 VLAN configurations , QinQ , and advanced port isolation. For high-availability link protection, it includes comprehensive uplink redundancy featuring LACP, STP, RSTP, and MSTP protocols to prevent unexpected downtimes.

Carrier-Class Security & Threat Protection:
Keep your entire fiber distribution network completely guarded against cyber threats. The V1600D16 comes heavily equipped with enterprise-grade network safety features like Access Control Lists (ACL) , IP Source Guard , Broadcast Storm Resistance , and AAA authentication via Radius/Tacacs+ to ensure the safe and reliable operation of your infrastructure.

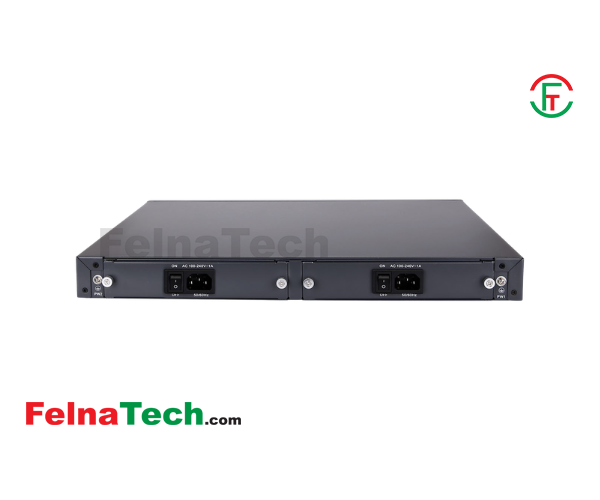

Dual Modular Power Redundancy for Bangladesh Power Conditions:
Specially configured to withstand the power stability challenges common in regional areas of Bangladesh, the OLT features dual modular power slots. Network operators can choose from flexible hybrid setups—including Dual AC, Dual DC, or AC+DC combinations—ensuring seamless, uninterrupted internet service even during sudden grid failures.

Simplified Remote Management & Automatic ONT Discovery:
Say goodbye to complex on-site adjustments. The OLT completely supports multiple management modes, including an intuitive WEB interface, CLI, Telnet, SNMP, and dedicated EMS software. It enables auto-discovery of client ONTs, automatic link detection, and remote bulk software upgrades with ease.

The V-SOL V1600D16 is a premium, high-density 16-Port EPON OLT engineered to deliver highly stable, cost-effective, and scalable fiber broadband infrastructure across Bangladesh. Designed specifically for rising internet service
providers (ISPs), local cable operators (MSOs), and corporate network grids, this robust 1U rackmount EPON OLT empowers operators to expand their fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) footprints rapidly and
efficiently.Powered by an elite switching core boasting a 240 Gbps backplane bandwidth , the V1600D16 manages 16 EPON ports that comfortably connect up to 1,024 ONTs over long-distance optical links reaching up to 20 KM. What truly
sets it apart from budget OLTs is its integrated 10G SFP+ uplink capability and rich Layer 2 management tools, ensuring your network can effortlessly stream buffer-free digital IPTV services, low-latency corporate data, and intense
gaming traffic. Complemented by flexible dual hot-swappable power supply support (AC/DC) and enterprise-grade EMS management, the VSOL V1600D16 stands as the ultimate future-proof foundation for Bangladeshi ISPs looking for premium
performance, zero network lag, and unmatched reliability without breaking the bank.

Buy VSOL V1600D16 16-Port EPON OLT in Bangladesh at the best price. Features 16 EPON ports, 4×GE RJ45, 4×GE SFP, 4×10GE SFP+ uplinks, dual power supply, and support for up to 1024 ONUs. Ideal for FTTH and ISP fiber networks.
