V-SOL V1601E04-DP 4-Port EPON OLT 10G

Brand: OLT / VSOL

Title: V-SOL V1601E04-DP 4-Port EPON OLT 10G

Model: V1601E04-DP

Code: 2110929627

Category: Networking / ISP / OLT

Product Type: Networking

Price: 39500

Warranty: 1

Availability: Available/In Stock

Description:

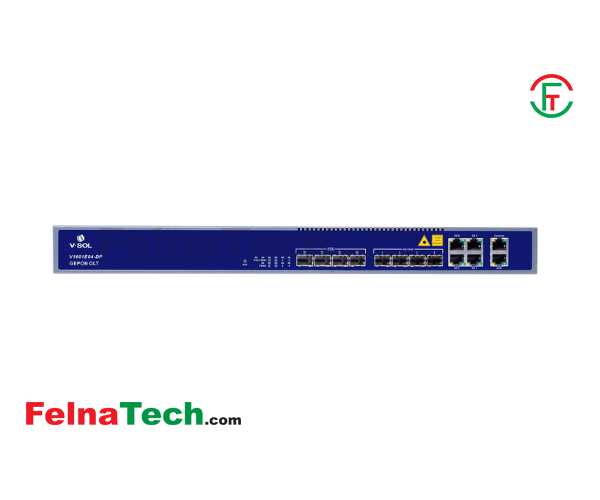

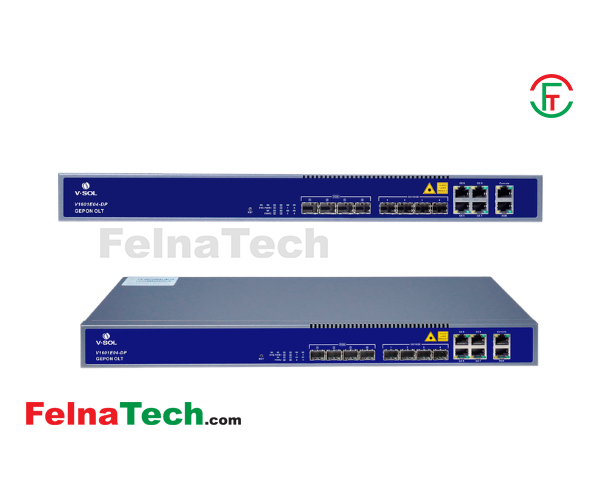

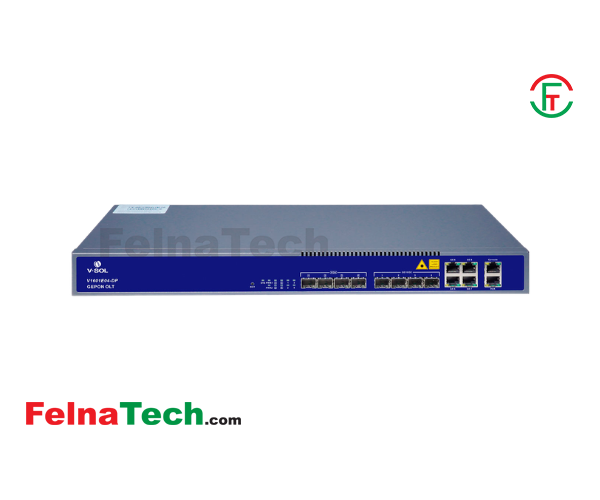

V-SOL V1601E04-DP 4-Port EPON OLT 10G

Technical Specifications:

Model: V1601E04-DP
Chassis/Form Factor: Standard 1U 19-inch Rackmount Box
EPON Downlink Ports: 4 × EPON Ports (SFP Slots)
Uplink Interfaces: 4 × Gigabit RJ45 Copper Ports + 4 × 10G SFP/SFP+ Slots (Independent)
Max Splitting Ratio: 1:64 per PON port (Supports up to 256 ONUs total)
Backplane Bandwidth: 208 Gbps / Port Forwarding Rate: 71.424 Mpps
Layer 3 Routing Features: Static Route, RIP v1/v2, OSPF v2/v3, ARP Proxy, PPPoE+
Layer 2 Features: 16K MAC Address, 4096 VLANs, QinQ, Port Aggregation (LACP), RSTP/MSTP
Power Redundancy Options: DP Version: Dual Power (AC+DC / AC+AC) | BT Version: AC Power + Battery Backup
Management Modes: SNMP, Telnet, CLI, WEB, SSH v2, EMS Remote Management

Physical Specs: Dimensions: 442 × 200 × 43.6 mm | Weight: ~2.705 kg | Max Power Consumption: 30W

Key Features:

High-Capacity ONU Deployment: Equipped with 4 EPON ports supporting a 1:64 splitting ratio, allowing ISPs to seamlessly connect up to 256 client ONUs/ONTs from a single 1U box.

Ultra-Fast 10G Uplink Speeds: Features 4 dedicated SFP/SFP+ slots supporting up to 10G uplinks, preventing network bottlenecks and ensuring high-bandwidth data transmission.

Advanced Layer 3 Routing: Built-in hardware routing capabilities supporting IPv4/IPv6 static routing, RIP, and OSPF protocols for efficient traffic management without needing an external core router.

Carrier-Grade Power Redundancy: Offers ultimate uptime reliability with dual power supplies (DP) or an integrated battery backup module (BT) to prevent network blackouts during power outages.

Robust Network Security: Comprehensive security features including Access Control Lists (ACL), DHCP Snooping, IP Source Guard, IEEE 802.1x, and broadcast storm resistance to secure the ISP network.

Flexible VLAN & Multicast Management: Fully supports IGMP Snooping/Proxy for smooth, lag-free IPTV multicast distribution, along with advanced QinQ and VLAN translation for secure user separation.

Effortless Operations & Maintenance: Supports automated ONU auto-discovery, link detection, remote software upgrades, and dynamic distance calculation via a user-friendly Web UI, CLI, or EMS system.

Product Overview:

The VSOL V1601E04-DP is a carrier-grade, high-performance 4-Port Layer 3 EPON OLT designed to meet the growing demands of FTTH (Fiber to the Home), enterprise LAN networks, and Internet Service Providers (ISPs) across Bangladesh.
Built into a compact 1U 19-inch rackmount chassis, this OLT is an exceptional, space-saving solution for limited server room environments, offering highly reliable "Triple-Play" services (Data, Voice, and IPTV).

Featuring 4 EPON downlink ports, the V1601E04-DP/BT can connect up to 256 ONUs with a stable 1:64 splitting ratio per port. For uplink, it provides unmatched flexibility and data throughput by integrating 4 Gigabit RJ45 copper ports alongside 4 independent
10G SFP/SFP+ slots. With a massive 208 Gbps backplane bandwidth, it ensures smooth and lag-free data flow even under high network loads.

What sets this VSOL 4-Port OLT apart is its flexible power design. It comes with options for Dual Power Supplies (AC+DC) or an intelligent Battery Backup feature, ensuring your internet distribution network stays live during critical power disruptions.
Managed effortlessly via Web UI, CLI, or SNMP, it stands out as the perfect, cost-effective infrastructure centerpiece for local broadband operators looking to expand their networks with maximum operational efficiency.
