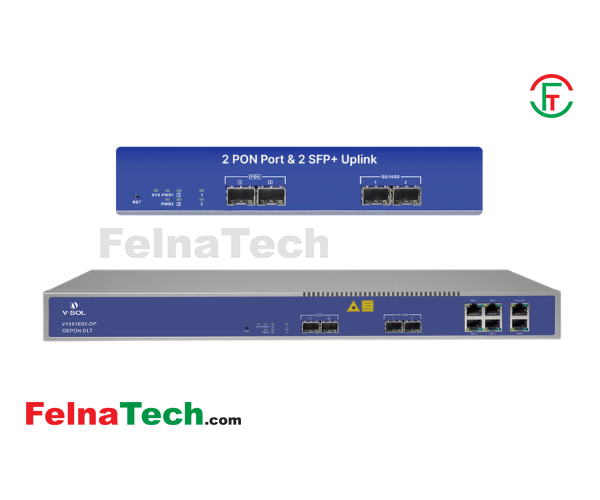

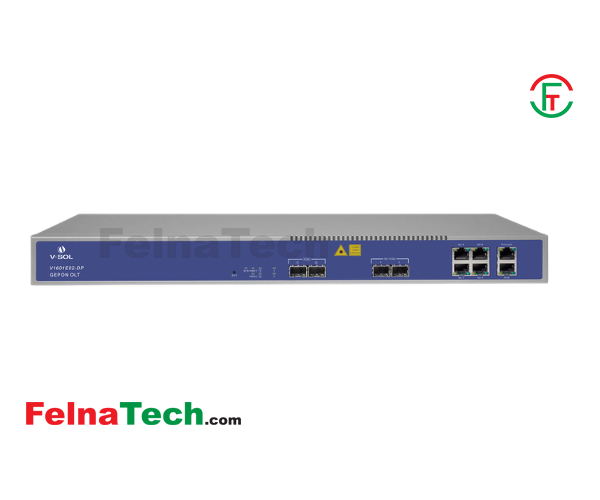

V-SOL V1601E02-DP 2Port EPON OLT 10G UPLINK
Model: V1601E02-DP
Brand: VSOL
Code: 2110929625
V-SOL V1601E02-DP 2Port EPON OLT 10G UPLINK
Technical Specifications:
Model: V1601E02-DP
Chassis / Design: 1U 19-Inch Standard Rackmount Box

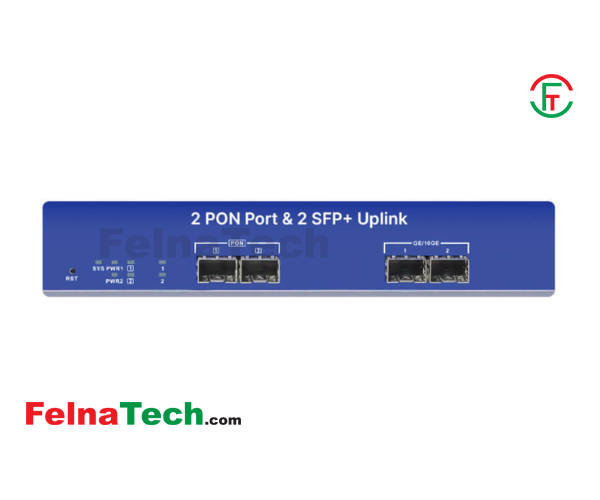

EPON Ports: 2 × EPON Ports (SFP Slots)
Max Splitting Ratio: 1:64 (Supports up to 128 ONUs/ONTS in total)
Supported PON Modules: PX20, PX20+, PX20++, PX20+++, PX20++++
Uplink Interfaces: 4 × 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports + 2 × SFP/SFP+ (1G/10G) Uplink Slots
Management Ports: 1 × 10/100 BASE-T out-band port, 1 × CONSOLE port
Backplane Bandwidth: 128 Gbps Switching Capacity
Port Forwarding Rate: 38.688 Mpps
Layer 3 Features: ARP Proxy, Static Route, RIP v1/v2, OSPF v2/v3, PPPoE+
Layer 2 Features: 16K MAC Address table, VLAN Translation, Q-in-Q, RSTP, MSTP, Port Aggregation
Multicast Support: IGMP Snooping (v1/v2/v3), Supports 8K L2 & L3 Multicast
Power Options: AC: 100~240V, 50/60 Hz | DC: -48V (Dual Power Configuration Support)
Power Consumption: 30W Maximum
Physical Specs: Dimension: 442 × 200 × 43.6 mm | Weight: Compact 1U Form Factor
Operating Environment: Temperature: -20°C to +60°C | Humidity: 5% to 95% (Non-condensing)
Warranty: 1-Year Official Manufacturer Warranty
Key Features & Benefits:
10G High-Speed SFP+ Uplinks: Features 2× SFP/SFP+ slots supporting up to 10Gbps uplink capability, ensuring ultra-fast data transmission and preventing network bottlenecks.
Scalable EPON Capacity: Built with 2 high-performance EPON ports supporting a 1:64 splitting ratio, allowing ISPs to seamlessly connect up to 128 multi-user ONU devices.
Flexible Multi-Interface Setup: Equipped with 4× Gigabit RJ45 copper ports and 2× SFP/SFP+ slots for versatile and highly flexible network core integrations.
Advanced Layer 3 Routing: Fully supports L3 static routing, ARP proxy, and dynamic protocols like RIP and OSPF, making enterprise-grade network expansion effortless.
Robust Security & Protection: Built with Layer 2/Layer 3 ACL packet filtering, Broadcast Storm Resistance, Port Isolation, DHCP Option82, and IP Source Guard for optimal safety.
Efficient Multicast Management: Integrated with IGMP Snooping (supports 8K L2/L3 multicast) to provide lag-free, smooth, and high-quality IPTV and multimedia streaming services.
Carrier-Grade Remote Management: Comprehensive O&M support via SNMP, Telnet, CLI, Web UI, and SSH v2 for automated firmware updates, remote configuration, and easy link monitoring.
Eco-Friendly & Durable Design: Consumes a maximum of just 30W of power while running smoothly in harsh Bangladeshi climates, thanks to its wide operating temperature tolerance (-20°C to +60°C).
Dual Power Supply Support: Designed for continuous uptime with compatible AC/DC dual-input power redundancy to protect against unexpected power outages.
Product Overview:
The VSOL V1601E02-DP is a high-performance, compact, and highly cost-effective 2-Port EPON OLT (Optical Line Terminal) engineered specifically for small-to-medium ISPs, enterprise networks, and large-scale FTTH (Fiber to the Home)
deployments across Bangladesh. Housed in a standard 1U rackmount chassis, this powerful device provides an ideal entry-level solution for local internet service providers looking to expand their fiber networks without massive overhead costs.
Equipped with 2 EPON ports that support a 1:64 optical splitting ratio, the V1601E02-DP can reliably manage up to 128 ONUs/ONTs while delivering symmetrical 1.25Gbps downstream and upstream bandwidth. What sets this OLT apart is its 10G SFP+ uplink capability and
4 Gigabit Ethernet ports, which guarantee smooth, high-bandwidth data handling for demanding applications. Packed with advanced Layer 3 routing (RIP/OSPF), strict security controls, and effortless remote management interfaces (Web UI, CLI, SNMP),
it ensures maximum network stability, making it the perfect backbone for modern fiber optic broadband infrastructures.
Brand: OLT / VSOL
Title: V-SOL V1601E02-DP 2Port EPON OLT 10G UPLINK
Model: V1601E02-DP
Code: 2110929625
Category: Networking / ISP / OLT
Product Type: Networking
Price: 31000
Warranty: 1
Availability: Available/In Stock
Description:
V-SOL V1601E02-DP 2Port EPON OLT 10G UPLINK
Technical Specifications:
Model: V1601E02-DP
Chassis / Design: 1U 19-Inch Standard Rackmount Box
EPON Ports: 2 × EPON Ports (SFP Slots)
Max Splitting Ratio: 1:64 (Supports up to 128 ONUs/ONTS in total)
Supported PON Modules: PX20, PX20+, PX20++, PX20+++, PX20++++
Uplink Interfaces: 4 × 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports + 2 × SFP/SFP+ (1G/10G) Uplink Slots
Management Ports: 1 × 10/100 BASE-T out-band port, 1 × CONSOLE port
Backplane Bandwidth: 128 Gbps Switching Capacity
Port Forwarding Rate: 38.688 Mpps
Layer 3 Features: ARP Proxy, Static Route, RIP v1/v2, OSPF v2/v3, PPPoE+
Layer 2 Features: 16K MAC Address table, VLAN Translation, Q-in-Q, RSTP, MSTP, Port Aggregation
Multicast Support: IGMP Snooping (v1/v2/v3), Supports 8K L2 & L3 Multicast
Power Options: AC: 100~240V, 50/60 Hz | DC: -48V (Dual Power Configuration Support)
Power Consumption: 30W Maximum
Physical Specs: Dimension: 442 × 200 × 43.6 mm | Weight: Compact 1U Form Factor
Operating Environment: Temperature: -20°C to +60°C | Humidity: 5% to 95% (Non-condensing)
Warranty: 1-Year Official Manufacturer Warranty
Key Features & Benefits:
10G High-Speed SFP+ Uplinks: Features 2× SFP/SFP+ slots supporting up to 10Gbps uplink capability, ensuring ultra-fast data transmission and preventing network bottlenecks.
Scalable EPON Capacity: Built with 2 high-performance EPON ports supporting a 1:64 splitting ratio, allowing ISPs to seamlessly connect up to 128 multi-user ONU devices.
Flexible Multi-Interface Setup: Equipped with 4× Gigabit RJ45 copper ports and 2× SFP/SFP+ slots for versatile and highly flexible network core integrations.
Advanced Layer 3 Routing: Fully supports L3 static routing, ARP proxy, and dynamic protocols like RIP and OSPF, making enterprise-grade network expansion effortless.
Robust Security & Protection: Built with Layer 2/Layer 3 ACL packet filtering, Broadcast Storm Resistance, Port Isolation, DHCP Option82, and IP Source Guard for optimal safety.
Efficient Multicast Management: Integrated with IGMP Snooping (supports 8K L2/L3 multicast) to provide lag-free, smooth, and high-quality IPTV and multimedia streaming services.
Carrier-Grade Remote Management: Comprehensive O&M support via SNMP, Telnet, CLI, Web UI, and SSH v2 for automated firmware updates, remote configuration, and easy link monitoring.
Eco-Friendly & Durable Design: Consumes a maximum of just 30W of power while running smoothly in harsh Bangladeshi climates, thanks to its wide operating temperature tolerance (-20°C to +60°C).
Dual Power Supply Support: Designed for continuous uptime with compatible AC/DC dual-input power redundancy to protect against unexpected power outages.
Product Overview:
The VSOL V1601E02-DP is a high-performance, compact, and highly cost-effective 2-Port EPON OLT (Optical Line Terminal) engineered specifically for small-to-medium ISPs, enterprise networks, and large-scale FTTH (Fiber to the Home)
deployments across Bangladesh. Housed in a standard 1U rackmount chassis, this powerful device provides an ideal entry-level solution for local internet service providers looking to expand their fiber networks without massive overhead costs.
Equipped with 2 EPON ports that support a 1:64 optical splitting ratio, the V1601E02-DP can reliably manage up to 128 ONUs/ONTs while delivering symmetrical 1.25Gbps downstream and upstream bandwidth. What sets this OLT apart is its 10G SFP+ uplink capability and
4 Gigabit Ethernet ports, which guarantee smooth, high-bandwidth data handling for demanding applications. Packed with advanced Layer 3 routing (RIP/OSPF), strict security controls, and effortless remote management interfaces (Web UI, CLI, SNMP),
it ensures maximum network stability, making it the perfect backbone for modern fiber optic broadband infrastructures.
