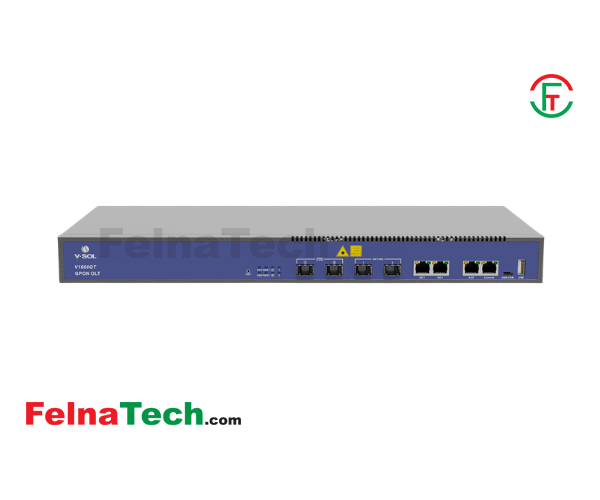

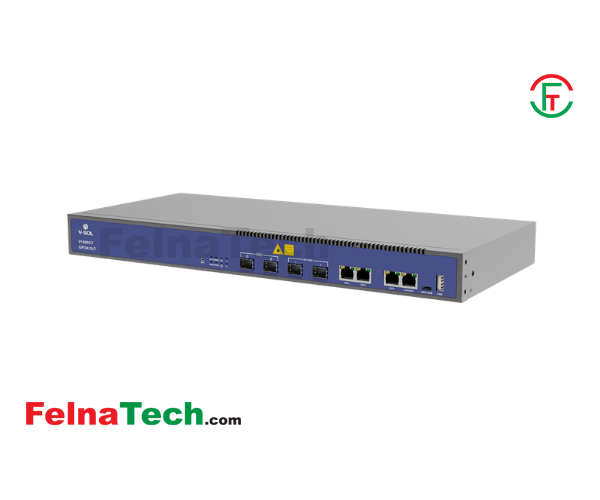

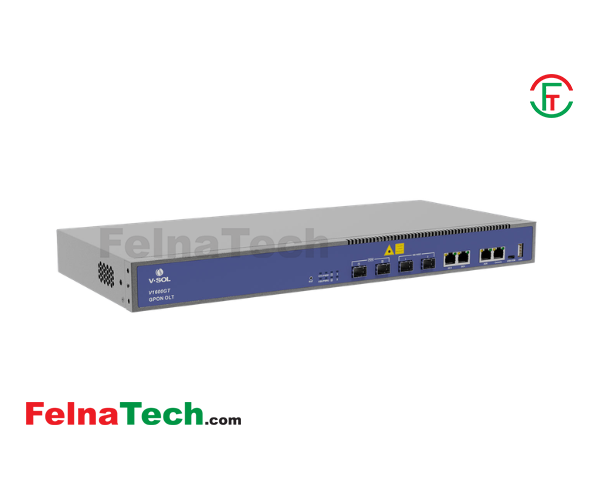

V-SOL V1600GT 2 Port GPON OLT

Brand: OLT / VSOL

Title: V-SOL V1600GT 2 Port GPON OLT

Model: V1600GT

Code: 2110929629

Category: Networking / ISP / OLT

Product Type: OLT

Price: 53000

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1600GT 2 Port GPON OLT

Technical Specifications:

Model: V1600GT
Chassis / Rack: 1U 19-Inch Standard Box Design
GPON Ports: 2 × GPON Ports (SFP+ Slots)
Uplink Ports: 4 Ports (2 × RJ45 Gigabit Ethernet Ports + 2 × SFP/SFP+ 10GE Slots)
Max Splitting Ratio: 1:128 (Supports up to 256 ONUs/ONTs total)
Supported PON Modules: Class C++ / Class C+++ / Class C++++
Backplane Bandwidth: 208 Gbps
Port Forwarding Rate: 40.176 Mpps
Management Ports: 1 × 10/100/1000BASE-T Out-Band Port, 1 × CONSOLE Port, 1 × USB-COM, 1 × USB 2.0
Power Supply: Dual-Option Compatibility (AC: 100~240V | DC: -36~-75V)
Management Modes: WEB, Telnet, CLI (Command Line Interface)

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

High-Density Compact FTTX Access: Designed in a standard 1U 19-inch rackmount chassis, making it an excellent space-saving choice for low-density or small-scale fiber application deployments.

10G High-Speed Uplinks: Equipped with 2× 10GE SFP+ uplink ports and 2× Gigabit RJ45 ports to prevent bandwidth bottlenecks and ensure ultra-smooth data backhaul.

Massive Connectivity Capacity: With a 1:128 splitting ratio across its 2 GPON ports, this OLT can efficiently manage and power up to 256 client ONUs/ONTs simultaneously.

Extended Transmission Distance: Supports standard Class C+++ modules, facilitating reliable fiber transmission distances up to 20KM with optimal Tx/Rx sensitivity.

Telecom-Grade Security & Stability: Built-in advanced network security protocols to ensure stable service delivery, broadcast storm control, and anti-DDoS protection.

Flexible Dual-Power Options: Supports both AC and DC working voltage ranges, allowing local ISPs to optimize setup according to their server room power requirements.

Optimized TCO (Total Cost of Ownership): Minimalist design and energy-efficient architecture drastically reduce deployment, operational, and maintenance costs.

Carrier-Grade Remote Management: Network administrators can easily configure, monitor, and update the system via intuitive Web UI, Telnet, or advanced CLI.

The VSOL V1600GT is a minimalist, high-performance, and budget-friendly 2-Port GPON OLT designed specifically for FTTM (Fiber to the Mobile) and small-scale FTTH (Fiber to the Home) deployments across Bangladesh. Encased in a compact 1U 19-inch standard
rackmount box, this device offers localized Internet Service Providers (ISPs) a highly efficient, simplified layout for building or expanding their fiber networks without massive upfront investments.

Equipped with 2x GPON ports capable of a 1:128 splitting ratio, the V1600GT can seamlessly connect and manage up to 256 ONUs/ONTs. To eliminate transmission bottlenecks, it boasts dual 10G SFP+ uplink capability alongside standard Gigabit Ethernet interfaces,
providing a robust 208 Gbps backplane bandwidth. Powered by comprehensive remote management platforms like WEB UI and CLI, the V1600GT delivers significant TCO optimization, making it the perfect all-in-one entry-level OLT solution for small cities,
corporate buildings, and regional ISP networks.
