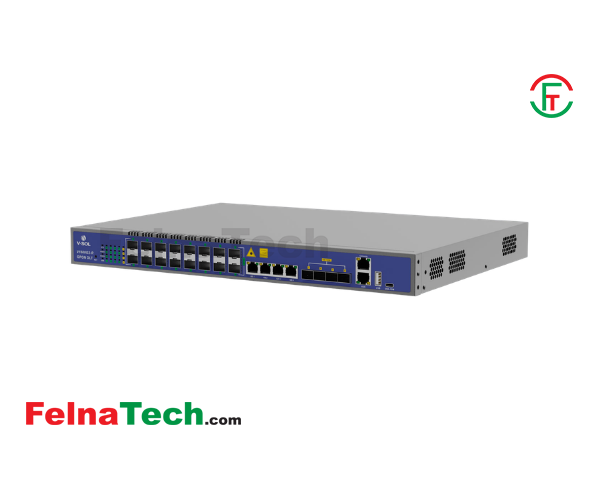

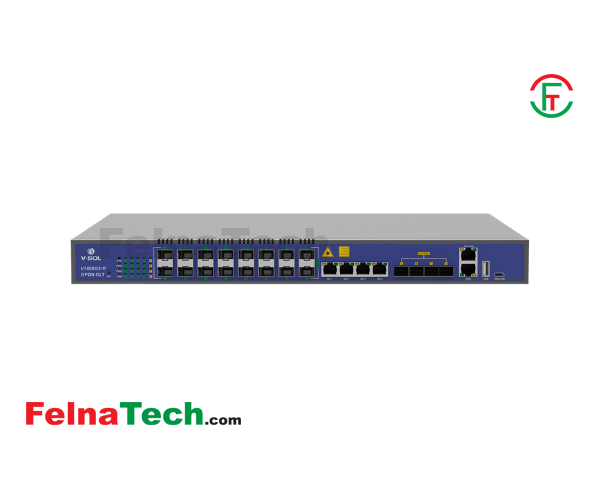

V-SOL V1600G2-R 16 Port Layer 3 GPON OLT
Model: V1600G2-R
Brand: VSOL
Code: 2110929623
V-SOL V1600G2-R 16 Port Layer 3 GPON OLT
Model: V1600G2-R
The V-SOL V1600G2-R is a high-performance, carrier-class 16-port GPON OLT designed in a compact 1U 19-inch rack-mount standard box. Built for flexible, fast, and highly scalable FTTx deployment, this Layer 3 GPON OLT is the perfect fit for internet service providers (ISPs) in Bangladesh looking to build robust network infrastructures in urban, suburban, or sparse/remote rural areas.
With its pizza-box design, it seamlessly supports FTTM (Fiber to the Mobile) and site/rack sharing with wireless base stations, dramatically reducing your network's overall CapEx and OpEx.
Key Features & Highlights:
High Density & Scalability: Features 16 GPON ports supporting a maximum splitting ratio of 1:128, allowing you to connect up to 2,048 ONTs/ONUs on a single 1U device.
Versatile Uplink Ports: Equipped with 4x RJ45 (GE) copper ports and 4x SFP(GE)/SFP+(10GE) slots for high-bandwidth uplink flexibility.
Advanced Layer 3 Routing: Fully supports dynamic routing protocols including RIP v1/v2, RIPng, and OSPF v2/v3, alongside standard static routing.
Massive Bandwidth & Performance: Packed with a 240 Gbps Backplane Bandwidth and a 124.992 Mpps Port Forwarding Rate for zero-packet-drop performance under heavy loads.
Flexible Power Options: Supports single or dual redundant power supplies, including AC (100~240V), DC (-36~-75V), or a hybrid AC+DC configuration to ensure 24/7 uptime.
Comprehensive IPv6 Support: Ready for the next generation of internet routing with full support for NDP, IPv6 Ping, IPv6 Telnet, and specialized IPv6 ACLs.
Technical Specifications
FeatureSpecification:
GPON Ports: 16* SFP Slots (SC/UPC Connector)
Uplink Ports: 4* RJ45 (GE) + 4* SFP(GE)/SFP+(10GE)
Max Splitting Ratio: 1:128
GPON Port Speed:
Upstream: 1.244 Gbps / Downstream: 2.488 Gbps
Transmission Distance: Up to 20 KMSupported PON Modules: Class B+, C, C+, C++, C+++, C++++
MAC Address Table: 32K Mac addresses
Management Interfaces:
1* Out-band port, 1* CONSOLE port, 1* USB2.0, 1* Type-C
Management Modes: EMS, WEB, SNMP, Telnet, CLI, SSH v2
Power Consumption: 85W
Dimensions: 442mm * 319mm * 43.6mm (1U Rackmount)
Why Choose V-SOL V1600G2-R for Your ISP in Bangladesh?
1. Built for Diverse Geographical Terrains
Whether you are expanding broadband coverage in low-density rural villages or establishing high-speed connections in smart industrial zones or commercial buildings, the V1600G2-R adapts effortlessly. Its lightweight and compact design makes delivery and installation easy even in limited room spaces, basements, or small outdoor cabinets.
2. Carrier-Grade Security & Redundancy
Keep your network running securely with uplink redundancy protections like LACP, STP, RSTP, and MSTP. To protect your broadband business from malicious activity, it includes IP Source Guard, Access Control Lists (ACL), and Radius/Tacacs+ authentication.
3. Smart ONT Management
Simplify your operations with automatic ONT discovery, automatic link detection, and easy remote software upgrades. It also supports data encryption and a built-in power-off alarm function, making it incredibly easy for your support team to detect local fiber line or client-side link problems instantly.
Buy V-SOL V1600G2-R 16-Port Layer 3 GPON OLT in Bangladesh at the best price. Ideal for ISP and FTTH networks, this high-performance 1U rack mount OLT supports 16 GPON ports, advanced Layer 3 routing, and large-scale fiber broadband deployment with up to 2048 users capacity. Perfect solution for scalable and reliable ISP fiber network infrastructure in Bangladesh.
V-SOL V1600G2-R 16-Port Layer 3 GPON OLT
The V-SOL V1600G2-R 16-Port Layer 3 GPON OLT is designed for Internet Service Providers (ISPs) and fiber broadband operators requiring scalable GPON access infrastructure. It features 16 GPON ports, four Gigabit Ethernet RJ45 ports, and four SFP/SFP+ uplink slots supporting compatible 1G or 10G connections.
With a maximum split ratio of 1:128 per GPON port, the V1600G2-R supports up to 2,048 ONUs/ONTs across all 16 ports. Its Layer 3 routing capabilities, flexible uplink interfaces, and centralized management options make it suitable for FTTH, FTTx, and enterprise fiber network deployments.
The compact 1U rack-mount chassis is designed for standard 19-inch equipment racks, helping network operators deploy high-density fiber access equipment efficiently.
Key Features
- 16 GPON Ports: Supports GPON SFP modules for high-density fiber access networks.
- Up to 2,048 ONUs: Supports a maximum 1:128 split ratio per GPON port.
- Flexible Uplinks: Four Gigabit RJ45 ports and four SFP/SFP+ slots for compatible 1G or 10G connections.
- Layer 3 Routing: Supports static routing and routing protocols, including RIP and OSPF, according to the supplied specifications.
- High Switching Capacity: 240 Gbps backplane bandwidth and a listed forwarding rate of 124.992 Mpps.
- IPv6 Support: Includes IPv6-related management and network functions.
- Network Security: Listed features include ACL, IP Source Guard, RADIUS, and TACACS+ authentication.
- Centralized Management: Supports EMS, Web, SNMP, Telnet, CLI, and SSH v2.
- Flexible Power Options: Supports compatible AC and DC power configurations, including dual-power arrangements.
- Rack-Mount Design: 1U chassis for standard 19-inch network racks.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | V-SOL |
| Model | V1600G2-R |
| Device Type | 16-Port Layer 3 GPON OLT |
| GPON Interfaces | 16 × GPON SFP slots |
| Maximum Split Ratio | 1:128 per port |
| Maximum ONU Capacity | Up to 2,048 ONUs/ONTs |
| Downstream GPON Speed | 2.488 Gbps per port |
| Upstream GPON Speed | 1.244 Gbps per port |
| Uplink Interfaces | 4 × Gigabit RJ45 + 4 × SFP/SFP+ slots |
| Uplink Speed | 1G/10G, depending on compatible module |
| Backplane Bandwidth | 240 Gbps |
| Forwarding Rate | 124.992 Mpps |
| MAC Address Table | 32K |
| Routing | Static routing, RIP, OSPF, according to specifications |
| Management Interfaces | Out-of-band port, console, USB 2.0, Type-C |
| Management Modes | EMS, Web, SNMP, Telnet, CLI, SSH v2 |
| Power Consumption | 85W |
| Power Supply | AC 100–240V / DC -36V to -75V, depending on configuration |
| Dimensions | 442 × 319 × 43.6 mm |
| Form Factor | 1U, 19-inch rack-mount |
| Product Code | 2110929623 |
| Warranty | 1 Year |
| Availability | In Stock |
| Price | ৳192,500 |
Applications
- ISP fiber broadband infrastructure
- FTTH and FTTx deployments
- Enterprise fiber access networks
- Residential and commercial broadband networks
- High-density GPON access deployments
Why Choose V-SOL V1600G2-R?
The V-SOL V1600G2-R combines 16 GPON ports, Layer 3 routing capabilities, flexible uplink options, and centralized network management in a compact 1U chassis. Its support for up to 2,048 ONUs makes it suitable for ISPs planning to expand fiber broadband coverage and manage a large number of subscriber connections.
Frequently Asked Questions
1. How many ONUs can the V-SOL V1600G2-R support?
It supports up to 2,048 ONUs/ONTs based on a maximum 1:128 split ratio across 16 GPON ports.
2. Does the V1600G2-R support 10G uplinks?
Yes. The supplied specifications list four SFP/SFP+ slots supporting compatible 1G or 10G uplink modules.
3. What are the GPON transmission speeds?
The listed GPON line rates are 2.488 Gbps downstream and 1.244 Gbps upstream per port.
4. Which management options are available?
The supplied information lists EMS, Web, SNMP, Telnet, CLI, and SSH v2.
