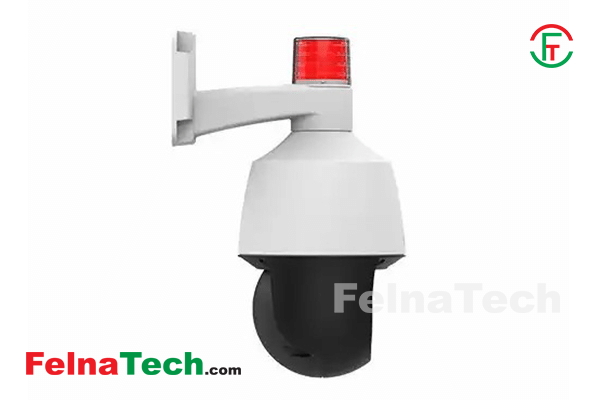

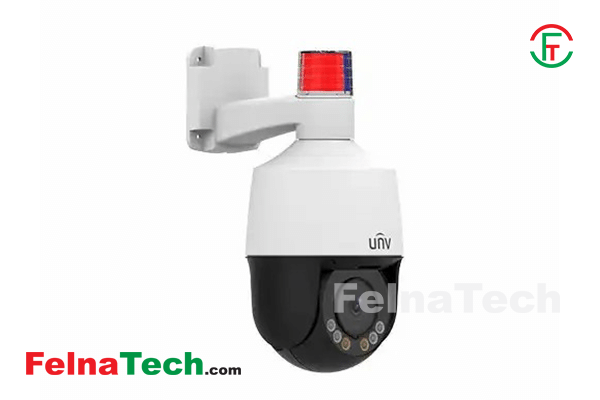

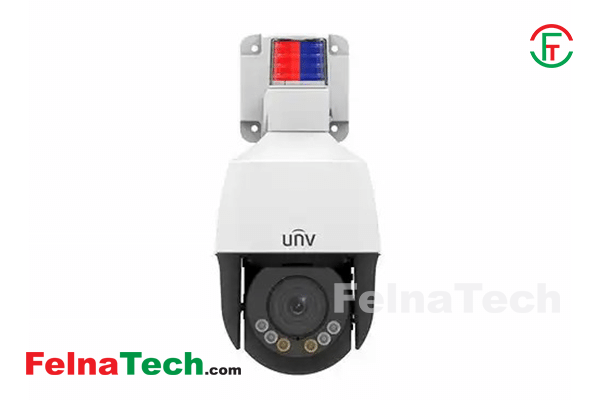

IPC675LFW-AX4DUPKC-VG 5MP LightHunter Active Deterrence Mini PTZ Camera

Brand: Uniview

Title: IPC675LFW-AX4DUPKC-VG 5MP LightHunter Active Deterrence Mini PTZ Camera

Model: IPC675LFW-AX4DUPKC-VG

Code: 161512301

Category: Security / CCTV PTZ Camera / Uniview

Product Type: Security

Price: 18450

Warranty: 1

Availability: Out of Stock

Description:

IPC675LFW-AX4DUPKC-VG

Camera

Sensor

1/2.7" progressive scan, 5.0 megapixel, CMOS

Min. Illumination

Colour:0.002 lux (F1.2,AGC ON)
0 lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, shutter time: 1 s ~ 1/100000 s

WDR

120dB

S/N

>52dB

Lens

Lens type

2.8~12mm, AF automatic focusing and motorized zoom lens

Optical Zoom

4X

Iris

Fixed; F1.2

Field of View (H)

106.9° ~ 30.6°

Field of View (V)

56.0° ~ 17.7°

Field of View (D)

139.0° ~ 37.6°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

2.8mm

63.0 (206.7ft)

25.2 (82.7ft)

12.6 (41.3ft)

12mm

270.0 (885.8ft)

108.0 (354.3ft)

54.0 (177.2ft)

Illuminator

IR Range

Up to 50m (164ft)

Warm Light Range

Up to 10m (33ft)

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 5MP (2880*1620), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps
Third Stream: D1 (720*576), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

ROI

Support

Video Stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°

HLC

Support

BLC

Support

Defog

Digital Defog

Events

Basic Detection

Motion detection, Audio detection, Tampering Alarm

Auto Tracking

Support

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U,G.711A

Two-way Audio

Support

Suppression

Support

Sampling Rate

16 kHz

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

EZStation
EZLive
EZView

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan & Tilt

Pan Range

0° ~ 345°

Pan Speed

0.1°/s ~ 50°/s

Preset speed: 50°/s

Tilt Range

-10° ~ 110°

Tilt Speed

0.1°/s ~ 40°/s

Preset speed: 40°/s

Number of Presets

256

Preset Patrol

16 patrols, up to 64 presets for each patrol

Patrol Stay Time

120s ~ 1800s

Home Position

Support

Interface

Built-in Mic

Support

Built-in Speaker

Support

Network

1 * RJ45 10M/100M Base-TX Ethernet

Alarm Light

Support

Certification

EMC

CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-ROHS (2011/65/EU;(EU)2015/863)

Protection

IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power

DC12V(±25%), PoE(IEEE 802.3af)

Power consumption: MAX 18W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Φ133mm*269mm (Φ5.2”x 10.6”)

Weight

0.87 kg (1.92lb)

Working Environment

-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)

Storage Environment

-40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing)

Surge Protection

2KV

Reset Button

Support
