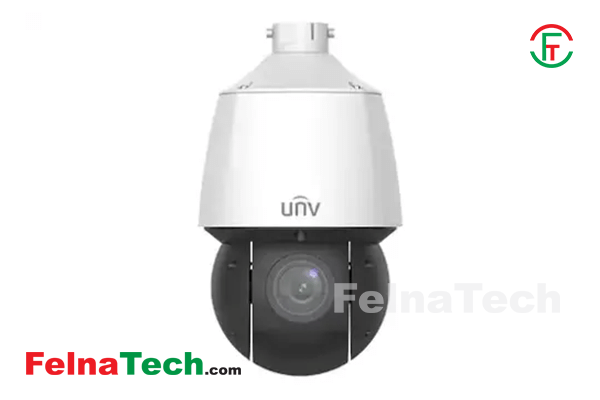

IPC6424SR-X25-VF 4MP 25x Lighthunter Network PTZ Dome Camera

Brand: Uniview

Title: IPC6424SR-X25-VF 4MP 25x Lighthunter Network PTZ Dome Camera

Model: IPC6424SR-X25-VF

Code: 161512308

Category: Security / CCTV PTZ Camera / Uniview

Product Type: Security

Price: 34800

Warranty: 2

Availability: Upcoming

Description:

IPC6424SR-X25-VF

Camera

Sensor

1/2.8", 4.0 megapixel, progressive scan, CMOS

Min. Illumination

Colour: 0.003 Lux (F1.5, AGC ON)
0 Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120dB

S/N

>56dB

Lens

Lens type

4.8 ~ 120mm, AF automatic focusing and motorized zoom lens

Digital Zoom

16

Optical Zoom

25

Iris

Auto; F1.5 ~ F3.8

Field of View (H)

52.20°~2.74°

Field of View (V)

30.81°~1.54°

Field of View (D)

64.20°~3.23°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

4.8

119.3(391.2ft)

47.7(156.5ft)

23.9(78.2ft)

120

2475.0(8120.1ft)

990.0(3248.0ft)

495.0(1624.0ft)

Illuminator

IR Range

Up to 100m (328 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 4MP(2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

ROI

Support

Video Stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

24 areas, up to 4 areas per scene


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise

HLC

Support

BLC

Support

Defog

Digital Defog

Intelligent

Smart Intrusion Prevention

Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection

People Counting

Support people flow counting and crowd density monitoring

Events

Basic Detection

Motion detection, Audio detection, Tampering Alarm

Auto Tracking

Support

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication

Audio

Audio Compression

G.711U,G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8 kHz

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host

Up to 32 users. 3 user levels: administrator, operator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation
EZLive
EZView

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan & Tilt

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 200°/s

Preset speed: 240°/s

Tilt Range

–15° ~ 90° (auto reverse)

Tilt Speed

0.1°/s ~ 120°/s

Preset speed: 200°/s

Number of Presets

1024

Preset Patrol

16 patrols, up to 64 presets for each patrol

Route Patrol

16 patrols, up to 32 actions for each patrol

Recorded Patrol

16 patrols, up to 128 actions for each patrol

Patrol Stay Time

15s~1800s

Preset Image Freeze

Support

Home Position

Support

Interface

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

Built-in Mic

N/A

Built-in Speaker

N/A

WIFI

N/A

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video Output

1 BNC

Certification

EMC

CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863)

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)

General

Power


DC12V(±25%,3A), PoE+(IEEE 802.3at)

Power consumption: MAX 21W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Ø166 x 295mm (Ø6.5” x 11.6”)

Weight

3.05kg(6.72lb)

Working Environment

-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)

Storage Environment

-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Reset Button

Support
