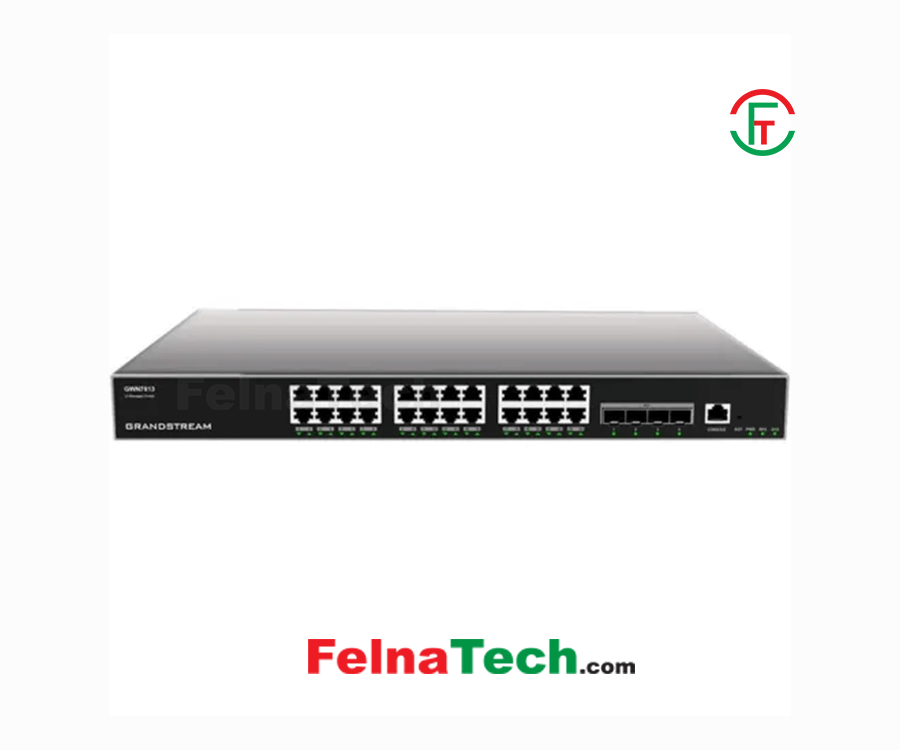

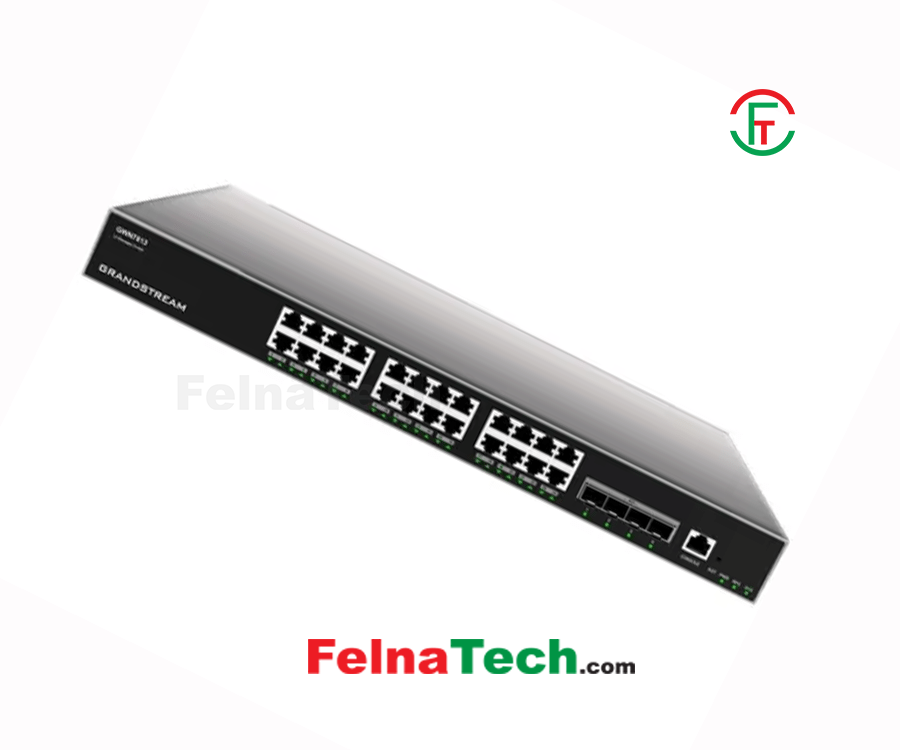

Grandstream GWN7813P 24 Port Layer 3 Gigabit Managed PoE Switch

Brand: Switch / Grandstream

Title: Grandstream GWN7813P 24 Port Layer 3 Gigabit Managed PoE Switch

Model: GWN7813P

Code: 216338503

Category: Networking / Switch / Grandstream

Product Type: Switch

Price: 0

Warranty: 1

Availability: Upcoming

Description:

Main Feature

Type

Layer 3 PoE Managed Switch

Port

24x Gigabit Ethernet Ports
4x 10Gigabit SFP+ Ports

Network Standard

IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x

Advanced Functions

Built-in QoS allows for prioritization of network traffic
Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping,
Surge Protection: ± 6KV CM and DM for power
± 4KV CM for network ports

Transmission Method

Forwarding Mode: Store-and-forward

Data Transmission Rate

Switching Capability: 128Gbps
Total non-blocking throughput: 64Gbps
Forwarding Rate: 95.232Mpps
Packet Buffer: 12Mb
Network Latency: <4µs

MAC Address Table

16K static, dynamic and filtering MAC addresses
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP (pending)
Spanning tree, 32 instances for STP/RSTP/MSTP

Environment

Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)

Hardware Features

LED

1x tri-color LED for device tracking and status indication
2x bi-color LEDs for per power supply PWR&RPS
24x yellow-color LEDs

Power Supply

60W(1-8,PoE++) 30W(9-24) Max Output Power per PoE Port
360W Max Total PoE Output Power

Dimensions (L x W x H)

440mm(L)x300mm(W) x44mm(H)

Weight

4.69Kg

Manufacture Warranty

Warranty

1 Year
