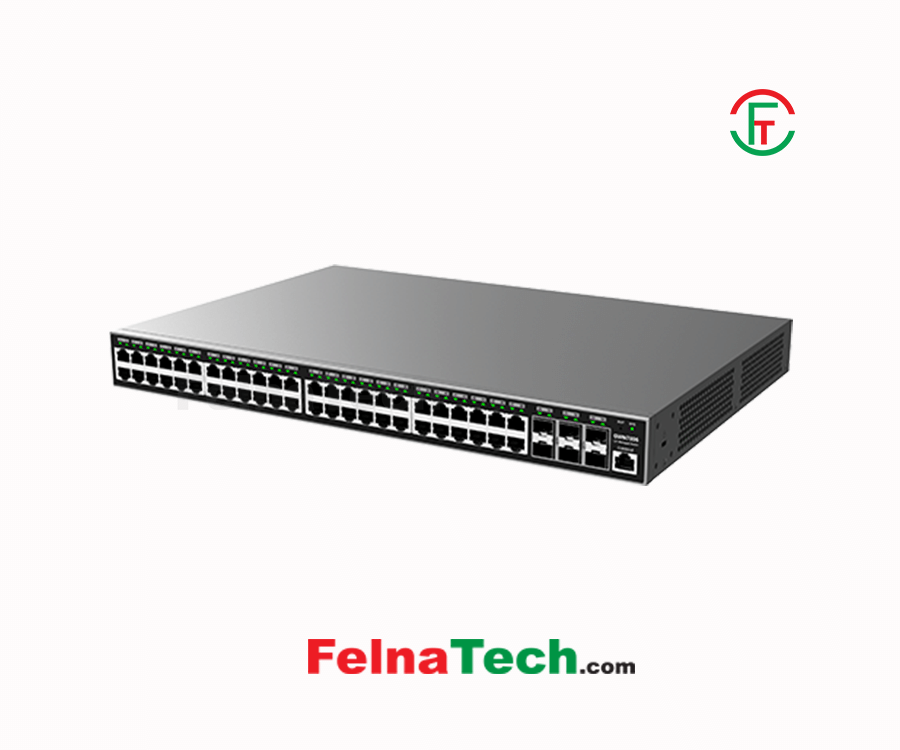

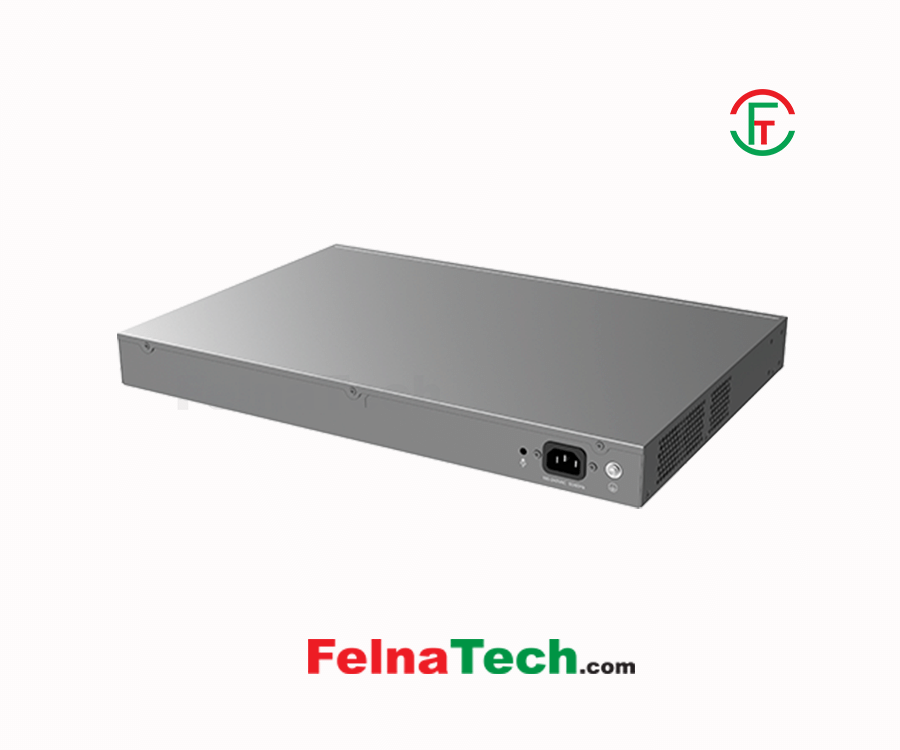

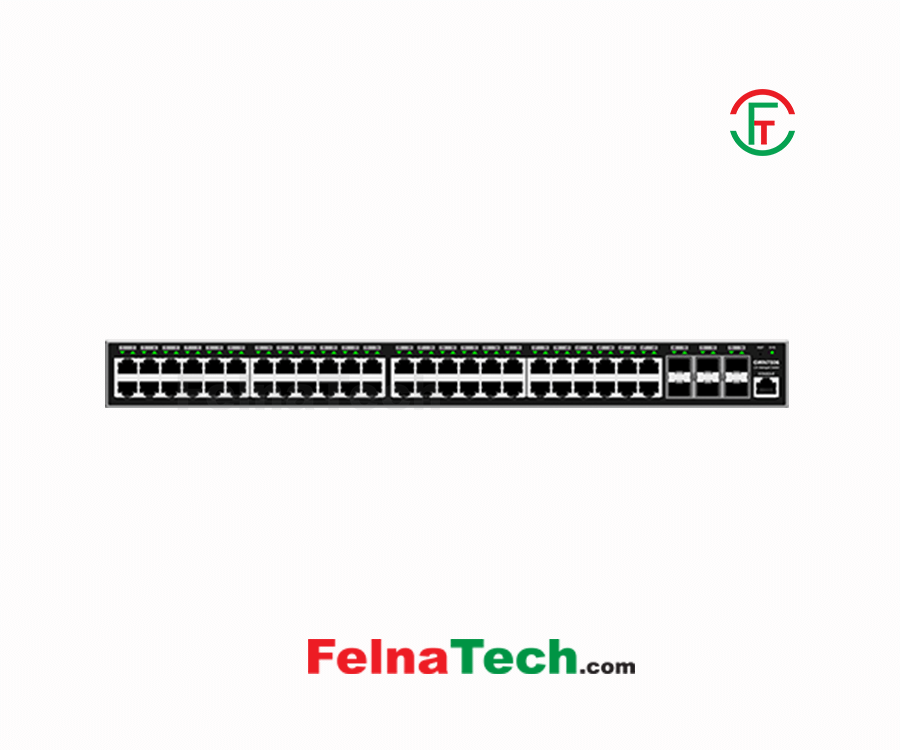

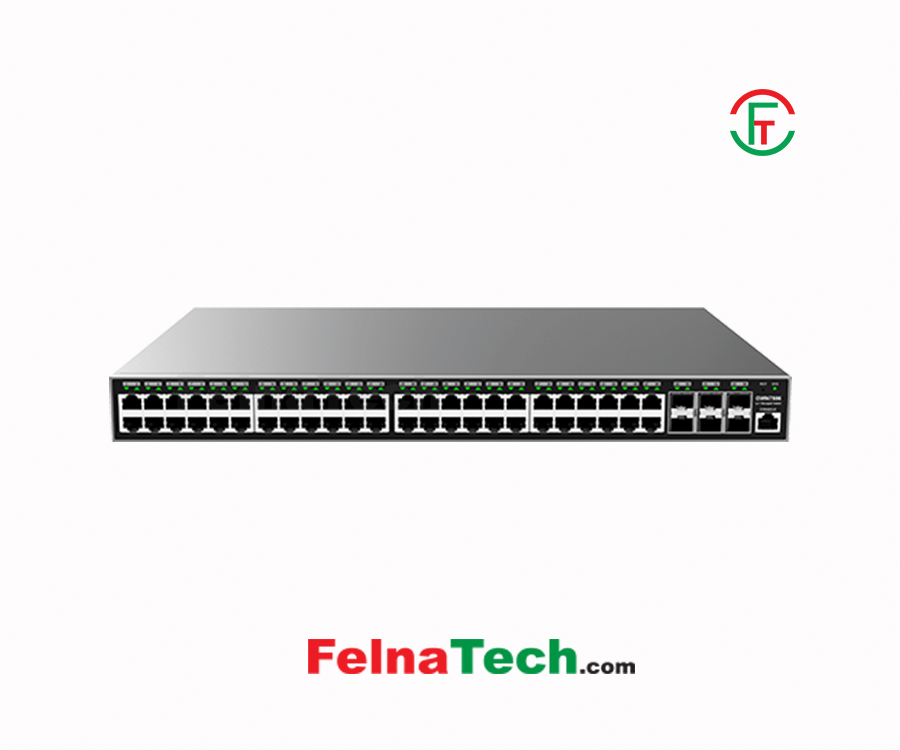

Grandstream GWN7806 48 Port Gigabit Layer 2+ Managed Network Switch

Brand: Switch / Grandstream

Title: Grandstream GWN7806 48 Port Gigabit Layer 2+ Managed Network Switch

Model: GWN7806

Code: 216438605

Category: Networking / Switch (PoE) / Grandstream

Product Type: Switch

Price: 39000

Warranty: 1

Availability: Available/In Stock

Description:

Main Feature

Type

Gigabit Layer 2+ Managed Non-PoE Network Switch

Port

48x Gigabit Ethernet Ports
6x Gigabit SFP Ports

Network Standard

IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE
802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE
802.1w, IEEE 802.1x

Advanced Functions

Smart power control to support dynamic power allocation per port
Supports deployment in IPv6 and IPv4 networks
Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
Built-in QoS allows for prioritization of network traffic
Supports stacking for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices
Contact Sales

Transmission Method

Forwarding Mode: Store-and-forward

Data Transmission Rate

Switching Capability: 216Gbps
Total non-blocking throughput: 108Gbps
Forwarding Rate: 160.704Mpps
Packet Buffer: 16Mb
Network Latency: <4µs


MAC Address Table

32K static, dynamic and filtering MAC addresses
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP (pending)
27 link aggregation
Spanning tree, 64 instances for STP/RSTP/MSTP

Environment

Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)

Hardware Features

LED

1x tri-color LED for device tracking and status indication
54x green-color LEDs for data transferring
48x yellow-color LEDs for PoE powered

Power Supply

60W Integrated Power Supply

Dimensions (L x W x H)

440mm(L)x301mm(W)x44mm(H)

Weight

4.0Kg

Manufacture Warranty

Warranty

1 Year
