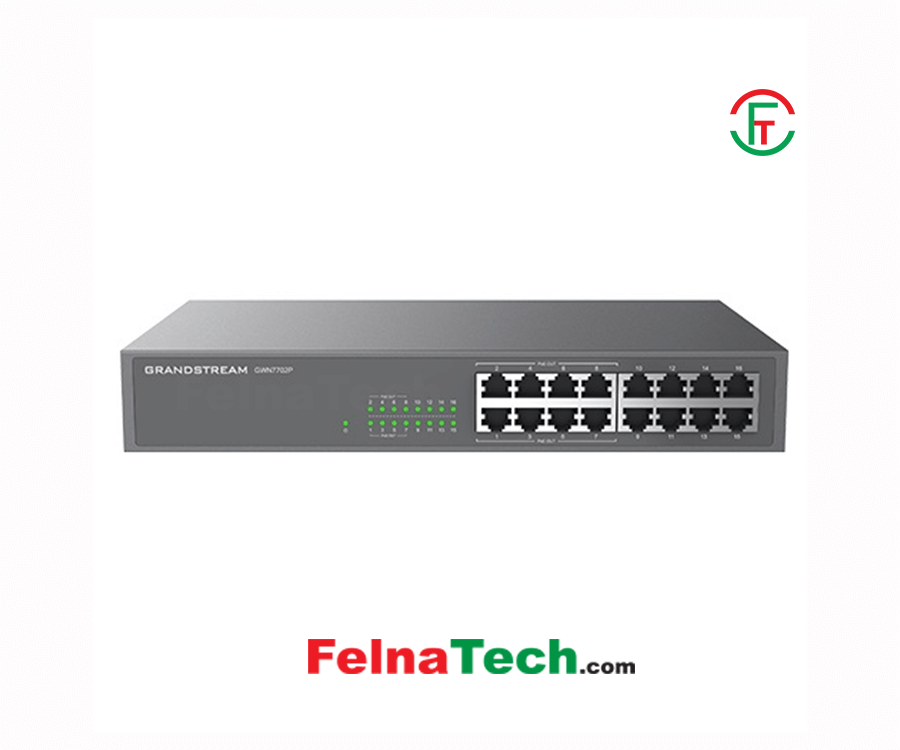

Grandstream GWN7702P 16 Port Gigabit PoE Network Switch
Model: GWN7702P
Brand: Grandstream
Code: 216438612
Product Coming Soon| Main Feature | |
|---|---|
| Type | PoE Unmanaged Network Switch |
| Port | 16× 10/100/1000Mbps RJ45 (8x PoE) Ports |
| Network Standard | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Advanced Functions | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control Half duplex backpressure |
| Data Transmission Rate | Switching Capacity: 32Gbps Jumbo Frame: 10KB |
| MAC Address Table | 8K |
| Environment | Operating Temperature: 0 to 40 °C (32 to 104 °F) Storage Temperature: -20 to 60 °C (-4 to 140 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
| Hardware Features | |
| LED | Per port: Link/Activity - Green Per port: PoE output - Yellow Per device: Power Green |
| Power Supply | Power Adapter: Internal 100-240V AC, 50/60Hz,150W Max Power Consumption by Base System: 10.1W@220V/50Hz (excluding PoE output power) |
| Dimensions (L x W x H) | 280 x 180 x 44mm |
| Weight | 1.58KG |
| Manufacture Warranty | |
| Warranty | 1 Year |
Brand: Switch / Grandstream
Title: Grandstream GWN7702P 16 Port Gigabit PoE Network Switch
Model: GWN7702P
Code: 216438612
Category: Networking / Switch (PoE) / Grandstream
Product Type: Switch
Price: 0
Warranty: 1
Availability: Upcoming
Description:
Main Feature
Type
PoE Unmanaged Network Switch
Port
16× 10/100/1000Mbps RJ45 (8x PoE) Ports
Network Standard
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Advanced Functions
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
Half duplex backpressure
Data Transmission Rate
Switching Capacity: 32Gbps
Jumbo Frame: 10KB
MAC Address Table
8K
Environment
Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 60 °C (-4 to 140 °F)
Operating Humidity: 10% to 90% Non-condensing
Storage Humidity: 10% to 90% Non-condensing
Hardware Features
LED
Per port: Link/Activity - Green
Per port: PoE output - Yellow
Per device: Power Green
Power Supply
Power Adapter: Internal 100-240V AC, 50/60Hz,150W
Max Power Consumption by Base System: 10.1W@220V/50Hz (excluding PoE output power)
Dimensions (L x W x H)
280 x 180 x 44mm
Weight
1.58KG
Manufacture Warranty
Warranty
1 Year
