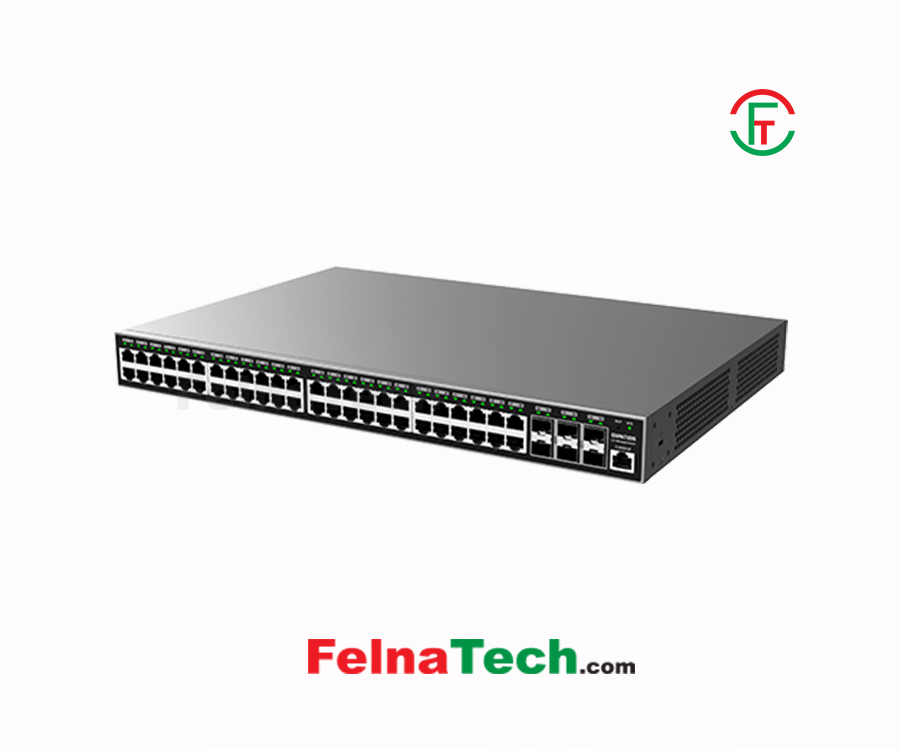

Grandstream GWN7806P 48 Port Gigabit Layer 2+ Managed PoE Network Switch
Model: GWN7806P
Brand: Grandstream
Code: 216438614
Product Coming Soon| Main Feature | |
|---|---|
| Type | Gigabit Layer 2+ Managed PoE Network Switch |
| Port | 48x Gigabit Ethernet Ports 6x Gigabit SFP Ports |
| Network Standard | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Advanced Functions | Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models Supports deployment in IPv6 and IPv4 networks Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform Built-in QoS allows for prioritization of network traffic Supports stacking for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices Contact Sales |
| Transmission Method | Forwarding Mode: Store-and-forward |
| Data Transmission Rate | Switching Capability: 216Gbps Total non-blocking throughput: 108Gbps Forwarding Rate: 160.704Mpps Packet Buffer: 16Mb Network Latency: <4µs |
| MAC Address Table | 32K static, dynamic and filtering MAC addresses 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP (pending) 27 link aggregation Spanning tree, 64 instances for STP/RSTP/MSTP |
| Environment | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing) |
| Hardware Features | |
| LED | 1x tri-color LED for device tracking and status indication 54x green-color LEDs for data transferring 48x yellow-color LEDs for PoE powered |
| Power Supply | 470W Integrated Power Supply 30W Max Output Power per PoE Port 400W Max Total PoE Output Power |
| Dimensions (L x W x H) | 440mm(L)x301mm(W)x44mm(H) |
| Weight | 5.1Kg |
| Manufacture Warranty | |
| Warranty | 1 Year |
Brand: Switch / Grandstream
Title: Grandstream GWN7806P 48 Port Gigabit Layer 2+ Managed PoE Network Switch
Model: GWN7806P
Code: 216438614
Category: Networking / Switch (PoE) / Grandstream
Product Type: Switch
Price: 0
Warranty: 1
Availability: Upcoming
Description:
Main Feature
Type
Gigabit Layer 2+ Managed PoE Network Switch
Port
48x Gigabit Ethernet Ports
6x Gigabit SFP Ports
Network Standard
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE
802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE
802.1w, IEEE 802.1x
Advanced Functions
Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
Supports deployment in IPv6 and IPv4 networks
Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
Built-in QoS allows for prioritization of network traffic
Supports stacking for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices
Contact Sales
Transmission Method
Forwarding Mode: Store-and-forward
Data Transmission Rate
Switching Capability: 216Gbps
Total non-blocking throughput: 108Gbps
Forwarding Rate: 160.704Mpps
Packet Buffer: 16Mb
Network Latency: <4µs
MAC Address Table
32K static, dynamic and filtering MAC addresses
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP (pending)
27 link aggregation
Spanning tree, 64 instances for STP/RSTP/MSTP
Environment
Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)
Hardware Features
LED
1x tri-color LED for device tracking and status indication
54x green-color LEDs for data transferring
48x yellow-color LEDs for PoE powered
Power Supply
470W Integrated Power Supply
30W Max Output Power per PoE Port
400W Max Total PoE Output Power
Dimensions (L x W x H)
440mm(L)x301mm(W)x44mm(H)
Weight
5.1Kg
Manufacture Warranty
Warranty
1 Year
