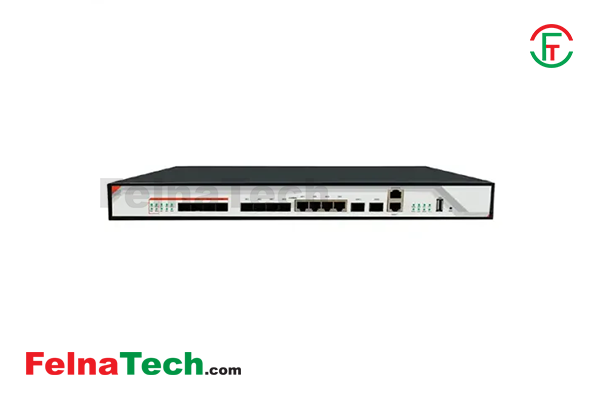

C-Data FD1604SN-B0-NDA0 G-PON OLT

91,990 TK

In Stock: Yes
Model: FD1604SN-B0-NDA0
Brand: C-Data
Code: 2110929620

Category:Networking

0 people are watching this product now

Buy With EMI

0 ৳/Month

EMI for upto 12 Months

For Inquiry: +880-1958-666975

Share this product on social media

Technical Feature
Operating Humidity	5～90% (Non-condensing)
Operating Temperature	-15～50℃
Storage Temperature	-40～85℃
Network Features
Ethernet Interface	1 100/1000BASE-Tx out-band
Interface	SFP slot, ITU-TG.984.2 Class B+/Class C+
Ports	4 uplink GE ports 4 uplink SFP ports 2 10-gigabit uplink ports and 4 GPON ports
More
Features	Optical Line terminal 8 PON GPON OLT FD1608SN-B0 fully complies with ITU G.984.x and FSAN standards. The device has 1 USB interface, 4 copper gigabit upstream ports, 4 upstream optical ports, 2 10-gigabit ports, and 8 GPON ports. Each GPON port supports 1:128 split ratio and provides 2.5Gbps downstream bandwidth and 1.25Gbps upstream bandwidth, the system supports 1024 GPON terminals. XGX UPLINK 8 PORT GPON OLT
General
Dimensions	440mm(L)240mm(W)44mm(H)
Power	220VAC
Weight	4kg

Brand: C-Data

Title: C-Data FD1604SN-B0-NDA0 G-PON OLT

Model: FD1604SN-B0-NDA0

Code: 2110903

Category: Networking

Sub Category: OLT

Sub-Sub Category:

Price: 91999

Offer Status: 0

Description:

Technical Feature

Operating Humidity

5～90% (Non-condensing)

Operating Temperature

-15～50℃

Storage Temperature

-40～85℃

Network Features

Ethernet Interface

1 100/1000BASE-Tx out-band

Interface

SFP slot, ITU-TG.984.2 Class B+/Class C+

Ports

4 uplink GE ports
4 uplink SFP ports
2 10-gigabit uplink ports and 4 GPON ports

Features

Optical Line terminal 8 PON GPON OLT FD1608SN-B0 fully complies with ITU
G.984.x and FSAN standards. The device has 1 USB interface, 4 copper gigabit
upstream ports, 4 upstream optical ports, 2 10-gigabit ports, and 8 GPON ports.
Each GPON port supports 1:128 split ratio and provides 2.5Gbps downstream
bandwidth and 1.25Gbps upstream bandwidth, the system supports 1024 GPON
terminals. XGX UPLINK 8 PORT GPON OLT

General

Dimensions

440mm(L)*240mm(W)*44mm(H)

Power

220VAC

Weight

4kg
