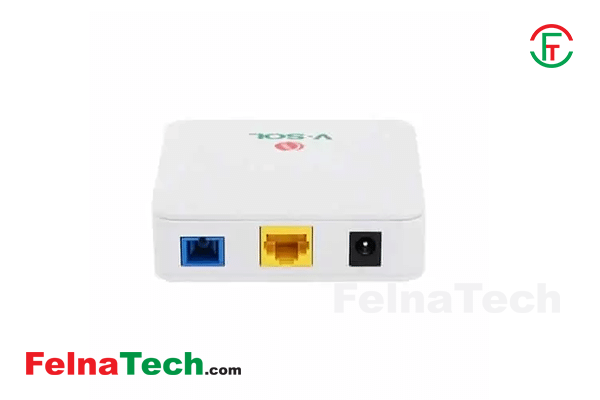

V-SOL V2801SG XPON GPON Single Port ONU
Model: V2801SG
Brand: VSOL
Code: 2110930408
| Brand | V-Sol |
| Model | V2801SG XPON GPON ONU |
| Technical item | 1GE Secure ONU |
| PON interface | 1 GPON port Wavelength: Tx1310nm, Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
| Operating Condition | Temperature: -30℃～+70℃ Humidity: 10%～90%（non-condensing |
| Storing | Temperature : -30℃～+70℃ |
| Condition | Humidity :10%～90%（non-condensing |
| Power Supply | DC 12V/0.5A(option) |
| Power Consumtion | ≤4W |
| Dimension | 82mm×82mm×25mm（L×W×H） |
| New Weight | 85g |
| Software Mode | Bridging mode and Routing mode. |
| Abnormal Protection | Detecting Rogue ONU, Hardware Dying Gasp |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL. |
| Layer2 | 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN |
| Layer3 | IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS. |
| Multicast | IGMP v1/v2/v3 , IGMP snooping |
| Security | Flow & Storm control, Loop Detection |
| O&M | WEB/TELNET/OAM/OMCI/TR069 |
| Warranty | 01 years official warranty |
V-SOL V2801SG XPON GPON Single Port ONU
The V-SOL V2801SG is a compact, enterprise-grade XPON GPON optical network unit (ONU) designed for FTTH, FTTO, and SOHO broadband access. Equipped with 1 GPON SC/UPC port supporting optical receiving sensitivity up to ≤-28dBm and a 20KM transmission reach, this single-port ONU ensures strong, uninterrupted fiber connectivity. Featuring a 10/100/1000 Mbps Gigabit Ethernet LAN port, it delivers unthrottled wired throughput directly to a PC, laptop, or standalone Wi-Fi router. Check out the V-SOL V2801SG Price in BD to build a reliable fiber network for your home or business.
What We Liked Most
- Long-Distance Fiber Reach: Features 1 GPON SC/UPC optical port (Tx1310nm/Rx1490nm) supporting up to 20KM transmission distance.
- Full Gigabit Wired Speed: Includes 1× 10/100/1000 Mbps auto-adaptive RJ45 Ethernet port for unthrottled internet throughput.
- Hardware & Network Protection: Integrated with Rogue ONU detection, hardware Dying Gasp, loop detection, and DDoS firewall filtering.
- Flexible Software Modes: Operates seamlessly in both Bridging and Routing modes (DHCP, PPPoE, NAT, Static IP).
- Comprehensive Management: Supports WEB, TELNET, OMCI, OAM, and TR069 management protocols for remote configuration and maintenance.
Product Specifications
| Attribute | Details |
|---|---|
| Brand | V-Sol |
| Product Name | V-SOL V2801SG XPON GPON Single Port ONU |
| Model | V2801SG |
| Product Code | 2110930408 |
| Category | Networking / ISP / ONU |
| Subcategory | ONU |
| Price | 1375 |
| Specifications | PON: 1 GPON Port (SC/UPC, Tx1310nm/Rx1490nm, ≤-28dBm Rx, 0~+4dBm Tx, 20KM); LAN: 1 × 10/100/1000Mbps RJ45; Software Modes: Bridging & Routing; Power: DC 12V/0.5A (≤4W); Operating Temp: -30℃～+70℃; Weight: 85g; Dimensions: 82 × 82 × 25 mm |
| Warranty | 1 Year |
Why Choose FelnaTech?
FelnaTech offers reliable networking solutions tailored to meet the connectivity demands of tech enthusiasts and service providers across Bangladesh. When purchasing the V-SOL V2801SG XPON ONU from FelnaTech, you receive accurate technical details, verified product specifications, and dependable customer assistance to support your fiber infrastructure needs.
Frequently Asked Questions (FAQ)
Q1: What is the maximum transmission distance supported by the V-SOL V2801SG ONU?
A1: The device supports single-mode optical transmission up to a distance of 20KM.
Q2: Does the V-SOL V2801SG support both Bridging and Routing modes?
A2: Yes, it supports both Bridging mode and Routing mode (PPPoE, DHCP, Static IP, NAT).
Q3: What security features are built into the V-SOL V2801SG?
A3: It features Rogue ONU detection, hardware Dying Gasp, loop detection, storm control, and a firewall supporting ACL, MAC, and URL filtering.
