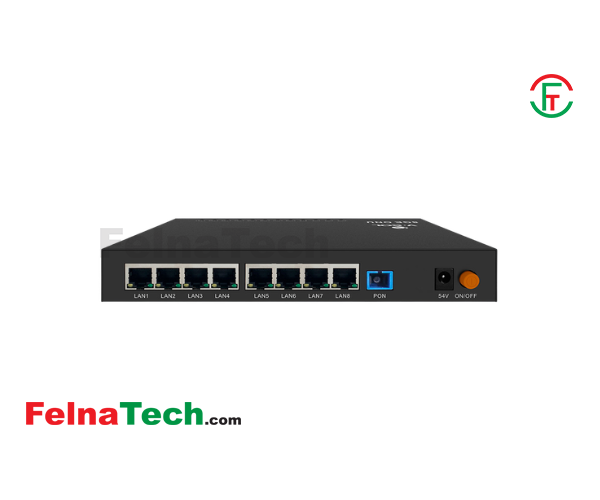

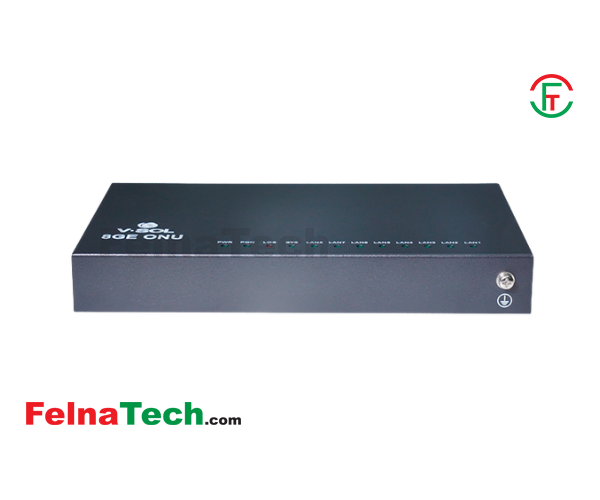

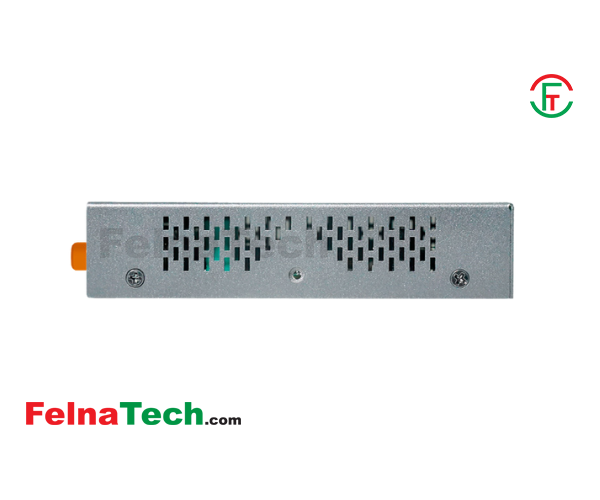

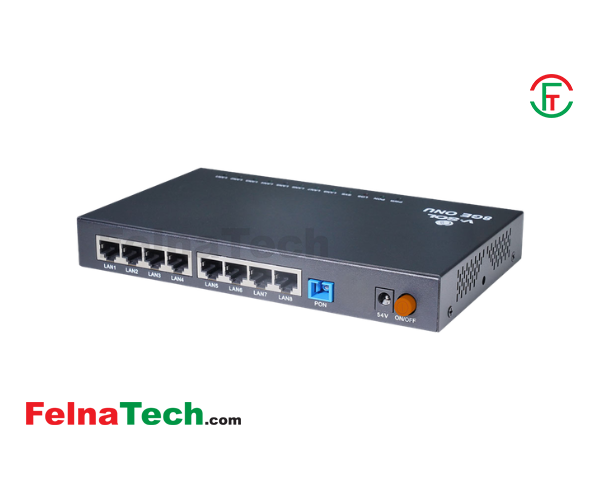

V-SOL V2808-8GL PSE 1XPON 8GE PoE+ MDU ONU
Model: V2808-8GL
Brand: VSOL
Code: 2110930417
V-SOL V2808-8GL-PSE 1XPON 8GE PoE+ MDU ONU
Technical Specifications:
Model: V2808-8GL
Device Type: Multi-Dwelling Unit (MDU) ONU with PoE+ Switch
PON Interface: 1 × XPON Port (GPON Class B+ and EPON PX20+ Auto Adaptive)
LAN Interface: 8 × 10/100/1000 Mbps Gigabit Ethernet Ports (All Support PoE+)
PoE Capability: IEEE 802.3at/af standard | Up to 30W per port | Max Power Budget: Up to 130W
Optical Connector: SC/UPC Connector (Single Mode, 20KM Transmission Distance)
Wavelength: TX 1310 nm, RX 1490 nm
Layer 2 Functions: Port Speed Restrictions, Loop Detection, Flow Control, Storm Control
VLAN Support: VLAN Tag Mode, Transparent Mode, Trunk Mode (Up to 8 VLANs)
Multicast: IGMP v1/v2/Snooping (Up to 8 VLAN multicast, 64 multicast groups)
QoS (Quality of Service): Supports 4 queues, SP and WRR, 802.1P
Management Protocols: CTC OAM 2.0/2.1, ITU-T G.984.x OMCI, Web UI, Telnet, CLI
Security & Firewall: DDoS Protection, Access Control (ACL), MAC, and URL Filtering
Physical Specs: Durable Desktop Form Factor | Weight: ~0.615 kg | Dim: 205 × 125 × 28 mm
Power Supply: External Power Adapter (DC 54V, 2.4A)
Warranty: 1-Year Official Manufacturer Warranty
Key Features:
XPON Dual Mode (GPON/EPON): Features a smart auto-detection chip that flawlessly switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah) OLT networks, optimizing network adaptability.
8 Full Gigabit PoE+ Ports: Equipped with 8× 10/100/1000 Mbps RJ45 ports that deliver high-speed data transmission along with power supply, eliminating the need for separate electrical adapters.
Carrier-Grade Power Delivery: Complies with standard IEEE 802.3at/af PoE, delivering up to 30W of power per individual port to efficiently fuel heavy-duty outdoor IP cameras or high-power Wi-Fi Access Points.
Advanced Multi-Dwelling (MDU) Architecture: Specifically optimized for multi-tenant buildings, large corporate environments, and student accommodations to run a robust localized network.
Carrier-Grade Management: Fully manageable through OMCI, OAM, Telnet, Web UI, and CLI for automated configurations, remote troubleshooting, and quick firmware upgrades.
Smart Loop & Storm Control: Integrates localized network loop detection, broadcast storm mitigation, and port rate restrictions to prevent complete network downs.
IPTV & Multimedia Optimization: Features advanced IGMP Snooping and Proxy for flawless transmission of multicast video stream signals, preventing buffering on 4K TVs or IP streaming devices.
Robust Enterprise Security: Loaded with built-in firewall functionalities including anti-DDoS protection, absolute hardware filtering by MAC/URL, and customized Access Control Lists (ACL).
Product Overview:
The VSOL V2808-8GL-PSE is a high-performance, enterprise-grade 1XPON Multi-Dwelling Unit (MDU) ONU integrated with an 8-Port Gigabit PoE+ Switch. This dual-mode device is specially engineered for advanced broadband distributions like FTTO (Office),
FTTD (Desktop), and corporate FTTx networks across Bangladesh. Powered by a high-efficiency telecom chipset, it seamlessly auto-detects and adapts to both GPON and EPON infrastructure, reducing overhead costs for Internet Service Providers (ISPs).
The standout feature of the V2808-8GL-PSE is its 8 Full Gigabit LAN ports, all embedded with IEEE 802.3at/af PoE+ capabilities. This makes it an ultimate all-in-one hub for localized multi-device networking. Network administrators can easily power up
IP Surveillance Cameras, VoIP Phones, Network Video Recorders (NVR), and Dual-Band Wireless Access Points directly via network cables, completely minimizing messy wiring systems.
Enclosed in a durable design with custom Layer 2 management controls, loop alarms, and powerful anti-DDoS firewall security, this VSOL MDU ONU guarantees 24/7 network uptime. It is the perfect backbone solution for smart apartment buildings,
commercial shopping malls, corporate corporate floors, and internet-intensive video surveillance networks in Bangladesh.
Brand: ONU / VSOL
Title: V-SOL V2808-8GL PSE 1XPON 8GE PoE+ MDU ONU
Model: V2808-8GL
Code: 2110930417
Category: Networking / ISP / ONU
Product Type: ONU
Price: 5000
Warranty: 1
Availability: Available/In Stock
Description:
V-SOL V2808-8GL-PSE 1XPON 8GE PoE+ MDU ONU
Technical Specifications:
Model: V2808-8GL
Device Type: Multi-Dwelling Unit (MDU) ONU with PoE+ Switch
PON Interface: 1 × XPON Port (GPON Class B+ and EPON PX20+ Auto Adaptive)
LAN Interface: 8 × 10/100/1000 Mbps Gigabit Ethernet Ports (All Support PoE+)
PoE Capability: IEEE 802.3at/af standard | Up to 30W per port | Max Power Budget: Up to 130W
Optical Connector: SC/UPC Connector (Single Mode, 20KM Transmission Distance)
Wavelength: TX 1310 nm, RX 1490 nm
Layer 2 Functions: Port Speed Restrictions, Loop Detection, Flow Control, Storm Control
VLAN Support: VLAN Tag Mode, Transparent Mode, Trunk Mode (Up to 8 VLANs)
Multicast: IGMP v1/v2/Snooping (Up to 8 VLAN multicast, 64 multicast groups)
QoS (Quality of Service): Supports 4 queues, SP and WRR, 802.1P
Management Protocols: CTC OAM 2.0/2.1, ITU-T G.984.x OMCI, Web UI, Telnet, CLI
Security & Firewall: DDoS Protection, Access Control (ACL), MAC, and URL Filtering
Physical Specs: Durable Desktop Form Factor | Weight: ~0.615 kg | Dim: 205 × 125 × 28 mm
Power Supply: External Power Adapter (DC 54V, 2.4A)
Warranty: 1-Year Official Manufacturer Warranty
Key Features:
XPON Dual Mode (GPON/EPON): Features a smart auto-detection chip that flawlessly switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah) OLT networks, optimizing network adaptability.
8 Full Gigabit PoE+ Ports: Equipped with 8× 10/100/1000 Mbps RJ45 ports that deliver high-speed data transmission along with power supply, eliminating the need for separate electrical adapters.
Carrier-Grade Power Delivery: Complies with standard IEEE 802.3at/af PoE, delivering up to 30W of power per individual port to efficiently fuel heavy-duty outdoor IP cameras or high-power Wi-Fi Access Points.
Advanced Multi-Dwelling (MDU) Architecture: Specifically optimized for multi-tenant buildings, large corporate environments, and student accommodations to run a robust localized network.
Carrier-Grade Management: Fully manageable through OMCI, OAM, Telnet, Web UI, and CLI for automated configurations, remote troubleshooting, and quick firmware upgrades.
Smart Loop & Storm Control: Integrates localized network loop detection, broadcast storm mitigation, and port rate restrictions to prevent complete network downs.
IPTV & Multimedia Optimization: Features advanced IGMP Snooping and Proxy for flawless transmission of multicast video stream signals, preventing buffering on 4K TVs or IP streaming devices.
Robust Enterprise Security: Loaded with built-in firewall functionalities including anti-DDoS protection, absolute hardware filtering by MAC/URL, and customized Access Control Lists (ACL).
Product Overview:
The VSOL V2808-8GL-PSE is a high-performance, enterprise-grade 1XPON Multi-Dwelling Unit (MDU) ONU integrated with an 8-Port Gigabit PoE+ Switch. This dual-mode device is specially engineered for advanced broadband distributions like FTTO (Office),
FTTD (Desktop), and corporate FTTx networks across Bangladesh. Powered by a high-efficiency telecom chipset, it seamlessly auto-detects and adapts to both GPON and EPON infrastructure, reducing overhead costs for Internet Service Providers (ISPs).
The standout feature of the V2808-8GL-PSE is its 8 Full Gigabit LAN ports, all embedded with IEEE 802.3at/af PoE+ capabilities. This makes it an ultimate all-in-one hub for localized multi-device networking. Network administrators can easily power up
IP Surveillance Cameras, VoIP Phones, Network Video Recorders (NVR), and Dual-Band Wireless Access Points directly via network cables, completely minimizing messy wiring systems.
Enclosed in a durable design with custom Layer 2 management controls, loop alarms, and powerful anti-DDoS firewall security, this VSOL MDU ONU guarantees 24/7 network uptime. It is the perfect backbone solution for smart apartment buildings,
commercial shopping malls, corporate corporate floors, and internet-intensive video surveillance networks in Bangladesh.
