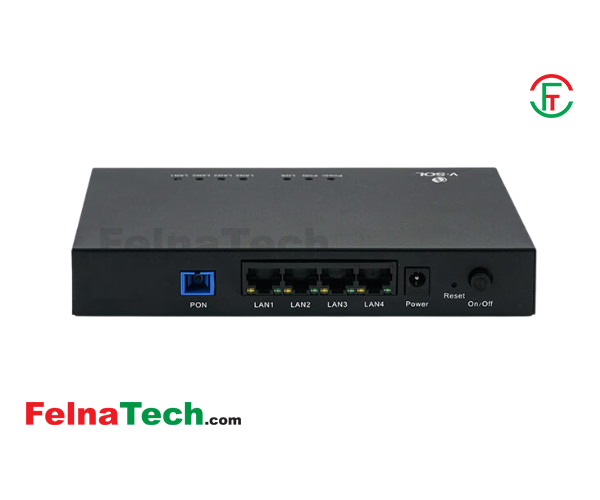

V-SOL V2820D-1G3FPS 1GE+3FE PoE Dual-Mode XPON ONU

Brand: ONU / VSOL

Title: V-SOL V2820D-1G3FPS 1GE+3FE PoE Dual-Mode XPON ONU

Model: V2820D-1G3FPS

Code: 2110930419

Category: Networking / ISP / ONU

Product Type: ONU

Price: 5500

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V2820D-1G3FPS 1GE+3FE PoE Dual-Mode XPON ONU

Technical Specifications:

Model: V2820D-1G3FPS

Chipset: High-performance Chip Solution (Realtek-based)
PON Interface: 1 × XPON Port (GPON Class B+ / EPON PX20+ Auto Adaptive)
LAN Interface: 1 × 10/100/1000 Mbps Gigabit Port + 3 × 10/100 Mbps Fast Ethernet Ports
PoE Support: IEEE 802.3af/at PoE+ (All 4 LAN ports support PoE Output)
PoE Power Output: Up to 30W Max per port | Total Power Supply ≤ 48W
PoE Safety Features: AI PD Detection (Auto-detects and powers only PoE-compatible devices)
VLAN Support: 802.1Q VLAN, 802.1D & 802.1ad Bridging, VLAN Transparent & Filtering
Multicast Support: IGMP v2/v3, IGMP Snooping for smooth IPTV
LED Status Indicators: 7 LEDs (POWER, LOS, PON, LAN1 ~ LAN4)

Physical Specs: Premium Build | Weight: ~0.6kg | Dimensions: 175 × 123 × 28 mm

Power Adapter: DC 48V/1A Power Adapter Included

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

XPON Dual Mode Compatibility: Smart auto-detection seamlessly adapts to both GPON (ITU-T G.984.x) and EPON (IEEE 802.3ah) networks, reducing operational complexity for ISPs.

Carrier-Grade PoE+ (PSE) Integration: Equipped with 4 PoE+ ports that deliver up to 30W per port. It can directly power IP cameras, Wireless Access Points (APs), and IP Phones over standard network cables without extra power adapters.

Intelligent AI PD Detection: Features a built-in safety mechanism that automatically identifies PoE-compatible devices before delivering power, protecting non-PoE devices (like laptops or regular PCs) from damage.

High-Speed 1GE + 3FE Hardware Layout: Comprises 1 Full Gigabit Ethernet port for high-bandwidth uplinks/devices (like NVRs, Routers, or PCs) and 3 Fast Ethernet ports for general network peripherals.

Seamless Bridging & Network Layering: Supports both Layer 2 and Layer 3 functions with 802.1p CoS (Class of Service) ensuring high-reliability data transmissions.

IPTV & Multimedia Ready: Features advanced IGMP Snooping (v2/v3) and multicast support, providing lag-free, buffer-free streaming for high-definition 4K IPTV services.

Robust Security & Firewall: Integrated with hardware-level security, including MAC address learning configuration, URL/MAC/IP filtering, and network loop prevention.

Advanced Remote Management: Fully optimized for telecom operators with comprehensive support for OMCI, CTC OAM 2.0/2.1, Web UI, Telnet, and CLI for effortless remote configuration and automated firmware upgrades.

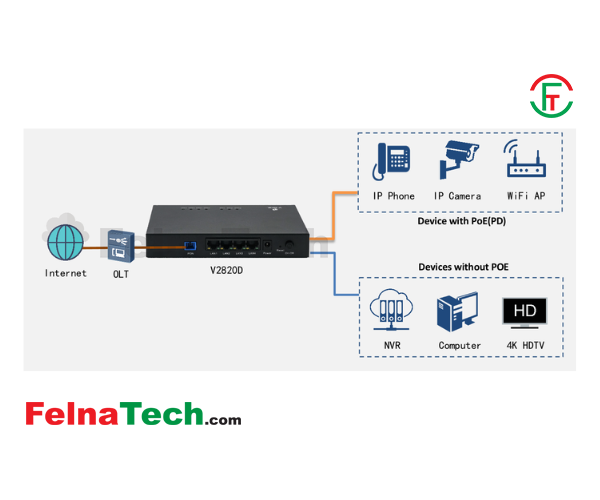

The V-SOL V2820D-1G3FPS is a high-performance, cost-effective, and enterprise-grade XPON PoE ONU designed specifically for FTTH, SOHO (Small Office/Home Office), and surveillance deployments across Bangladesh. Powered by an advanced high-performance chipset,
this dual-mode device automatically switches between GPON and EPON networks, giving local Internet Service Providers (ISPs) maximum deployment flexibility.

What makes the V2820D truly unique is its integrated 4-Port PoE+ (PSE) capability. Supporting the IEEE 802.3at standard with a robust 48W total power budget, it can effortlessly power network devices like IP Cameras, VoIP Phones, and Wireless
Access Points directly through Ethernet cables. This eliminates the need for messy power wiring, making it the perfect all-in-one solution for corridor access, building automation, and corporate IP surveillance networks without needing a separate PoE switch.
