V-SOL V2802RH Dual-Port 2.5G & 1GE XPON ONT ONU

Brand: VSOL

Title: V-SOL V2802RH Dual-Port 2.5G & 1GE XPON ONT ONU

Model: V2802RH

Code: 2110930415

Category: Networking / ISP / ONU

Product Type: ONU

Price: 2000

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V2802RH Dual-Port 2.5G & 1GE XPON ONT ONU

Technical Specifications:

Model: V2802RH
Chipset: High-performance Next-Gen XPON Chipset
PON Interface: 1 × XPON Port (GPON Class B+ / EPON PX20+) Auto-Adaptive
LAN Interfaces: * 1 × 2.5Gbps (2.5G/1G/100M) Ultra-Fast Ethernet Port
1 × 10/100/1000 Mbps Gigabit Ethernet Port
Maximum Throughput: Supports up to 2.5Gbps wired speeds (via 2.5GE port)
VLAN Support: 802.1Q VLAN, 802.1p, Tag/Untag, QinQ VLAN stacking
Layer 3 Functions: Supports Router Mode (PPPoE, DHCP, Static IP) and Bridge Mode

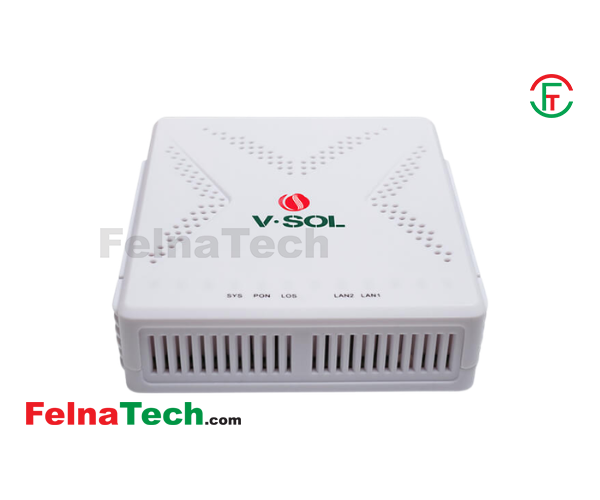

LED Status Indicators: Power, PON, LOS, LAN1 (2.5G), LAN2 (1G)

Physical Specs: Ultra-Compact Design | Weight: ~120g | Dimensions: 85mm × 80mm × 28mm

Power Input: DC 12V, 0.5A (Low power consumption)

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

Next-Gen 2.5Gbps Ultra-Speed: Features a dedicated 2.5 Gigabit Ethernet port designed to break the 1Gbps barrier, delivering lightning-fast internet speeds directly to high-end routers, PCs, or NAS storage.

XPON Dual Mode Flexibility: Auto-adaptive technology seamlessly switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah) OLT networks, eliminating compatibility issues for ISPs.

Dual LAN Ports for Better Routing: Equipped with 1× 2.5GE and 1× 1GE ports, allowing you to connect two separate devices or manage multiple wired connections efficiently.

Ultra-Compact & Space-Saving: Designed with a minimalistic, pocket-sized footprint that easily blends into any home or office setup without cluttering your desk.

IPTV & Smooth Streaming: Fully supports IGMP Snooping (v1/v2/v3) and IGMP Proxy, optimizing multicast traffic for lag-free 4K/8K IPTV and video streaming.

Advanced Security & Firewall: Built-in powerful firewall, MAC/IP/URL filtering, and Access Control Lists (ACL) to secure your local network from external threats.

Future-Proof Dual-Stack: Complete native support for both IPv4 and IPv6 protocols to ensure long-term network compatibility.

Carrier-Grade Management: Allows seamless remote configuration, diagnostics, and automated firmware upgrades via TR-069, OMCI, OAM, and Web UI.

Product Description:

The VSOL V2802RH is a cutting-edge, ultra-compact dual-port XPON ONT/ONU designed to meet the growing demand for ultra-high-speed broadband and FTTH (Fiber to the Home) networks. Powered by a next-generation high-performance chipset,
this device features an exceptional 2.5Gbps Ethernet port alongside a standard 1Gbps port, making it the perfect gateway for tech enthusiasts, gamers, and premium internet users who want to experience true multi-gigabit speeds.

Its smart dual-mode functionality automatically detects and adapts to both GPON and EPON OLT setups, offering local Internet Service Providers (ISPs) unmatched flexibility and seamless integration. With its pocket-sized, energy-efficient design,
the V2802RH functions flawlessly in both Bridge and Router modes (PPPoE/DHCP). It is the ideal, future-proof choice for users looking to connect next-gen Wi-Fi 6/7 routers or high-bandwidth devices without any bottleneck.

V-SOL V2802RH XPON ONU/ONT with 1x 2.5GE and 1x GE port supports GPON & EPON dual mode for ultra-fast fiber internet. Ideal for FTTH broadband in Bangladesh, offering stable performance, advanced QoS, VLAN, and up to 2.5Gbps speed for home and business use.
