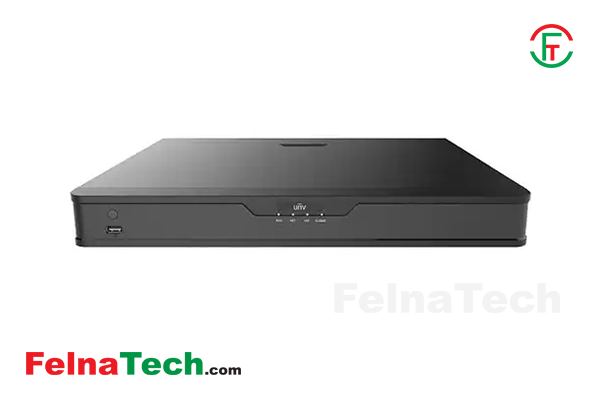

Uniview NVR304-32S 32 Channel 4K 4 HDDs NVR
Model: NVR304-32S
Brand: Uniview
Code: 161711409
| System | |
|---|---|
| Operating System | Linux system |
| Audio and Video | |
| IP Camera Input | 32 Channel |
| Two-Way Talk | N/A |
| Display | |
| Interface | HDMI: 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60 |
| Resolution | 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF |
| Decoding Capacity | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1 |
| Recording | |
| Resolution | 8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF |
| Video Detection And Alarm | |
| Video Detection | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Behavior Search, People Flow Counting, Crowd Density Monitoring |
| Alarm Input | 1 Channel, RCA |
| Playback And Backup | |
| Sync Playback | 32 Channel |
| Third Party Support | |
| Third Party Support | ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T |
| Network | |
| Interface | 2 RJ45 |
| Ethernet Port | 10M/100M/1000M self-adaptive Ethernet Interfaces |
| Maximum User Access | Remote Users: 128 |
| Storage | |
| Internal HDD | 4 SATA interface |
| HDD Mode | Up to 8TB for each HDD |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0 |
| Power | |
| Power Supply | 12V DC |
| Power Consumption | ≤ 15W( without HDD ) |
| Component Environment | |
| Operational Conditions | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH(non-condensing) |
| Construction | |
| Dimensions | 440mm × 344mm ×50mm (17.3" × 13.5" ×2.0") |
| Net Weight | ≤ 3.15 Kg (6.94 lb) |
| Warranty | |
| Manufacturing Warranty | 1 Year Warranty |
Brand: Uniview
Title: Uniview NVR304-32S 32 Channel 4K 4 HDDs NVR
Model: NVR304-32S
Code: 161711409
Category: Security / CCTV NVR / Uniview
Product Type: NVR
Price: 23500
Warranty: 1
Availability: Available/In Stock
Description:
System
Operating System
Linux system
Audio and Video
IP Camera Input
32 Channel
Two-Way Talk
N/A
Display
Interface
HDMI: 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
Resolution
8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Decoding Capacity
2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
Recording
Resolution
8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
Video Detection And Alarm
Video Detection
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Behavior Search, People Flow Counting, Crowd Density Monitoring
Alarm Input
1 Channel, RCA
Playback And Backup
Sync Playback
32 Channel
Third Party Support
Third Party Support
ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Network
Interface
2 RJ45
Ethernet Port
10M/100M/1000M self-adaptive Ethernet Interfaces
Maximum User Access
Remote Users: 128
Storage
Internal HDD
4 SATA interface
HDD Mode
Up to 8TB for each HDD
eSATA
N/A
Auxiliary Interface
USB
Rear panel: 1 x USB2.0, 1 x USB3.0
Front panel: 1 x USB2.0
Power
Power Supply
12V DC
Power Consumption
≤ 15W( without HDD )
Component Environment
Operational Conditions
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH(non-condensing)
Construction
Dimensions
440mm × 344mm ×50mm (17.3" × 13.5" ×2.0")
Net Weight
≤ 3.15 Kg (6.94 lb)
Warranty
Manufacturing Warranty
1 Year Warranty
