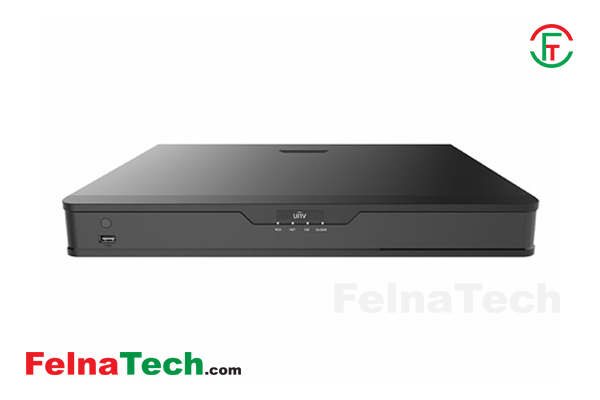

Uniview NVR302-32S 32 Channel 2 SATA NVR
Model: NVR302-32S
Brand: Uniview
Code: 161711408
| Brand | Uniview |
| Model | NVR302-32S |
| Type | 32 Channel 2 SATA NVR |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
| IP Video Input | 32-ch |
| Two-way Audio Input | 1-ch, RCA |
| VGA Output | 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60 |
| HDMI Output | 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Live view display | 1/4/6/8/9/16/25/36 |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| Capability | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1 |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 64Mbps |
| Web Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Remote Users | 128 |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| VCA Detection | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD) |
| VCA Search | Behavior Search |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Extras | Smart Intrusion Prevention (SIP), UMD by Camera Total 8-ch |
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0 |
| RS232 | N/A |
| RS485 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power | 12V DC Power Consumption: ≤ 15W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions | 380mm × 315mm ×53mm (15.0" × 12.4" ×2.1" ) |
| Weight | ≤ 2.48 Kg (5.47 lb) |
| Certification | Certification: CE, FCC, UL, RoHS, WEEE CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 FCC: Part15 Subpart B, ANSI C63.4 |
| Warranty Details | 1-Year Brand Warranty |
Brand: Uniview
Title: Uniview NVR302-32S 32 Channel 2 SATA NVR
Model: NVR302-32S
Code: 161711408
Category: Security / CCTV NVR / Uniview
Product Type: NVR
Price: 19000
Warranty: 1
Availability: Available/In Stock
Description:
Brand
Uniview
Model
NVR302-32S
Type
32 Channel 2 SATA NVR
SATA
2 SATA interfaces
Capacity
Up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature)
IP Video Input
32-ch
Two-way Audio Input
1-ch, RCA
VGA Output
1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
HDMI Output
4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
Recording Resolution
8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Audio Output
1-ch, RCA
Audio Compression
G.711A, G.711U
Live view display
1/4/6/8/9/16/25/36
Synchronous Playback
16-ch
Corridor Mode Screen
3/4/5/7/9/10/12/16/32
FTP/Schedule/Event Snapshot
4-ch snapshot, up to D1 resolution
Capability
2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
Decoding format
Ultra 265/H.265/H.264
Liveview/Playback
8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Incoming Bandwidth
160Mbps
Outgoing Bandwidth
64Mbps
Web Browser
IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Remote Users
128
General Alarm
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
VCA Detection
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
VCA Search
Behavior Search
People Counting
People Flow Counting, Crowd Density Monitoring
Extras
Smart Intrusion Prevention (SIP), UMD by Camera
Total 8-ch
Network Interface
2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface
Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0
RS232
N/A
RS485
N/A
Alarm In
N/A
Alarm Out
N/A
Power
12V DC
Power Consumption: ≤ 15W (without HDD)
Working Environment
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions
380mm × 315mm ×53mm (15.0" × 12.4" ×2.1" )
Weight
≤ 2.48 Kg (5.47 lb)
Certification
Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC: Part15 Subpart B, ANSI C63.4
Warranty Details
1-Year Brand Warranty
