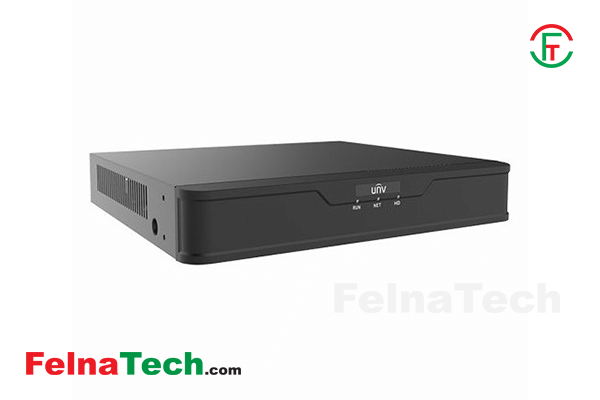

Uniview NVR301-16E2 16 Channel NVR
Model: NVR301-16E2
Brand: Uniview
Code: 161711404
| System | |
|---|---|
| Operating System | Linux system |
| Audio and Video | |
| IP Camera Input | 16 Channel |
| Display | |
| Interface | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Recording | |
| Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Video Detection And Alarm | |
| Video Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Face search, Behavior search, People counting |
| Playback And Backup | |
| Sync Playback | 16 channel |
| Third Party Support | |
| Third Party Support | ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T |
| Network | |
| Interface | 1 RJ45 |
| Ethernet Port | 10M/100M, self-adaptive ethernet interface |
| Network Function | Incoming Bandwidth: 64Mbps Outgoing Bandwidth: 64Mbps |
| Maximum User Access | Remote Users: 128 |
| Storage | |
| Internal HDD | 1 SATA interface |
| HDD Mode | Up to 6TB |
| Auxiliary Interface | |
| USB | Rear Panel: 1 x USB2.0, 1 x USB3.0 |
| Power | |
| Power Supply | 12V DC |
| Power Consumption | ≤9 W (without HDD) |
| Component Environment | |
| Operational Conditions | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Construction | |
| Dimensions | 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") |
| Net Weight | 1.3kg (2.87 lb) |
| Warranty | |
| Manufacturing Warranty | 1 year Warranty |
Brand: Uniview
Title: Uniview NVR301-16E2 16 Channel NVR
Model: NVR301-16E2
Code: 161711404
Category: Security
Sub Category: CCTV NVR
Sub-Sub Category: Uniview
Price: 10560
Offer Status: 0
Description:
System
Operating System
Linux system
Audio and Video
IP Camera Input
16 Channel
Display
Interface
HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Resolution
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Recording
Resolution
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Video Detection And Alarm
Video Detection
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Face search, Behavior search, People counting
Playback And Backup
Sync Playback
16 channel
Third Party Support
Third Party Support
ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Network
Interface
1 RJ45
Ethernet Port
10M/100M, self-adaptive ethernet interface
Network Function
Incoming Bandwidth: 64Mbps
Outgoing Bandwidth: 64Mbps
Maximum User Access
Remote Users: 128
Storage
Internal HDD
1 SATA interface
HDD Mode
Up to 6TB
Auxiliary Interface
USB
Rear Panel: 1 x USB2.0, 1 x USB3.0
Power
Power Supply
12V DC
Power Consumption
≤9 W (without HDD)
Component Environment
Operational Conditions
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Construction
Dimensions
260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Net Weight
1.3kg (2.87 lb)
Warranty
Manufacturing Warranty
1 year Warranty
