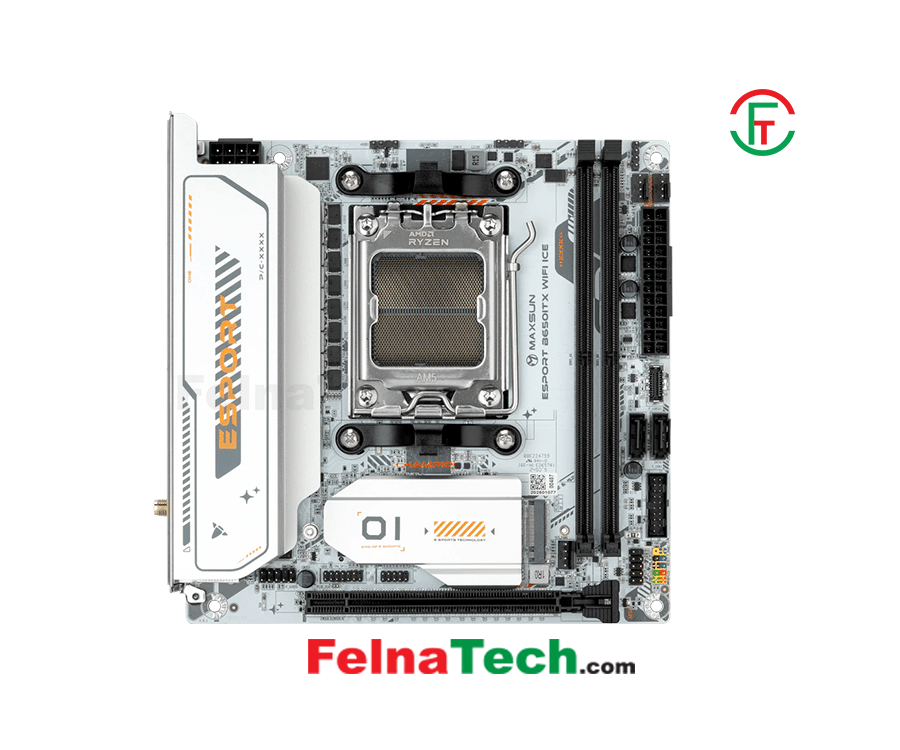

MAXSUN eSport B650ITX WIFI ICE AM5 DDR5 AMD B650 m-ITX Motherboard

Brand: Maxsun

Title: MAXSUN eSport B650ITX WIFI ICE AM5 DDR5 AMD B650 m-ITX Motherboard

Model: ESPORT-B650ITX-WIFI-ICE

Code: 122242204

Category: Component / Motherboard AMD / Maxsun

Product Type: Motherboard

Price: 16800

Warranty: 3

Availability: Out of Stock

Description:

Processor

CPU Socket

AM5, compatible with Ryzen 7000/8000/9000 series processors
TDP: 105-180W

Mainboard

Chipset

AMD B650 high-speed chipset

Memory

Memory Size

96GB

Memory Type

DDR5

Memory

RAM: 2 x DIMM DDR5 slots, supporting up to 96GB
Dual-channel support
Frequency Support:
4800/5200/5600(OC)/6000(OC)/6200(OC)/6400(OC)/6600(OC)/6800(OC)/
7000(OC)/7200(OC)/7400(OC)/7600(OC)/7800(OC)/8000(OC) MHz

Storage

Storage

2 x M.2 slots (supporting 2242/2280 PCIe 4.0 x4/x2 SSDs)
2 x SATA 3.0 ports

Display

Display

1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz)
1 x DisplayPort (up to 4096 x 2160 @ 60Hz)

Networking & Connectivity

Networks

Integrated Realtek 8125BG/D LAN chip
Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2
1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi

Audio & Microphone

Audio

Integrated Realtek ALC897 audio chip

Ports

USB

Rear I/O: 4 x USB 3.2 Gen 1, 4 x USB 2.0
Internal Headers: 1 x USB 2.0 header (supports 2 ports),
1 x USB 3.2 Gen 1 header (supports 2 ports), 1 x USB Type-C 10G port

Special Features

Features

1 x 24-PIN ATX power connector
RGB Headers: 2 x 5V ARGB headers, 1 x 12V RGB header with MAXSUN Sync support
1 x 8-PIN ATX12V power connector (12V input)
Fan Headers: 2 system fan headers, 1 CPU fan header
1 x COM A header
1 x Rear CLR_CMOS button
1 x TPM header

Physical Specification

Color

White

Expansion Slots

1 x PCIe 5.0 x16 slot

Form Factor

m-ITX

Dimension

170 x 170 mm

Technical Info

Brand

MAXSUN

Model

eSport B650ITX WIFI ICE

Warranty Information

Warranty

3-Years
