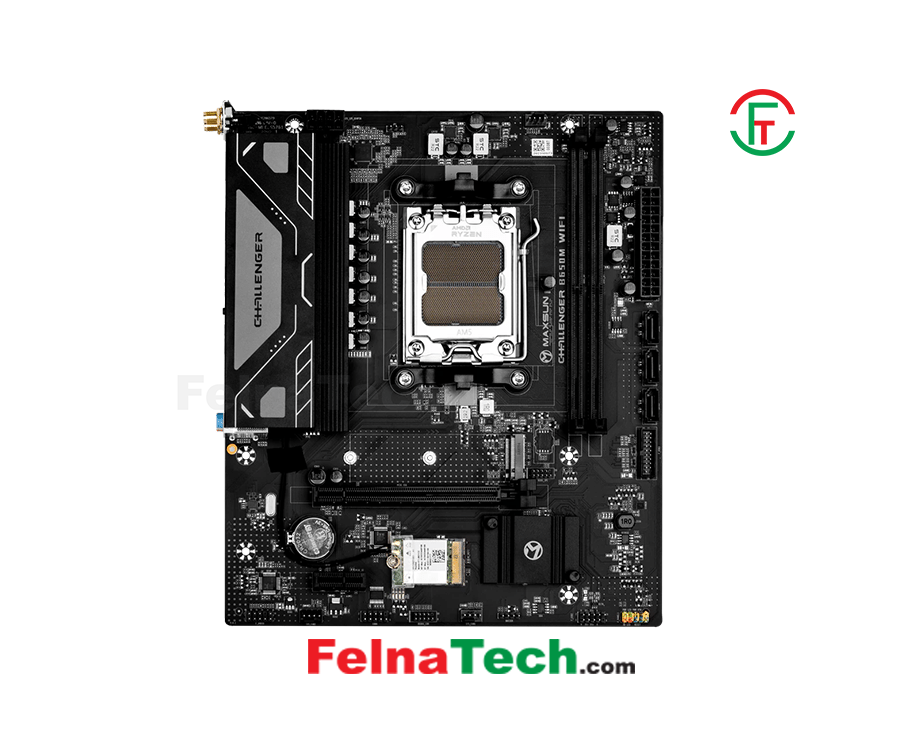

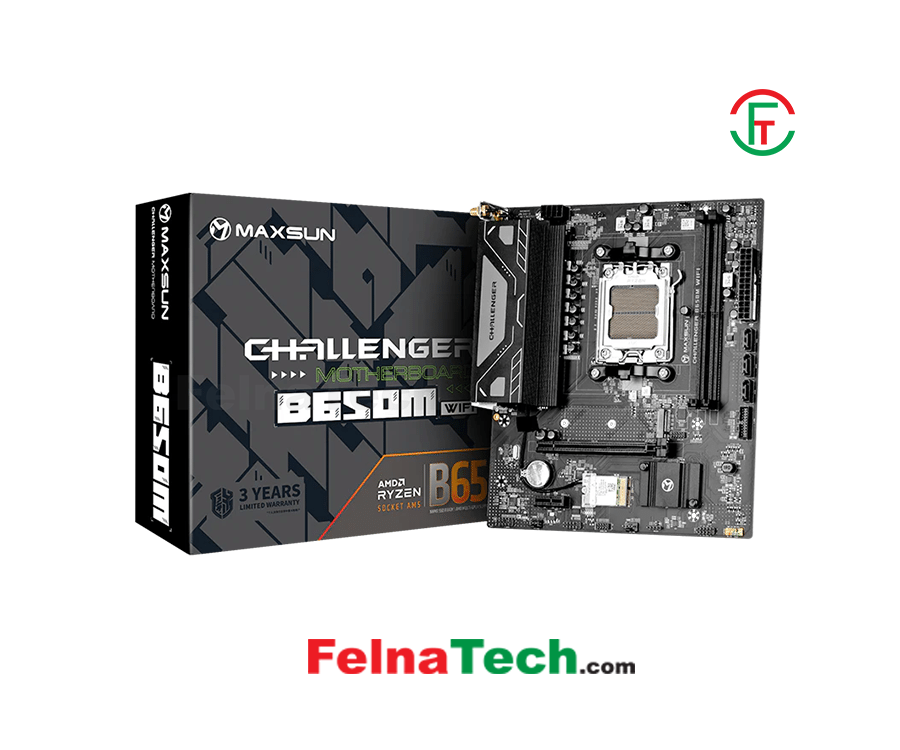

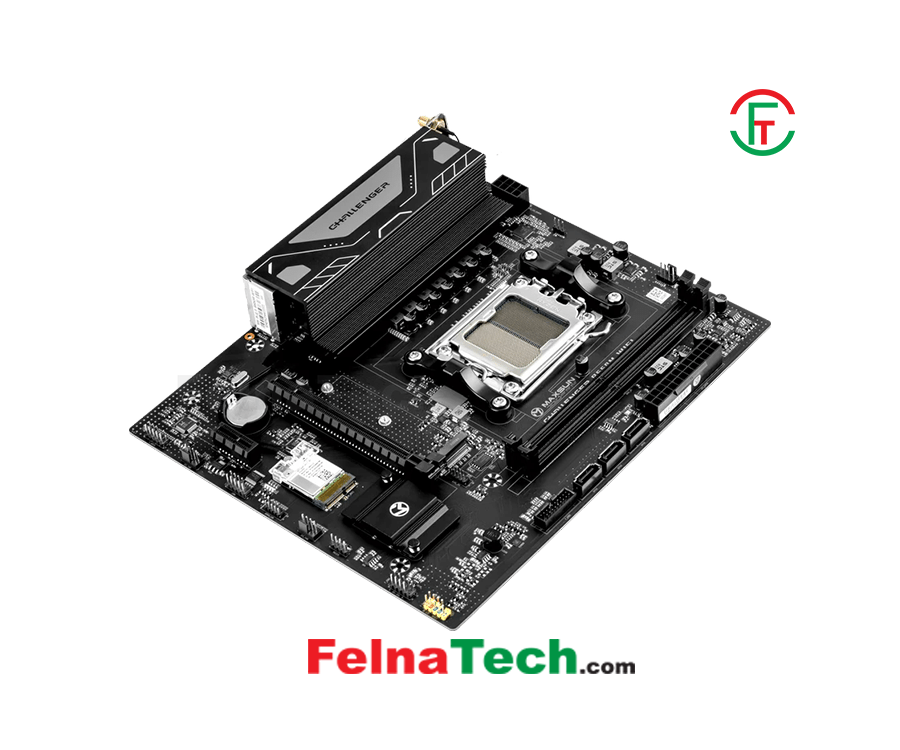

Maxsun Challenger B650M WIFI Micro ATX Motherboard
Model: MS-CHALLENGER-B650M
Brand: Maxsun
Code: 122242203
| CHIPSET | AMD® B650 Chipset |
| CPU (Max Support) | Supports LGA1718 slot AMD RYZEN7000 Series TDP: 155W (6+2+1 items) |
| MEMORY | 2* DIMM DDR5 memory slots Supports dual-channel memory technology Support 4800MHZ/5200MHZ/OC Memeroy Frequency |
| ONBOARD GRAPHICS | 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. |
| EXPANSION SLOT | 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot |
| STORAGE | M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)4x SATA 6Gb/s ports |
| USB | Onboard rear ports: 4* USB3.2 GEN1 ports, 2* USB2.0 portsOn-board pins: 1* set (2 pcs) of USB2.0 pins, 1* set (2 pcs) of USB3.2 GEN1 pins |
| LAN | Realtek® RTL8111HNIC Chip |
| AUDIO | Realtek® ALC897 Codec5.1-Channel High Definition Audio |
| INTERNAL I/O | 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS |
| SSD | 1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only)3* SATA3.0 ports |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | M-ATX245mm x 210mm |
| Warranty | 3 years |
Brand: Motherboard / Maxsun
Title: Maxsun Challenger B650M WIFI Micro ATX Motherboard
Model: MS-CHALLENGER-B650M
Code: 122242203
Category: Component / Motherboard AMD / Maxsun
Product Type: Motherboard
Price: 15200
Warranty: 3
Availability: Available/In Stock
Description:
CHIPSET
AMD® B650 Chipset
CPU (Max Support)
Supports LGA1718 slot
AMD RYZEN7000 Series
TDP: 155W (6+2+1 items)
MEMORY
2* DIMM DDR5 memory slots
Supports dual-channel memory technology
Support 4800MHZ/5200MHZ/OC Memeroy Frequency
ONBOARD GRAPHICS
1x VGA
*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types.
EXPANSION SLOT
1x PCIe 4.0 x16 slot
1x PCIe 3.0 x4 slot
1x PCIe 3.0 x1 slot
STORAGE
M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)4x SATA 6Gb/s ports
USB
Onboard rear ports: 4* USB3.2 GEN1 ports, 2* USB2.0 portsOn-board pins: 1* set (2 pcs) of USB2.0 pins, 1* set (2 pcs) of USB3.2 GEN1 pins
LAN
Realtek® RTL8111HNIC Chip
AUDIO
Realtek® ALC897 Codec5.1-Channel High Definition Audio
INTERNAL I/O
1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
1x PS/2 interface
1x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x 4-Pin SPEAKER
1x Front Audio
1x COM_A Port
1x 9-Pin DEBUG_CON
1x CLR CMOS
SSD
1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only)3* SATA3.0 ports
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR
M-ATX245mm x 210mm
Warranty
3 years
