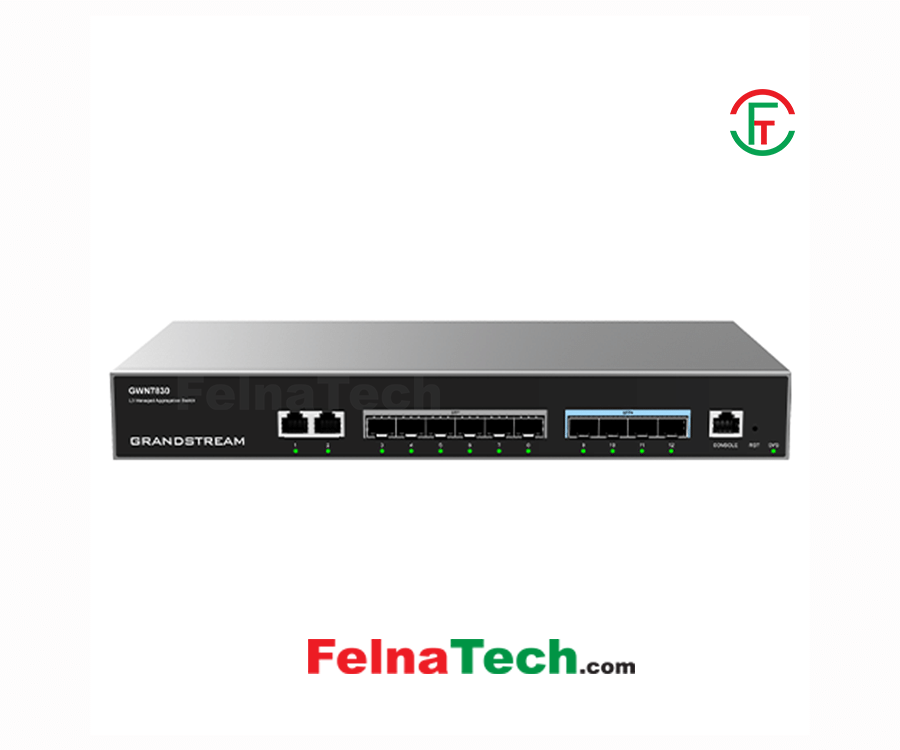

Grandstream GWN7830 12 Port Layer 3 Gigabit Managed Switch

Brand: Switch / Grandstream

Title: Grandstream GWN7830 12 Port Layer 3 Gigabit Managed Switch

Model: GWN7830

Code: 216438608

Category: Networking / Switch (PoE) / Grandstream

Product Type: Switch

Price: 21500

Warranty: 1

Availability: Available/In Stock

Description:

Main Feature

Type

Layer 3 Managed Switch

Port

2x Gigabit Ethernet Ports
6x Gigabit SFP Ports
4x Gigabit SFP+ Ports

Network Standard

IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

Advanced Functions

Built-in QoS allows for prioritization of network traffic
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping

Transmission Method

Forwarding Mode: Store-and-forward

Data Transmission Rate

Switching Capability: 96Gbps
Total non-blocking throughput: 48Gbps
Forwarding Rate: 71.424Mpps
Packet Buffer: 12Mb
Network Latency: <4µs


MAC Address Table

16K MAC addresses, including static, dynamic and filtering MAC address

Environment

Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)

Hardware Features

LED

1x tri-color LED for device tracking and status indication

Power Supply

30W Integrated Power Supply

Dimensions (L x W x H)

330mm(L)x175mm(W)x44mm(H)

Weight

1.91Kg

Manufacture Warranty

Warranty

1 Year
