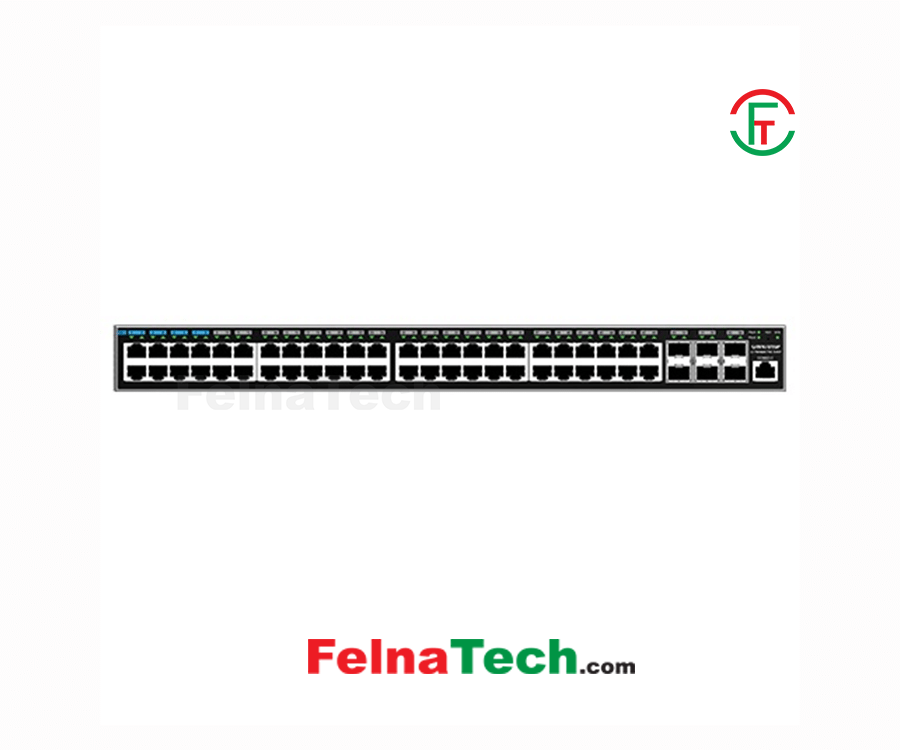

Grandstream GWN7816P 48 Port Layer 3 Gigabit Managed PoE Switch
Model: GWN7816P
Brand: Grandstream
Code: 216438607
Product Coming Soon| Main Feature | |
|---|---|
| Type | Layer 3 PoE Managed Switch |
| Port | 48x Gigabit Ethernet Ports 6x 10Gigabit SFP+ Ports |
| Network Standard | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x |
| Advanced Functions | Built-in QoS allows for prioritization of network traffic Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping |
| Transmission Method | Forwarding Mode: Store-and-forward |
| Data Transmission Rate | Switching Capability: 216Gbps Total non-blocking throughput: 108Gbps Forwarding Rate: 160.704Mpps Packet Buffer: 16Mb Network Latency: <4µs |
| MAC Address Table | 16K MAC addresses, including static, dynamic and filtering MAC address 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP(pending) 27 link aggregation Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+) |
| Environment | Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing) |
| Hardware Features | |
| LED | 1x tri-color LED for device tracking and status indication 2x bi-color LEDs for per power supply PSU1/2 54x green-color LEDs for data transferring 48x yellow-color LEDs for PoE powered |
| Power Supply | 60W(1-8,PoE++) 30W(9-48) Max Output Power per PoE Port 1 PSU of 920W by default, support 1 Hot swap PSU(Purchased Separately) 740W with 1 PSU Max Total PoE Output Power |
| Dimensions (L x W x H) | 440mm(L)x380mm(W)x44mm(H) |
| Weight | 6Kg |
| Manufacture Warranty | |
| Warranty | 1 Year |
Brand: Switch / Grandstream
Title: Grandstream GWN7816P 48 Port Layer 3 Gigabit Managed PoE Switch
Model: GWN7816P
Code: 216438607
Category: Networking / Switch (PoE) / Grandstream
Product Type: Switch
Price: 0
Warranty: 1
Availability: Upcoming
Description:
Main Feature
Type
Layer 3 PoE Managed Switch
Port
48x Gigabit Ethernet Ports
6x 10Gigabit SFP+ Ports
Network Standard
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
Advanced Functions
Built-in QoS allows for prioritization of network traffic
Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Transmission Method
Forwarding Mode: Store-and-forward
Data Transmission Rate
Switching Capability: 216Gbps
Total non-blocking throughput: 108Gbps
Forwarding Rate: 160.704Mpps
Packet Buffer: 16Mb
Network Latency: <4µs
MAC Address Table
16K MAC addresses, including static, dynamic and filtering MAC address
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP(pending)
27 link aggregation
Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)
Environment
Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
Hardware Features
LED
1x tri-color LED for device tracking and status indication
2x bi-color LEDs for per power supply PSU1/2
54x green-color LEDs for data transferring
48x yellow-color LEDs for PoE powered
Power Supply
60W(1-8,PoE++) 30W(9-48) Max Output Power per PoE Port
1 PSU of 920W by default, support 1 Hot swap PSU(Purchased Separately)
740W with 1 PSU Max Total PoE Output Power
Dimensions (L x W x H)
440mm(L)x380mm(W)x44mm(H)
Weight
6Kg
Manufacture Warranty
Warranty
1 Year
