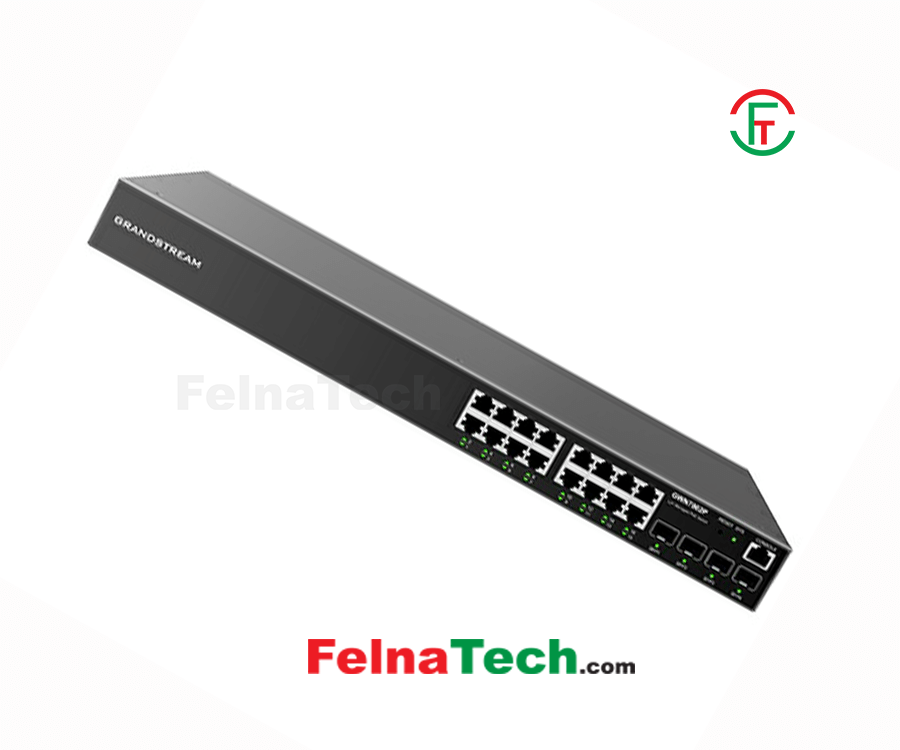

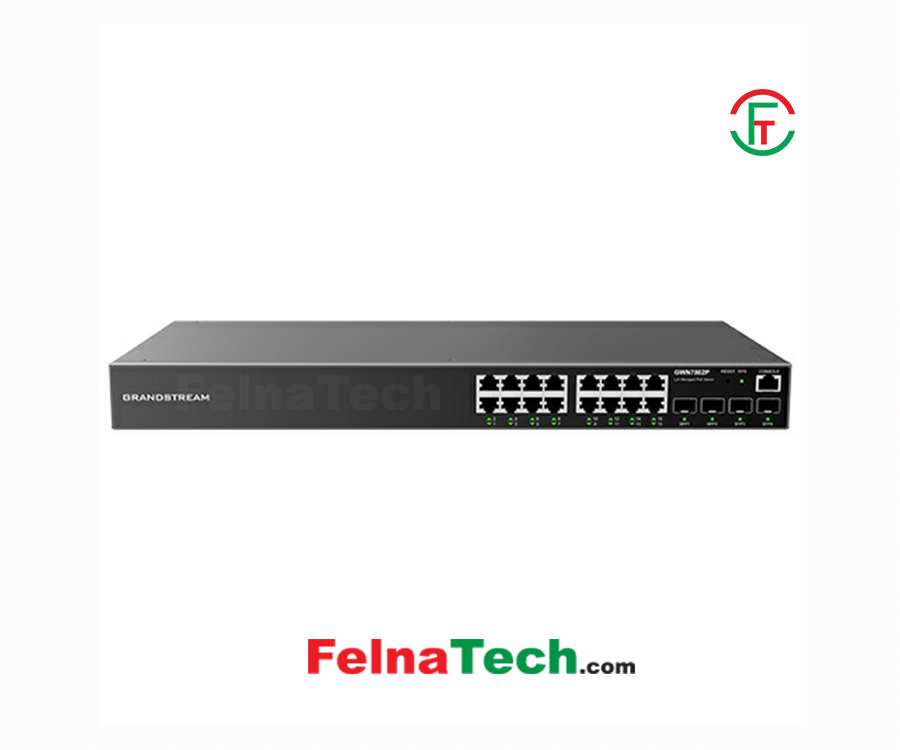

Grandstream GWN7802P 16 Port Gigabit Layer 2+ Managed PoE Network Switch

25,500 TK

In Stock: Yes
Model: GWN7802P
Brand: Grandstream
Code: 216438603

Category:Networking

0 people are watching this product now

Buy With EMI

0 ৳/Month

EMI for upto 12 Months

For Inquiry: +880-1958-666975

Share this product on social media

Main Feature
Type	Gigabit Layer 2+ Managed PoE Network Switch
Port	16x Gigabit Ethernet Ports 4x Gigabit SFP Ports
Network Standard	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
Advanced Functions	Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models Supports deployment in IPv6 and IPv4 networks Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform Built-in QoS allows for prioritization of network traffic
Transmission Method	Forwarding Mode: Store-and-forward
Data Transmission Rate	Switching Capability: 40Gbps Total non-blocking throughput: 20Gbps Forwarding Rate: 29.76Mpps Packet Buffer: 4.1Mb Network Latency: Avg<4µs
MAC Address Table	8K static, dynamic and filtering MAC addresses 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP (pending) 8 link aggregation groups Spanning tree, 16 instances for STP/RSTP/MSTP
Environment	Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)
Hardware Features
LED	1x tri-color LED for device tracking and status indication 20x green-color LEDs for data ports 16x yellow-color LEDs for PoE ports
Power Supply	270W Integrated Power Supply 30W Max Output Power per PoE Port 240W Max Total PoE Output Power
Dimensions (L x W x H)	440mm(L)x200mm(W)x44mm(H)
Weight	3Kg
Manufacture Warranty
Warranty	1 Year

Brand: Switch / Grandstream

Title: Grandstream GWN7802P 16 Port Gigabit Layer 2+ Managed PoE Network Switch

Model: GWN7802P

Code: 216438603

Category: Networking / Switch (PoE) / Grandstream

Product Type: Switch

Price: 25500

Warranty: 1

Availability: Available/In Stock

Description:

Main Feature

Type

Gigabit Layer 2+ Managed PoE Network Switch

Port

16x Gigabit Ethernet Ports
4x Gigabit SFP Ports

Network Standard

IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

Advanced Functions

Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
Supports deployment in IPv6 and IPv4 networks
Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
Built-in QoS allows for prioritization of network traffic

Transmission Method

Forwarding Mode: Store-and-forward

Data Transmission Rate

Switching Capability: 40Gbps
Total non-blocking throughput: 20Gbps
Forwarding Rate: 29.76Mpps
Packet Buffer: 4.1Mb
Network Latency: Avg<4µs

MAC Address Table

8K static, dynamic and filtering MAC addresses
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP (pending)
8 link aggregation groups
Spanning tree, 16 instances for STP/RSTP/MSTP

Environment

Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)

Hardware Features

LED

1x tri-color LED for device tracking and status indication
20x green-color LEDs for data ports
16x yellow-color LEDs for PoE ports

Power Supply

270W Integrated Power Supply
30W Max Output Power per PoE Port
240W Max Total PoE Output Power

Dimensions (L x W x H)

440mm(L)x200mm(W)x44mm(H)

Weight

3Kg

Manufacture Warranty
