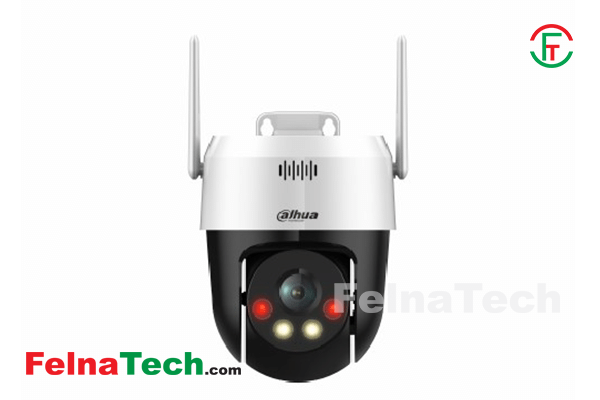

Dahua SD2A500HB-GN-AW-PV-S2 5MP Full-color Network PTZ Camera

8,900 TK

In Stock: Yes
Model: DAHUA-SD2A500HB-GN-AW-PV-S2
Brand: Dahua
Code: 16152003

Category:Security

0 people are watching this product now

Buy With EMI

0 ৳/Month

EMI for upto 12 Months

For Inquiry: +880-1958-666975

Share this product on social media

General
Dimensions	140.5 mm × Φ111.0 mm (5.53" × Φ4.45")
Weight	0.5 kg (1.10 lb)
Pan/Tilt/Rotation	Pan: 0°–345° Tilt: 0°–80° Control Speed: Pan: 0.1°–74°/s Tilt: 0.1°–36.4°/s Preset Speed: Pan: 62°/s Tilt: 36.3°/s
Operating Conditions	–30 °C to +55 °C (–22 °F to +131 °F)
Storage Conditions	≤ 95%
Power Supply	12 VDC/1.5 A ± 10%
Power Consumption	Basic: 4 W Max.: 12.95 W (illuminator + PT + speaker + heating glass)
Camera
Image Sensor	1/2.8" 5 Megapixel STARVIS CMOS.
Effective Pixels	2560 (H) × 1920 (V), 5MP
Scanning System	Progressive
Electronic Shutter Speed	1/3 s–1/100,000 s
Minimum Illumination	0.02Lux/F1.9, 30IRE, 0Lux IR on
S/N Ratio	≥ 55 dB
IR Distance	30 m (98.42 ft) (IR) 30 m (98.42 ft) (white light)
IR On/Off Control	Manual; auto; off
IR LEDs	2 (IR light) 2 (White light)
Lens
Focal Length	4 mm
Max Aperture	F1.6
Angle of View	H: 80.4° V: 58.1° D: 104.8°
Close Focus Distance	0.3 m (0.98 ft)
Video
Resolution	5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Frame Rate	Main stream: 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps) Sub stream: D1/CIF (1–25/30 fps)
Video Output	H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+
Day/Night	Auto (ICR)/Color/B/W
BLC Mode	Yes
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Special Features
Features	Smart IR Electronic Defog Fixed iris DWDR 1x RJ-45 (10/100 Base-T) Wi-Fi–Wireless Standard: 802.11n; IEEE802.11b; 802.11g Wi-Fi–Wireless Frequency Range: 2.4 GHz Wi-Fi–Wireless Transmission Rate: 150 Mbps
Warranty
Warranty	1-Year

Brand: Dahua

Title: Dahua SD2A500HB-GN-AW-PV-S2 5MP Full-color Network PTZ Camera

Model: DAHUA-SD2A500HB-GN-AW-PV-S2

Code: 16152003

Category: Security

Sub Category: CCTV PTZ Camera

Sub-Sub Category: Dahua

Price: 9000

Offer Status: 0

Description:

General

Dimensions

140.5 mm × Φ111.0 mm (5.53" × Φ4.45")

Weight

0.5 kg (1.10 lb)

Pan/Tilt/Rotation

Pan: 0°–345°
Tilt: 0°–80°

Control Speed:
Pan: 0.1°–74°/s
Tilt: 0.1°–36.4°/s

Preset Speed:
Pan: 62°/s
Tilt: 36.3°/s

Operating Conditions

–30 °C to +55 °C (–22 °F to +131 °F)

Storage Conditions

≤ 95%

Power Supply

12 VDC/1.5 A ± 10%

Power Consumption

Basic: 4 W
Max.: 12.95 W (illuminator + PT + speaker + heating glass)

Camera

Image Sensor

1/2.8" 5 Megapixel STARVIS CMOS.

Effective Pixels

2560 (H) × 1920 (V), 5MP

Scanning System

Progressive

Electronic Shutter Speed

1/3 s–1/100,000 s

Minimum Illumination

0.02Lux/F1.9, 30IRE, 0Lux IR on

S/N Ratio

≥ 55 dB

IR Distance

30 m (98.42 ft) (IR)
30 m (98.42 ft) (white light)

IR On/Off Control

Manual; auto; off

IR LEDs

2 (IR light)
2 (White light)

Lens

Focal Length

4 mm

Max Aperture

F1.6

Angle of View

H: 80.4°
V: 58.1°
D: 104.8°

Close Focus Distance

0.3 m (0.98 ft)

Video

Resolution

5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps)
Sub stream: D1/CIF (1–25/30 fps)

Video Output

H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+

Day/Night

Auto (ICR)/Color/B/W

BLC Mode

Yes

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Special Features

Features

Smart IR
Electronic Defog
Fixed iris
DWDR
1x RJ-45 (10/100 Base-T)
Wi-Fi–Wireless Standard: 802.11n; IEEE802.11b; 802.11g
Wi-Fi–Wireless Frequency Range: 2.4 GHz
Wi-Fi–Wireless Transmission Rate: 150 Mbps

Warranty

1-Year
