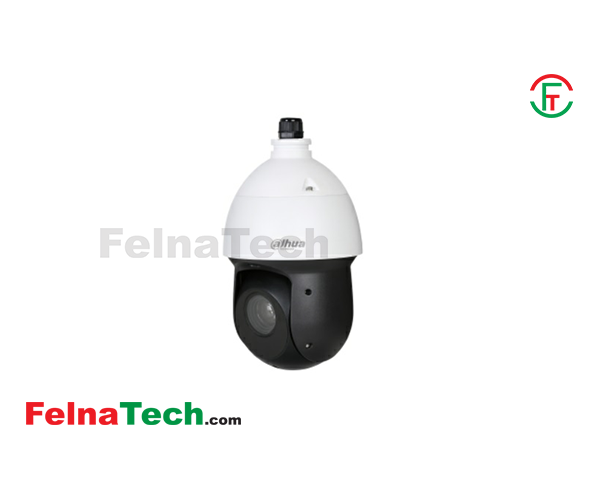

Dahua DH-SD49225-HC-LA 2MP 25x Starlight IR PTZ HDCVI Camera
Model: DH-SD49225-HC-LA
Brand: Dahua
Code: 16152009
| General | |
|---|---|
| Casing | Metal |
| Dimensions | 295.4 mm × Φ160.0 mm (11.63" × Φ6.30") |
| Weight | 3Kg |
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH |
| Power Supply | DC 12V/3A |
| Power Consumption | 13W, 22W (IR on, Heater on) |
| Camera | |
| Image Sensor | 1/2.8" STARVIS CMOS |
| Effective Pixels | 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s–1/100000 s |
| Minimum Illumination | Color: 0.005 Lux@F1.6 B/W: 0.0005 Lux@F1.6 0 Lux@F1.6 (IR on) |
| S/N Ratio | 120 dB |
| IR Distance | Distance up to 100m (328ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 6 |
| Lens | |
| Focal Length | 4.8mm~120mm |
| Max Aperture | F1.6–F3.5 |
| Angle of View | H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Video | |
| Resolution | 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480) |
| Frame Rate | 1080P (25/30 fps), 720P (25/30/50/60 fps) |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR (120dB) |
| BLC Mode | Support |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Interface | |
| Audio Interface | 1 channel in |
| Video Interface | 1 |
| Special Features | |
| Features | Optical Zoom: 25x Digital Zoom: 16x Flip: 180° Privacy Masking: Up to 24 areas White Balance: Auto, ATW, Indoor, Outdoor, Manual PTZ- Pan/Tilt Range- Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° Manual Control Speed- Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s Preset Speed- Pan: 240° /s; Tilt: 200° /s Presets- 300 PTZ Mode: 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Speed Setup: Human-oriented focal Length/ speed adaptation Power up Action: Auto restore to previous PTZ and lens status after power failure Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period Protocol: DH-SD, Pelco-P/D (Auto recognition) |
| Warranty | |
| Warranty | 1 Year |
Brand: Dahua
Title: Dahua DH-SD49225-HC-LA 2MP 25x Starlight IR PTZ HDCVI Camera
Model: DH-SD49225-HC-LA
Code: 16152009
Category: Security
Price: 24500
Sub-Sub Category: Dahua
Offer Status: 0
Description:
General
Casing
Metal
Dimensions
295.4 mm × Φ160.0 mm (11.63" × Φ6.30")
Weight
3Kg
Operating Conditions
-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Power Supply
DC 12V/3A
Power Consumption
13W, 22W (IR on, Heater on)
Camera
Image Sensor
1/2.8" STARVIS CMOS
Effective Pixels
2MP
Scanning System
Progressive
Electronic Shutter Speed
1/3 s–1/100000 s
Minimum Illumination
Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6
0 Lux@F1.6 (IR on)
S/N Ratio
120 dB
IR Distance
Distance up to 100m (328ft)
IR On/Off Control
Auto/Manual
IR LEDs
6
Lens
Focal Length
4.8mm~120mm
Max Aperture
F1.6–F3.5
Angle of View
H: 58.5°–2.8°;
V: 33.2°–1.5°;
D: 67.5°–3.2°
Focus Control
Auto/Semi-Auto/Manual
Close Focus Distance
0.1 m–1.5 m (0.33 ft–4.92 ft)
Video
Resolution
1080P (1920 × 1080); 720P (1280 × 720);
D1 (704 × 576/704 × 480)
Frame Rate
1080P (25/30 fps), 720P (25/30/50/60 fps)
Day/Night
Auto(ICR) / Color / B/W
BLC Mode
BLC / HLC / WDR (120dB)
BLC Mode
Support
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR (2D/3D)
Interface
Audio Interface
1 channel in
Video Interface
1
Special Features
Features
Optical Zoom: 25x
Digital Zoom: 16x
Flip: 180°
Privacy Masking: Up to 24 areas
White Balance: Auto, ATW, Indoor, Outdoor, Manual
PTZ-
Pan/Tilt Range- Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed- Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed- Pan: 240° /s; Tilt: 200° /s
Presets- 300
PTZ Mode: 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup: Human-oriented focal Length/ speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after
power failure
Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
Protocol: DH-SD, Pelco-P/D (Auto recognition)
Warranty
Warranty
1 Year
