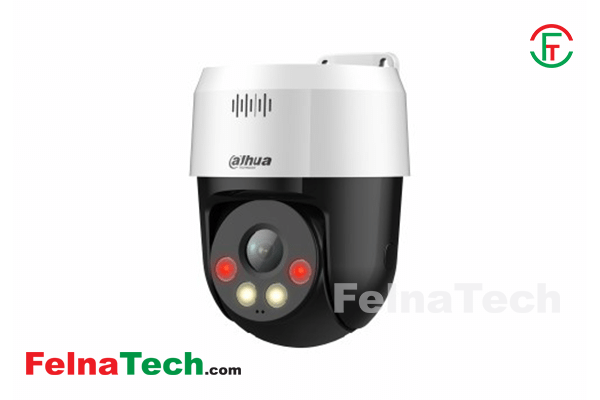

Dahua SD2A200HB-GN-A-PV-S2 2MP Full-color Network PTZ Camera

Brand: Dahua

Title: Dahua SD2A200HB-GN-A-PV-S2 2MP Full-color Network PTZ Camera

Model: DAHUA-SD2A200HB-GN-A-PV-S2

Code: 16152001

Category: Security

Sub Category: CCTV PTZ Camera

Sub-Sub Category: Dahua

Price: 6800

Offer Status: 0

Description:

General

Dimensions

140.5 mm × Φ111.0 mm (5.53" × Φ4.45")

Weight

0.5 kg (1.10 lb)

Pan/Tilt/Rotation

Pan: 0°–345°
Tilt: 0°–80°

Control Speed:
Pan: 0.1°–74°/s
Tilt: 0.1°–36.4°/s

Preset Speed:
Pan: 62°/s
Tilt: 36.3°/s

Operating Conditions

–30 °C to +55 °C (–22 °F to +131 °F)

Storage Conditions

≤ 95%

Power Supply

12 VDC/1.5 A ± 10% PoE (802.3af)

Power Consumption

Basic: 4 W
Max.: 12.95 W (illuminator + PT + speaker + heating glass)

Camera

Image Sensor

1/2.8" CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

1/3 s–1/100,000 s

Minimum Illumination

0.02Lux/F1.9, 30IRE, 0Lux IR on

S/N Ratio

≥ 55 dB

IR Distance

30 m (98.42 ft) (IR)
30 m (98.42 ft) (white light)

IR On/Off Control

Manual; auto; off

IR LEDs

2 (IR light)
2 (White light)

Lens

Focal Length

4 mm

Max Aperture

F2.0

Angle of View

H: 86.8° V: 47.1° D: 102.2°

Close Focus Distance

0.6 m (1.97 ft)

Video

Resolution

1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 1080p/1.3M/720p (1–25/30 fps)
Sub stream: D1/CIF (1–25/30 fps)

Video Output

H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Day/Night

Auto (ICR)/Color/B/W

BLC Mode

Yes

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Special Features

Features

Smart IR
Electronic Defog
Fixed iris
DWDR

Warranty

Warranty

1-Year
