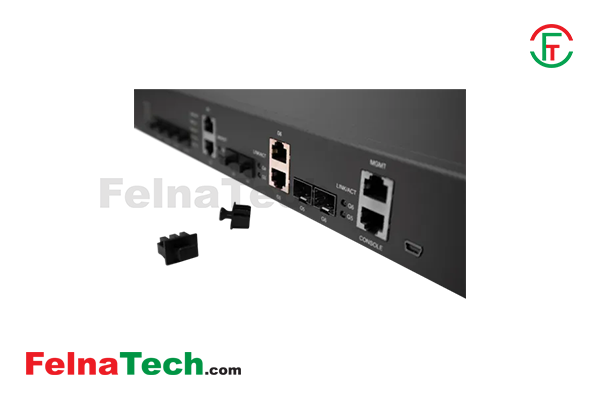

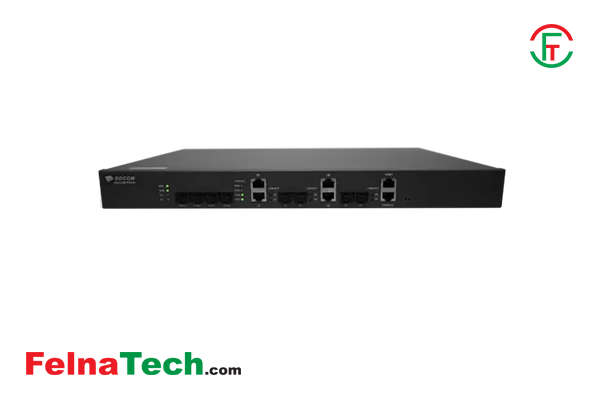

BDCOM P3310C-2AC 4-Port EPON OLT
Model: P3310C-2AC
Brand: BDcom
Code: 2110929614
BDCOM P3310C-2AC 4-Port EPON OLT
The BDCOM P3310C-2AC 4-Port EPON OLT provides an efficient and scalable connection for network expansion with a system capacity that permits a maximum division ratio of 1:64 and a backplane throughput of 32 Gbps. With interfaces that include four fixed EPON ports and six GE ports (two RJ45, two COMBO, and two SFP), it offers flexible connectivity choices for different network configurations. Reliable data transfer is ensured by the EPON interface, which provides symmetrical downlink/uplink transmission rates of 1 Gbps, PON port average optical power ranging from +2dBm to +7dBm, and sensitivity of -30 dBm. ONU authentication techniques are one type of security feature that protects network integrity. Respecting IEEE standards like 802.3ah, 802.1D, 802.1Q, and 802.1w guarantees that it will work and communicate with the current network architecture. Efficient traffic management is ensured by prioritizing Quality of Service (QoS) with features including back pressure flow control, IEEE 802.3x flow control, and support for DBA and SLA. The IEEE802.1Q and port-based VLANs are supported by the BDCOM P3310C-2AC 4-Port EPON OLT. Multicast capabilities like IGMP Snooping improve network performance. Features that ensure continuous operation, such as hot-swappable EPON optical modules and Unidirectional Link Detection (UDLD), reinforce reliability. ACLs, storm control, port isolation, user limiting, and data encryption on the PON interface all contribute to network security. TFTP and FTP are supported for software upgrades, and management is enabled via CLI, Web, SNMP, and TELNET, among other modalities. Standard 19" rack compatibility facilitates installation, and two PSUs with input voltages ranging from 100V to 240V are supported as power supply options to accommodate various deployment scenarios. The BDCOM P3310C-2AC offers broadband service providers and businesses a comprehensive and dependable EPON OLT solution, with a maximum power consumption of 48W.
Brand: BDcom
Title: BDCOM P3310C-2AC 4-Port EPON OLT
Model: P3310C-2AC
Code: 2110909
Category: Networking
Sub Category: OLT
Sub-Sub Category:
Price: 47250
Offer Status: 0
Description:
BDCOM P3310C-2AC 4-Port EPON OLT
The BDCOM P3310C-2AC 4-Port EPON OLT provides an efficient and scalable connection for network expansion with a system capacity that permits a maximum division ratio of 1:64 and a backplane throughput of 32 Gbps. With interfaces that include four fixed EPON ports and six GE ports (two RJ45, two COMBO, and two SFP), it offers flexible connectivity choices for different network configurations. Reliable data transfer is ensured by the EPON interface, which provides symmetrical downlink/uplink transmission rates of 1 Gbps, PON port average optical power ranging from +2dBm to +7dBm, and sensitivity of -30 dBm. ONU authentication techniques are one type of security feature that protects network integrity. Respecting IEEE standards like 802.3ah, 802.1D, 802.1Q, and 802.1w guarantees that it will work and communicate with the current network architecture. Efficient traffic management is ensured by prioritizing Quality of Service (QoS) with features including back pressure flow control, IEEE 802.3x flow control, and support for DBA and SLA. The IEEE802.1Q and port-based VLANs are supported by the BDCOM P3310C-2AC 4-Port EPON OLT. Multicast capabilities like IGMP Snooping improve network performance. Features that ensure continuous operation, such as hot-swappable EPON optical modules and Unidirectional Link Detection (UDLD), reinforce reliability. ACLs, storm control, port isolation, user limiting, and data encryption on the PON interface all contribute to network security. TFTP and FTP are supported for software upgrades, and management is enabled via CLI, Web, SNMP, and TELNET, among other modalities. Standard 19" rack compatibility facilitates installation, and two PSUs with input voltages ranging from 100V to 240V are supported as power supply options to accommodate various deployment scenarios. The BDCOM P3310C-2AC offers broadband service providers and businesses a comprehensive and dependable EPON OLT solution, with a maximum power consumption of 48W.
