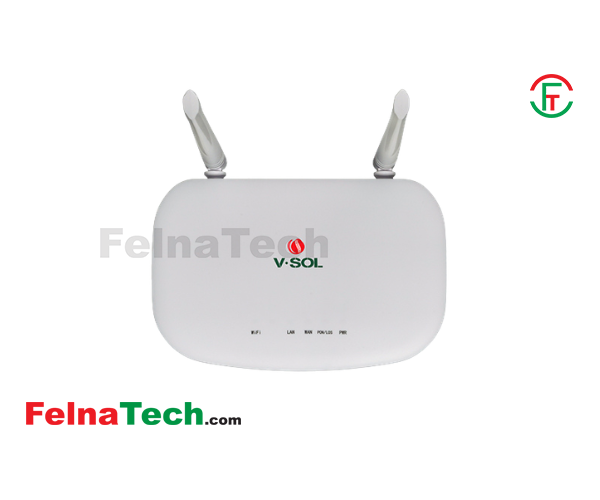

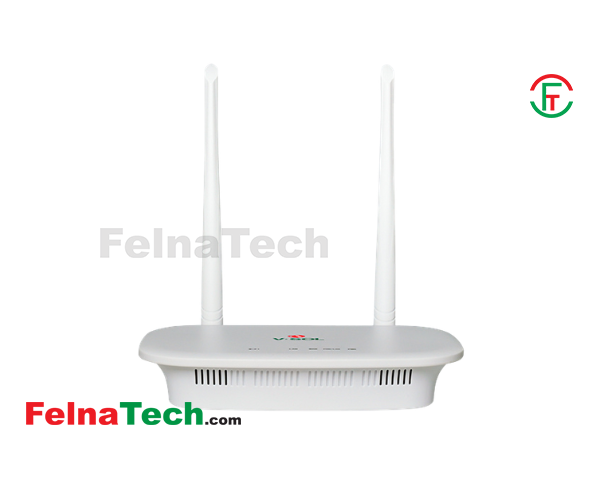

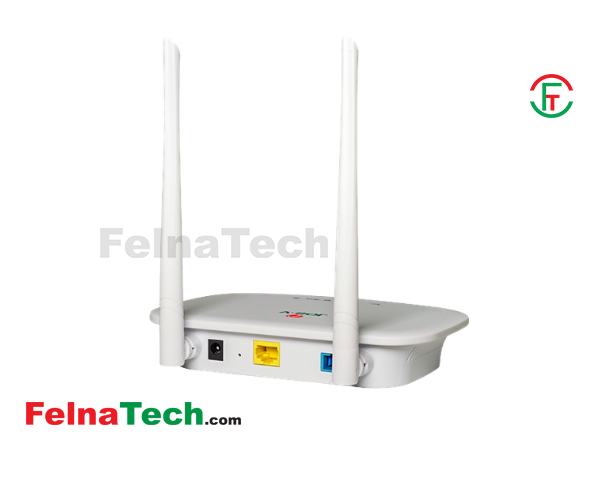

VSOL V2801RGW XPON 1GE Wi-Fi 4 ONT ONU Router

Brand: VSOL

Title: VSOL V2801RGW XPON 1GE Wi-Fi 4 ONT ONU Router

Model: V2801RGW

Code: 216246503

Category: Networking / Router / VSOL

Product Type: Router

Price: 1975

Warranty: 1

Availability: Available/In Stock

Description:

VSOL V2801RGW XPON 1GE Wi-Fi 4 ONT ONU Router

 Technical Specifications:

Model: V2801RGW
Chipset: High-performance Realtek XPON Chipset
PON Interface: 1 × XPON Port (GPON/EPON Auto Adaptive)
LAN Interface: 1 × 10/100/1000 Mbps Gigabit Ethernet Port
Wireless Speed: Up to 300 Mbps (2.4 GHz Band)
Antenna Type: 2 × Built-in Internal Antennas
Client Capacity: Connects up to 16–32 devices (Supports Multiple SSID / Guest Network)
VLAN Support: 802.1Q, 802.1p, 802.1ad (QinQ)
LED Status Indicators: Power, PON, LOS, LAN, WLAN
Physical Specs: Compact White Body | Weight: ~150–200g | Dim: 160 × 110 × 30 mm

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

XPON Dual Mode (GPON/EPON): Smart auto-detection seamlessly adapts to both GPON (ITU-T G.984) and EPON (IEEE 802.3ah) OLT networks.

Full Gigabit Wired Speed: Includes 1× 10/100/1000 Mbps auto-adaptive RJ45 Ethernet port for maximum throughput to PCs, gaming consoles, or switches.

Integrated Wi-Fi 4 Connectivity: Broadcasts on the 2.4GHz frequency band, delivering wireless data transfer rates up to 300 Mbps.

Wide Coverage Area: Built-in internal dual antennas efficiently cover up to ~1000 sq ft of typical indoor areas.

Flexible Operation Modes: Supports both Router Mode (PPPoE, DHCP, Static IP) and Bridge Mode for customized network setups.

IPTV & Multimedia Ready: Features IGMP Snooping (v1/v2/v3) and IGMP Proxy to ensure smooth, lag-free multicast streaming for IPTV services.

Advanced Network & Security: Built with WEP, WPA-PSK, WPA2-PSK encryption, MAC filtering, Access Control (ACL), a robust firewall, and DDoS protection.

Dual-Stack Support: Native compatibility with both IPv4 and IPv6 networking protocols.

Carrier-Grade Remote Management: Fully supports TR-069, OMCI, OAM, Web UI, and Telnet for easy remote configuration and automated firmware updates by network admins.


The VSOL V2801RGW is a high-performance, compact, and budget-friendly XPON ONT/ONU Wireless Router designed specifically for FTTH (Fiber to the Home) deployments across Bangladesh. Powered by a high-performance Realtek XPON chipset, this dual-mode device automatically detects and switches between GPON and EPON networks, giving local Internet Service Providers (ISPs) maximum operational flexibility and simplified inventory management.

Equipped with 1x Gigabit (1GE) LAN port and built-in Wi-Fi 4 (802.11b/g/n) capabilities with internal antennas, the V2801RGW is an excellent all-in-one entry-level solution. It delivers stable wireless coverage up to 1000 sq ft, making it perfect for residential homes, student messes, and small office setups without needing a separate standalone router.
