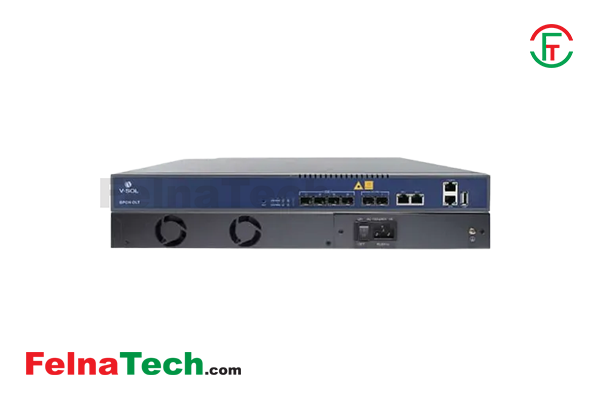

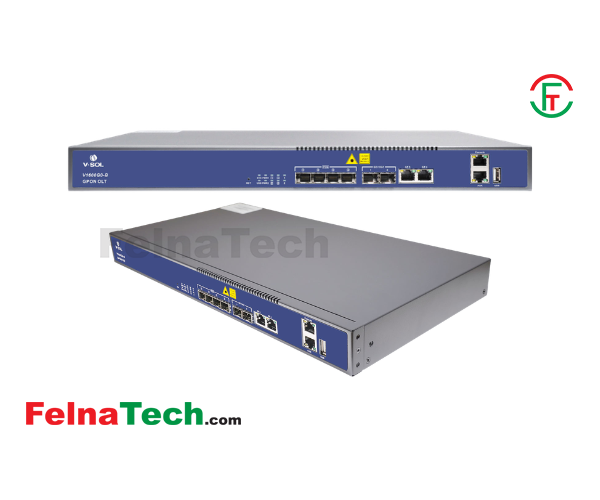

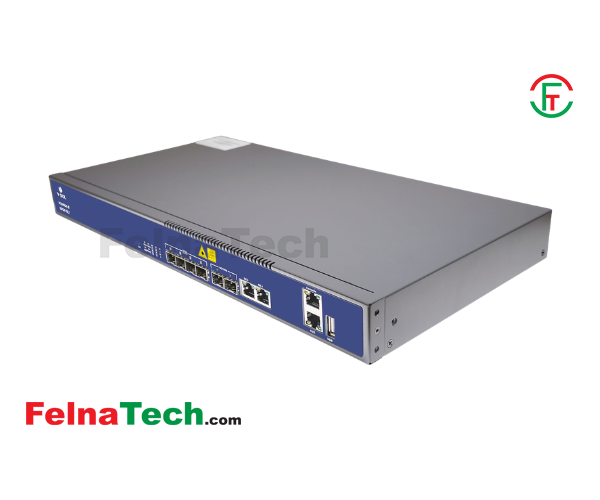

Vsol V1600G0-B 4 Port GPON OLT
Model: V1600G0-B
Brand: VSOL
Code: 2110929602
Vsol V1600G0-B 4 Port GPON OLT
The Vsol V1600G0-B is a high-performance 4-port GPON OLT (Gigabit Passive Optical Network Optical Line Terminal) that provides effective communication in network situations. With two RJ45 (GE) and two SFP+ (10GE) GE/10GE uplink ports, this Vsol V1600G0-B 4 Port GPON OLT provides adaptable connectivity options for a range of network configurations. The efficient distribution of high-speed internet services to many users is made possible by the Vsol V1600G0-B 4 Port GPON OLT, which has 4 GPON ports with SFP slots and supports a maximum splitting ratio of < 1:128. For console management (G2-B model), the VSOL OLT has management ports such as one FE out-band port, one CONSOLE port, one USB 2.0 port, and one Type-C USB port. PON port specifications, which guarantee dependable and fast data transmission, include a transmission distance of 20 km, an upstream speed of 1.244Gbps, and a downstream speed of 2.488Gbps. Using TX 1490nm and RX 1310nm wavelengths with SC/UPC connections and 9/125μm SMF fiber type, the Vsol V1600G0-B 4 Port GPON OLT offers Class B+, C, C+, C++, and C+++ PON module levels. The OLT has two power modules that are hot backup for increased reliability. It supports both DC (-48V) and AC (100~240V, 47/63Hz) power supplies. It operates energy-efficiently with a 35W power usage. Flexible and convenient management options are offered by EMS, WEB, SNMP, Telnet, and CLI, among other means of management.
Brand: VSOL
Title: Vsol V1600G0-B 4 Port GPON OLT
Model: V1600G0-B
Code: 2110921
Category: Networking
Sub Category: OLT
Sub-Sub Category:
Price: 99000
Offer Status: 0
Description:
Vsol V1600G0-B 4 Port GPON OLT
The Vsol V1600G0-B is a high-performance 4-port GPON OLT (Gigabit Passive Optical Network Optical Line Terminal) that provides effective communication in network situations. With two RJ45 (GE) and two SFP+ (10GE) GE/10GE uplink ports, this Vsol V1600G0-B 4 Port GPON OLT provides adaptable connectivity options for a range of network configurations. The efficient distribution of high-speed internet services to many users is made possible by the Vsol V1600G0-B 4 Port GPON OLT, which has 4 GPON ports with SFP slots and supports a maximum splitting ratio of < 1:128. For console management (G2-B model), the VSOL OLT has management ports such as one FE out-band port, one CONSOLE port, one USB 2.0 port, and one Type-C USB port. PON port specifications, which guarantee dependable and fast data transmission, include a transmission distance of 20 km, an upstream speed of 1.244Gbps, and a downstream speed of 2.488Gbps. Using TX 1490nm and RX 1310nm wavelengths with SC/UPC connections and 9/125μm SMF fiber type, the Vsol V1600G0-B 4 Port GPON OLT offers Class B+, C, C+, C++, and C+++ PON module levels. The OLT has two power modules that are hot backup for increased reliability. It supports both DC (-48V) and AC (100~240V, 47/63Hz) power supplies. It operates energy-efficiently with a 35W power usage. Flexible and convenient management options are offered by EMS, WEB, SNMP, Telnet, and CLI, among other means of management.
