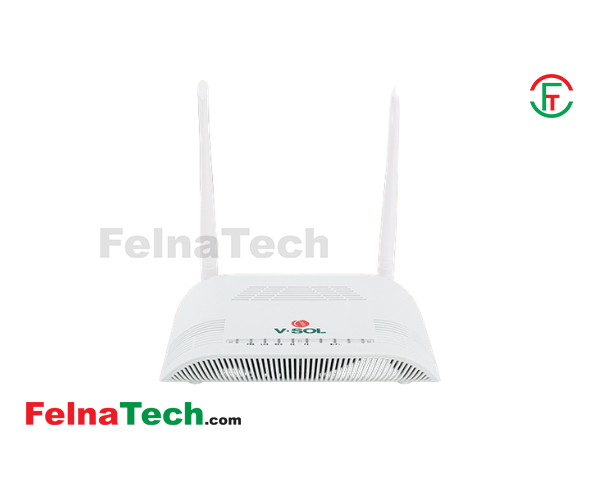

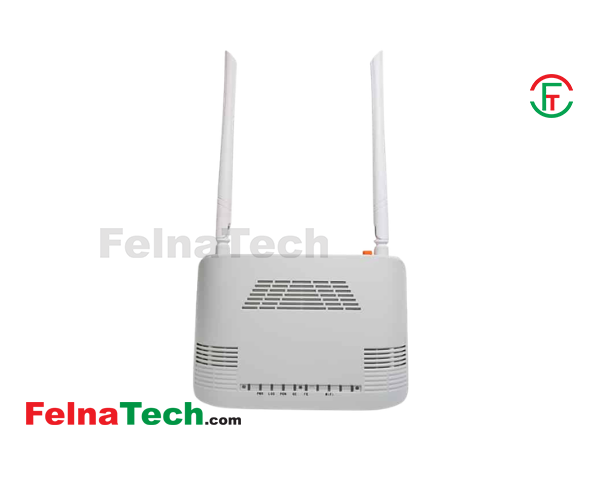

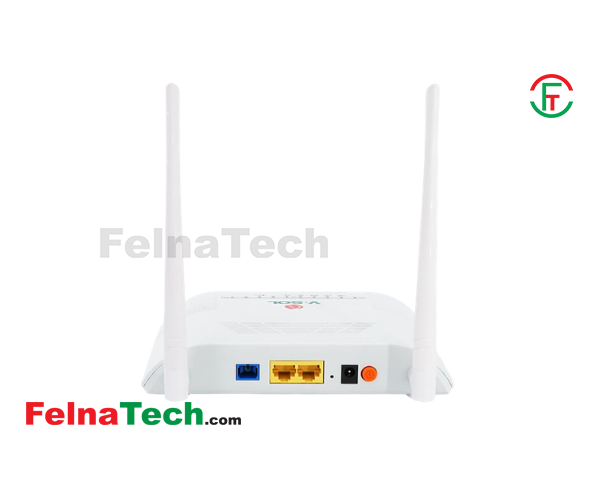

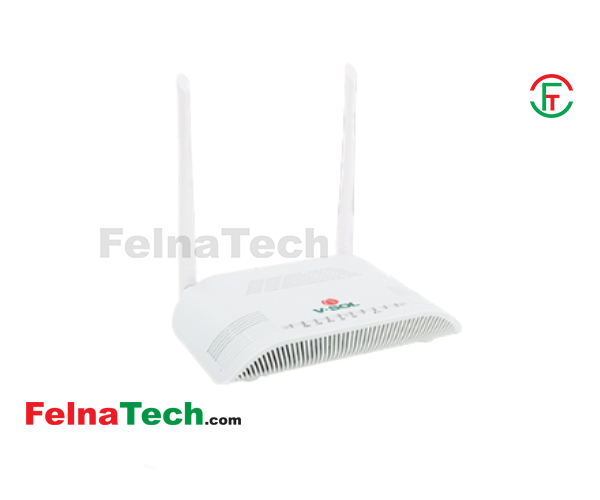

VSOL V2802GW XPON 1GE+1FE Wi-Fi 4 ONT ONU Router

Brand: WiFi Router / VSOL

Title: VSOL V2802GW XPON 1GE+1FE Wi-Fi 4 ONT ONU Router

Model: V2802GW-

Code: 216246506

Category: Networking / Router / VSOL

Product Type: Networking

Price: 2300

Warranty: 2

Availability: Available/In Stock

Description:

VSOL V2802GW XPON 1GE+1FE Wi-Fi 4 ONT ONU Router

Technical Specifications

Model: V2802GW
Chipset: High-performance Realtek XPON Chipset
PON Interface: 1 × XPON Port (GPON Class B+ / EPON PX20+ Auto Adaptive)
LAN Interface: * 1 × 10/100/1000 Mbps Gigabit Ethernet Port (LAN1 / Supports WAN Mode)
  1 × 10/100 Mbps Fast Ethernet Port
Wireless Speed: Up to 300 Mbps (2.4 GHz Band, 2T2R MIMO)
Antenna Type: 2 × External 5dBi High-Gain Antennas
Client Capacity: Connects up to 16–32 devices (Supports Multiple SSID & SSID Conceal)
VLAN Support: 4K VLAN, 802.1Q, 802.1p CoS, 802.1ad (QinQ), Trunk, and Translation Mode
LED Status Indicators: Power, PON, LOS, GE, FE, Wi-Fi

Physical Specs:

White ABS Plastic Body
Weight: ~240g
Dimensions: 185 × 120 × 34 mm

Power Supply: DC 12V/1A (Power consumption $\le$ 7W)

Warranty: 02-Year Official Manufacturer Warranty

Key Features & Benefits:

XPON Dual Mode (GPON/EPON): Smart auto-detection seamlessly adapts to both GPON (ITU-T G.984) and EPON (IEEE 802.3ah) OLT networks, integrating flawlessly with Huawei, ZTE, FiberHome, and VSOL OLT systems.

Dual Ethernet Ports (1GE + 1FE): Offers a dedicated 10/100/1000 Mbps Gigabit port for high-speed primary devices (PCs, gaming consoles) alongside a 10/100 Mbps Fast Ethernet port perfect for secondary
systems like IPTV boxes or printers.

Integrated Wi-Fi 4 Connectivity: Broadcasts on the 2.4GHz frequency band with 2T2R MIMO technology, delivering stable wireless data transfer rates up to 300 Mbps.

Enhanced Coverage: Outfitted with 2 external 5dBi high-gain antennas to provide superior wall penetration and reliable coverage across standard indoor environments.

Flexible Operation Modes: Supports both Router Mode (PPPoE, DHCP, Static IP, NAT) and Bridge Mode for versatile networking setups.

IPTV & Multimedia Ready: Features IGMP Snooping (v1/v2/v3) and IGMP Proxy to ensure smooth, lag-free multicast streaming for digital IPTV services.

Advanced Security & Firewall: Protects your local network using WEP, WPA-PSK, WPA2-PSK encryption, MAC/URL filtering, Access Control Lists (ACL), and built-in anti-DDoS protection.

Dual-Stack Support: Native compatibility with both IPv4 and IPv6 networking protocols for future-proof connectivity.

Carrier-Grade Remote Management: Fully supports TR-069, OMCI, OAM, Web UI, and Telnet, allowing internet service providers to easily manage configuration, perform loop detection, and execute automated firmware updates.

The VSOL V2802GW is a high-performance, cost-effective, and robust XPON ONT/ONU Wireless Router tailored specifically for FTTH (Fiber to the Home) and triple-play deployments across Bangladesh.
Powered by a reliable Realtek chipset, this dual-mode device automatically detects and bridges GPON and EPON networks, giving Internet Service Providers (ISPs) operational flexibility and simplified inventory management.
Equipped with 1x Gigabit (1GE) LAN port, 1x Fast Ethernet (1FE) port, and external 5dBi high-gain Wi-Fi 4 antennas, the V2802GW delivers an all-in-one entry-level solution. It ensures a stable wireless experience alongside
flexible wired network partitioning, making it an ideal standalone gateway choice for residential homes, student messes, and SOHO (Small Office/Home Office) configurations.
