V-SOL V3700-12X 12-Port 10G Layer 3 Managed Ethernet Switch

Brand: Switch / VSOL

Title: V-SOL V3700-12X 12-Port 10G Layer 3 Managed Ethernet Switch

Model: V3700-12X

Code: 216346709

Category: Networking / Switch / VSOL

Product Type: Switch

Price: 36500

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V3700-12X 12-Port 10G Layer 3 Managed Ethernet Switch

Technical Specifications:

Model: V3700-12X

Form Factor: 1U 19-Inch Standard Rackmount Design

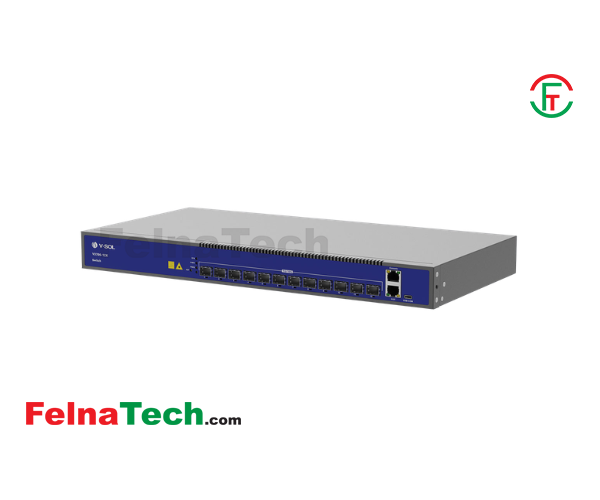

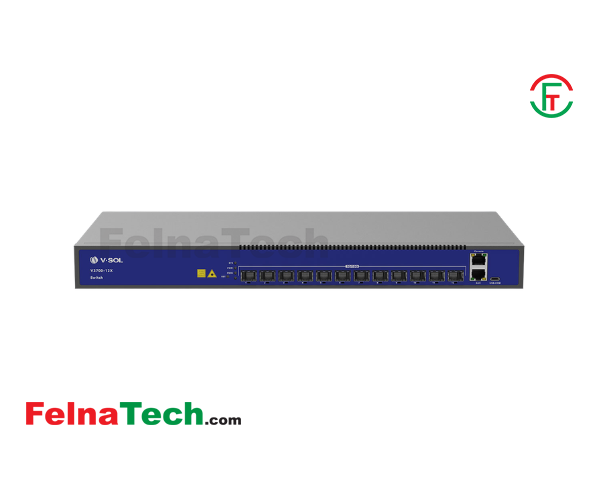

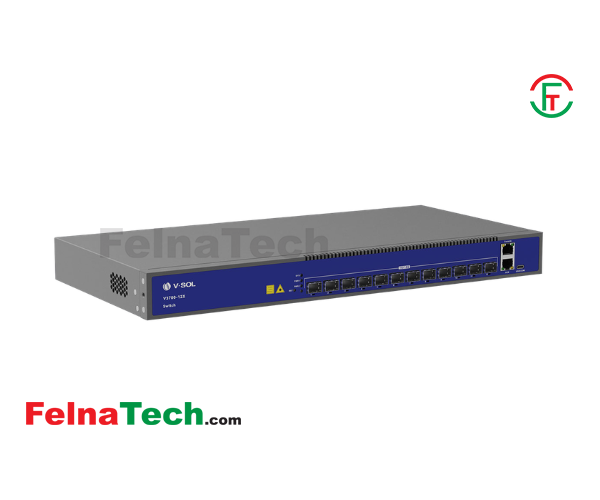

Fixed Ports: 12 × 10GE SFP+ Optical Slots (Backward compatible with 1G SFP)
Management Ports: 1 × Console Port, 1 × 10/100/1000BASE-T Out-of-Band Management Port
Switching Capacity: 240 Gbps Ultra-High Backplane Bandwidth
Packet Forwarding Rate: 178.56 Mpps
MAC Address Table: 32K Mac Address entries (Supports auto-learning and aging)
VLAN Features: 4K Active VLANs, Port-based VLAN, IEEE 802.1Q VLAN, QinQ, Voice VLAN
Layer 3 Routing Functions: Static Routing, Dynamic Routing (RIP v1/v2, OSPF v2, BGP v4), Policy-Based Routing (PBR), ARP Proxy
IPv6 Support: IPv6 Static Route, RIPng, OSPFv3, BGP4+, Dual-Stack IPv4/IPv6, IPv6 ACL, Neighbor Discovery (ND)
Multicast Features: IGMP Snooping v1/v2/v3, MLD Snooping v1/v2, PIM-SM, PIM-DM
Quality of Service (QoS): 8 Hardware Queues per port, SP, WRR, SP+WRR scheduling, Traffic Shaping, Rate Limiting
Reliability & Redundancy: STP/RSTP/MSTP, VRRP (Virtual Router Redundancy Protocol), LACP Link Aggregation (Up to 64 groups)
Security & Access Control: Standard/Extended ACL, IP-MAC-Port Binding, IEEE 802.1X Authentication, AAA/RADIUS, TACACS+, DDoS Protection, Storm Control
Management & Maintenance: CLI (Console, Telnet, SSH v1/v2), Web UI (HTTP/HTTPS), SNMP v1/v2/v3, RMON, LLDP, Syslog, Dual Flash Image

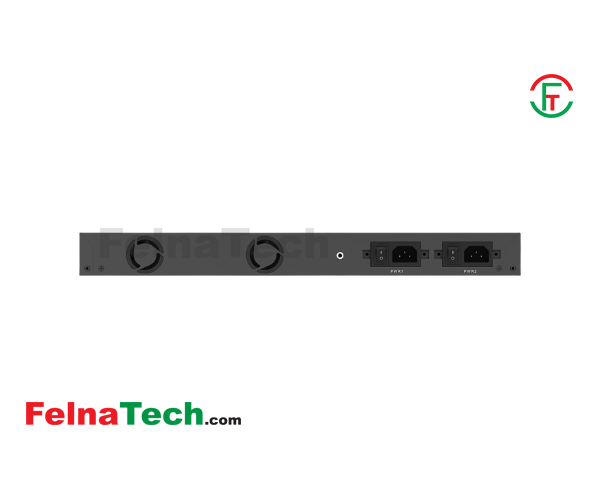

Power Supply: Dual Hot-swappable Redundant Power Supplies (Default 1AC Included, supports 2AC or 2*DC configuration) | AC: 100V–240V, 50/60Hz

Physical Specs: Dimensions: 440mm × 240mm × 44mm | Smart Fan Cooling | Low Power Consumption Architecture

Key Features:

Full 10G SFP+ Fiber Ports for High-Density Core Networking:
The V-SOL V3700-12X comes equipped with 12 dedicated 10 Gigabit SFP+ optical slots. This line-rate 10G density makes it an exceptional choice as a core switch for medium-sized networks or an aggregation switch for larger enterprises and internet service providers across Bangladesh.

Non-Blocking Wire-Speed Performance:
With a massive 240 Gbps switching capacity and a blazing-fast packet forwarding rate of 178.56 Mpps, this switch handles data-heavy enterprise operations effortlessly. It eliminates local network bottlenecks, ensuring ultra-low latency for VoIP, data replication, and high-frequency business applications.

Advanced Layer 3 Routing (OSPF, BGP & PBR):
Engineered for complex network architectures, the V3700-12X moves far beyond basic access switches. It natively supports high-end Layer 3 dynamic routing protocols including OSPF v2, BGP v4, and RIP, alongside Policy-Based Routing (PBR). This allows ISPs and corporate IT teams to manage subnets and route data traffic with total control.

Dual-Stack IPv4/IPv6 & Future-Proof Readiness:
As networks across Bangladesh transition to next-generation internet protocols, this switch offers comprehensive dual-stack IPv4/IPv6 hardware processing. It supports IPv6 static routing, OSPFv3, BGP4+, and IPv6 ACLs, keeping your system fully future-proof and compatible with global network standards.

Carrier-Class Hardware & Power Redundancy:
Network downtime is not an option. The V3700-12X is designed with dual hot-swappable modular power supply slots. Supporting flexible configurations (Dual AC or DC setups) along with hardware VRRP and link aggregation (LACP), it ensures seamless failover protection during local grid power cuts.

Granular Security & Network Protection:
Keep unauthorized users out and critical data safe. This managed switch features a robust security framework, including IP-MAC-Port Binding, IEEE 802.1X authentication, hardware-based Access Control Lists (ACL), and advanced defense against DDoS, ARP spoofing, and broadcast storms.

Effortless Remote Management & Telemetry:
Network administrators can easily configure and monitor the device using standard Command Line Interface (CLI via SSH/Telnet), an intuitive user-friendly Web Graphical Interface (Web UI), or industry-standard SNMP (v1/v2/v3). It simplifies remote debugging, automated firmware upgrades, and centralized network oversight.

The V-SOL V3700-12X is an elite, high-density 12-Port 10G Layer 3 Managed Ethernet Switch designed to serve as the ultra-fast core or aggregation backbone for modern FTTH networks, data centers, and enterprise corporate environments
in Bangladesh. Purpose-built for localized internet service providers (ISPs), regional network operators, and demanding corporate server rooms, this premium 1U rackmount switch provides unmatched bandwidth density and intelligent data
handling at a highly competitive cost.

Featuring 12 high-speed 10GE SFP+ ports, the V3700-12X delivers an incredible 240 Gbps switching fabric, ensuring zero-bottleneck performance for high-bandwidth applications like seamless IPTV streaming, heavy cloud computing, and
low-latency gaming. What truly sets this switch apart is its advanced enterprise-grade Layer 3 routing engine—supporting dynamic protocols like OSPF, BGP, and Policy-Based Routing (PBR)—alongside full native IPv4/IPv6 dual-stack
management. Backed by hot-swappable dual redundant power options to combat unexpected power outages and deep security integration (ACL/802.1X), the VSOL V3700-12X is the ultimate future-ready backbone solution for Bangladeshi network
engineers demanding maximum fiber optimization, flawless stability, and elite line-rate speeds.
