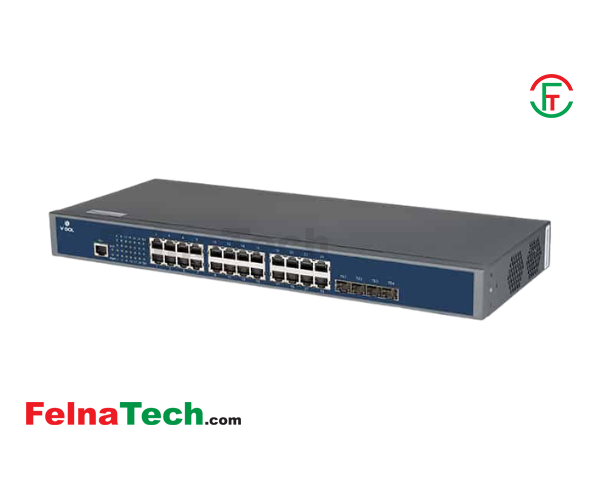

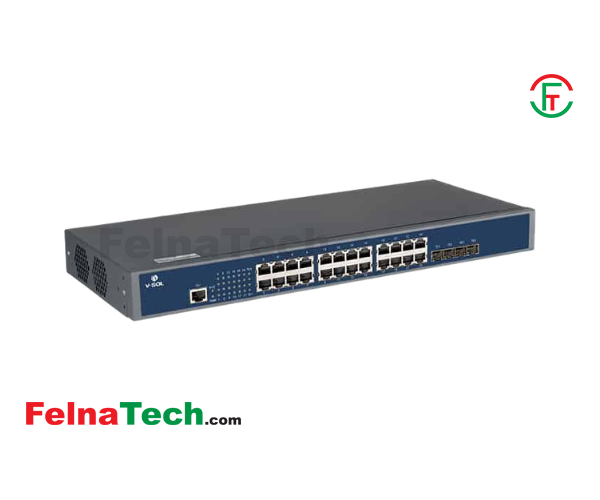

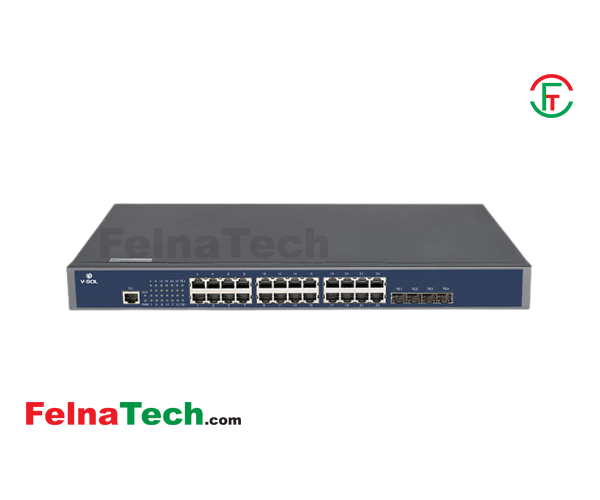

V-SOL V3528E 24-Port Gigabit Layer 2 Managed Switch

Brand: Switch / VSOL

Title: V-SOL V3528E 24-Port Gigabit Layer 2 Managed Switch

Model: V3528E

Code: 216346706

Category: Networking / Switch / VSOL

Product Type: Switch

Price: 24700

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V3528E 24-Port Gigabit Layer 2 Managed Switch

Technical Specifications:

Model: V3528E

Form Factor: 1U 19-Inch Standard Rackmount Design
Fixed Ports: * 24 × 10/100/1000 Mbps RJ45 Ethernet Ports
4 × 10GE SFP+ Optical Uplink Slots
Management Ports: 1 × Console Port, 1 × Reset Button
Switching Capacity: 128 Gbps (Non-blocking wirespeed switching)
Packet Forwarding Rate: 95.232 Mpps
MAC Address Table: 16K MAC Address entries (Auto-learning and auto-aging)
VLAN Features: Supports up to 4K VLANs, Port-based VLAN, 802.1Q Tag VLAN, QinQ (VLAN Stacking), Voice VLAN, GVRP
Link Aggregation: Up to 8 aggregation groups (with up to 8 ports per group), LACP (802.3ad) Dynamic and Static Link Aggregation
Spanning Tree Protocol: IEEE 802.1D STP, 802.1w RSTP, 802.1s MSTP, BPDU Guard, Root Guard
Multicast (IPTV Ready): IGMP Snooping v1/v2/v3, MLD Snooping v1/v2, Fast Leave, Multicast VLAN Registration (MVR)
Quality of Service (QoS): 8 queues per port, SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR, Flow-based QoS, Rate Limiting (Ingress/Egress)
Security & Access Control: Access Control List (ACL) L2/L3/L4, Port Isolation, Storm Control (Broadcast, Multicast, Unknown Unicast), Port Security, IP-MAC-Port Binding, DHCP Snooping, 802.1X Authentication, AAA (Radius, Tacacs+)
Management Modes: Web UI (HTTP/HTTPS), CLI (Console/Telnet/SSH v2), SNMP v1/v2c/v3, RMON, Syslog, Dual Image Configuration, LLDP
Power Supply: Built-in Universal Industrial Power Supply (AC 100V~240V, 50/60Hz)

Physical Specs: Standard 1U Rack Width | High-efficiency Smart Fan Cooling

Key Features:

High-Density Gigabit Access with Future-Proof 10G Uplinks:
The V-SOL V3528E comes equipped with 24 dedicated Gigabit Ethernet RJ45 ports to accommodate enterprise local area networks (LANs) and local ISP distribution blocks. To completely eliminate uplink bottlenecks, it features 4 ultra-fast 10G SFP+ optical slots, allowing for high-bandwidth core network connection rings and massive server room trunking.

Uncompromising Non-Blocking Performance:
Engineered with a robust 128 Gbps switching capacity and a blazing packet forwarding rate of 95.232 Mpps, this Layer 2 managed switch processes traffic smoothly without dropping packets. It is an ideal infrastructure backbone for heavy data transfers, corporate data centers, and multi-tenant building architectures in Bangladesh.

Superior Traffic Isolation & Advanced VLAN Management:
Maintain absolute network order with advanced VLAN capabilities, including standard 802.1Q Tagging, Port-based VLANs, and QinQ (VLAN stacking). QinQ allows local internet service providers to cleanly separate and isolate different corporate clients or residential zones across the city, reducing broadcast storm vulnerabilities.

Carrier-Grade Redundancy & Loop Prevention:
Keep your commercial networks online 24/7 with comprehensive loop mitigation protocols. The V3528E seamlessly deploys STP, RSTP, and MSTP to create redundant link pathways. With integrated BPDU Guard and Root Guard, it self-heals and prevents network loops from accidentally crashing your entire distribution layer.

Optimized for Smooth IPTV & Multicast Streaming:
Deliver buffer-free digital entertainment services flawlessly. By incorporating smart IGMP Snooping v1/v2/v3 and Multicast VLAN Registration (MVR), the switch sends multicast television streams directly to the requesting client rather than flooding the entire network, saving invaluable fiber bandwidth.

Enterprise-Grade Defense System & Security:
Shield your enterprise infrastructure from malicious cyber attacks. This switch features robust L2/L3/L4 Access Control Lists (ACLs), DHCP Snooping to block rogue routers, IP-MAC-Port Binding, and advanced 802.1X/Radius network access authentication. Built-in Storm Control shields ports against unauthorized broadcast waves.

Simplified Management and Flexible Remote Configuration:
Reduce maintenance overhead with multi-mode configuration options. Network administrators can safely manage the hardware remotely or locally using a modern graphical Web UI, high-security SSH v2 Command Line Interface (CLI), Telnet, or automated SNMP v1/v2/v3 server platforms for real-time diagnostics and firmware tracking.

The V-SOL V3528E is a premium, enterprise-tier 24-Port Gigabit Layer 2 Managed Switch meticulously built to drive high-performance data distribution across corporate enterprises, government networks,
and expanding internet service providers (ISPs) in Bangladesh. Housed in a durable 1U rackmount chassis, this powerful switch is designed to handle demanding networking environments, making it the perfect choice for server rooms,
industrial parks, and high-density office buildings.

At its core, the V3528E pairs 24 high-speed 10/100/1000Mbps RJ45 ports with 4 dedicated 10G SFP+ uplink optical slots, unlocking high-speed paths to core routers or storage arrays.
It stands out by integrating an intelligent traffic handling system featuring 16K MAC address learning, robust QoS data prioritization, and comprehensive dynamic link aggregation (LACP).
Backed by carrier-grade security protections like DHCP Snooping and advanced hardware-based access control filters, the VSOL V3528E provides local IT professionals and network operators with an elite,
cost-efficient solution to scale bandwidth limits while maintaining flawless system security and low-latency throughput.
